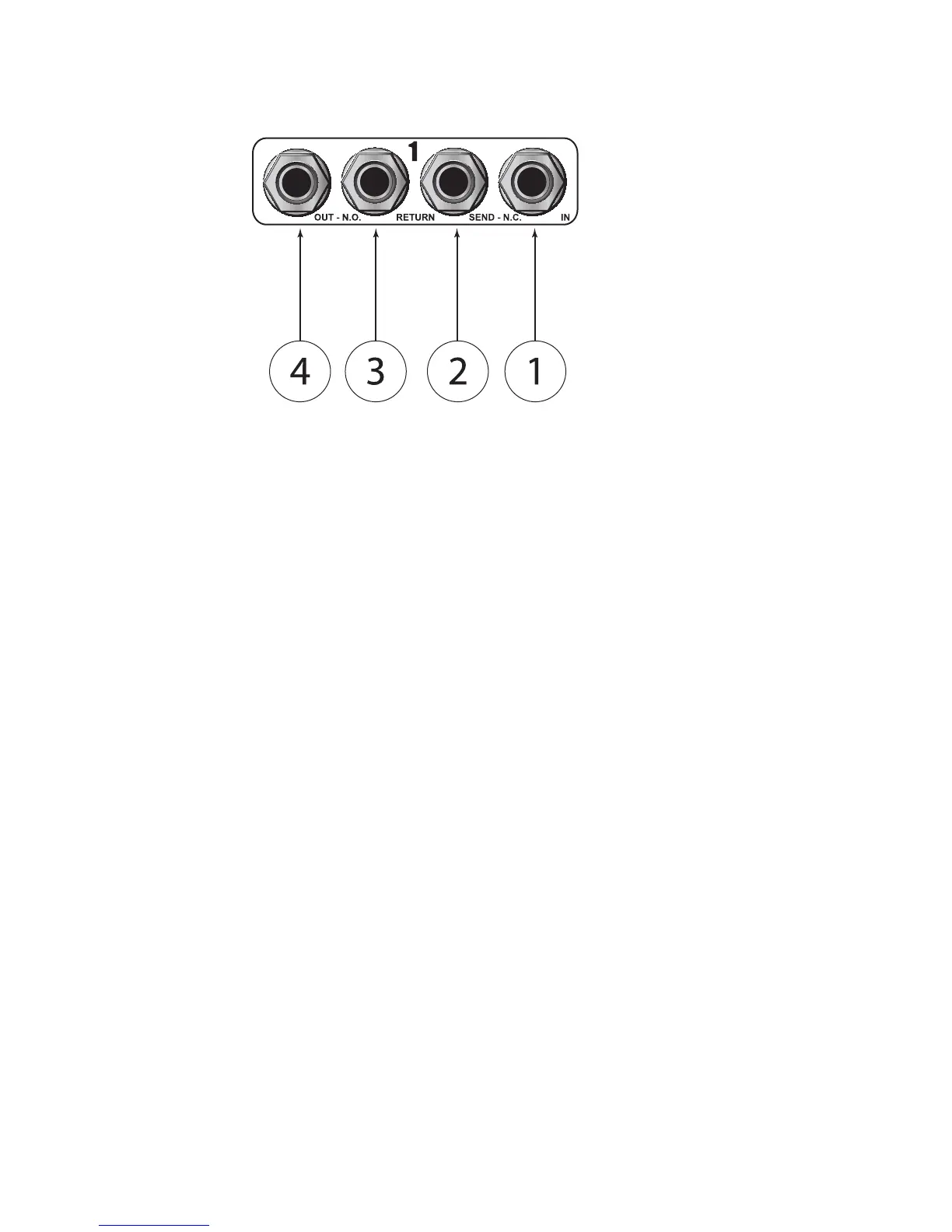

Individual LOOP Jacks Descriptions
1 IN Jack
This is the first jack in the signal chain. The audio signal will enter the "LOOP" through this
jack.
2 SEND - N.C. Jack
This jack is used to send the signal to the desired audio device.
3 RETURN Jack
This jack is used to receive the returned signal from the desired audio device..
4 O
UT - N.O. Jack
This jack is then used to send the signal to the next LOOP or next device in the signal chain.
