Rockwell Automation 1766-L32BWA Installation Instructions

MicroLogix 1400 Programmable Controllers 29
Publication 1766-IN001D-EN-P - June 2015

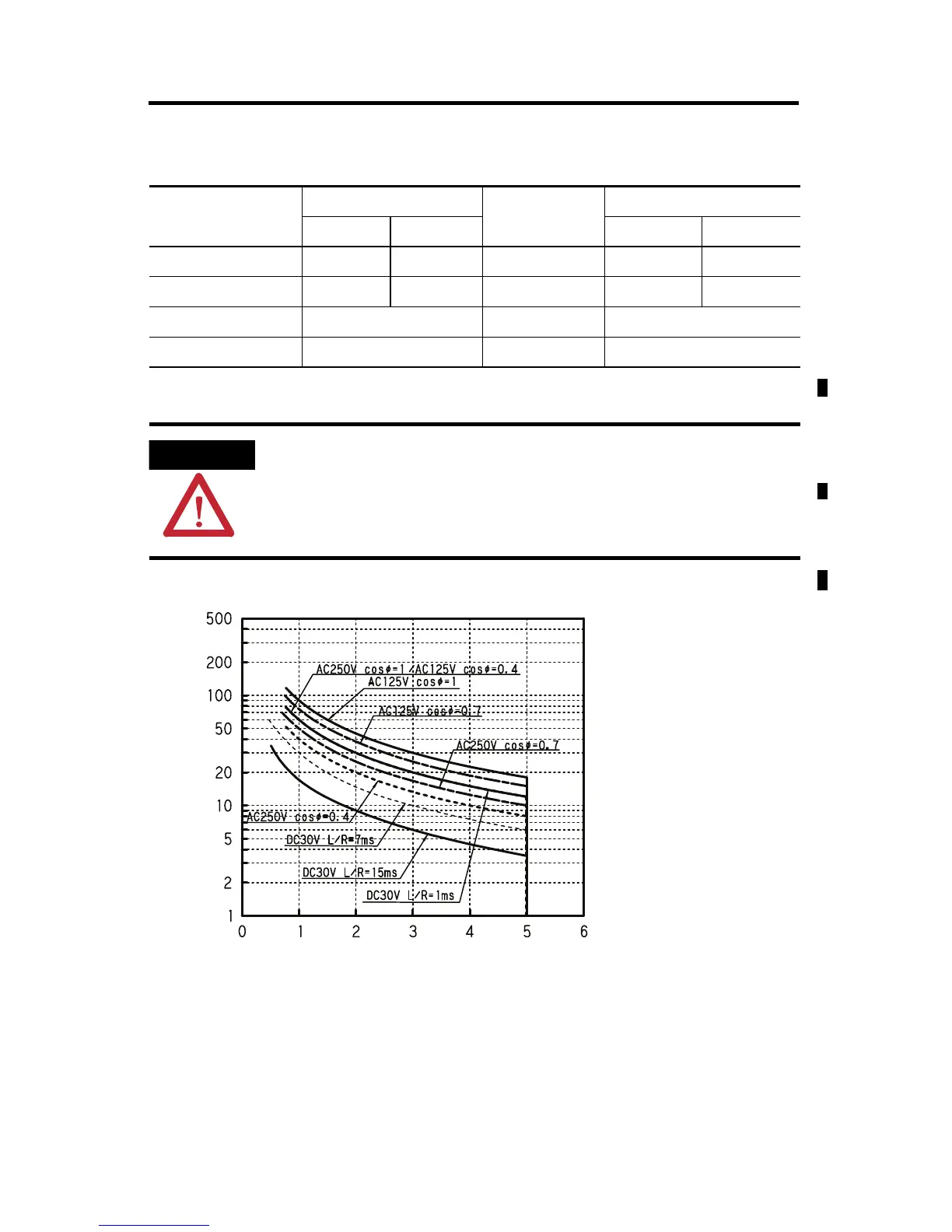

Relay Life Chart
Relay Contact Ratings
(1)
Maximum Volts Amperes Amperes
Continuous
Volt-Amperes
Make Break Make Break
240V AC 7.5 A 0.75 A 2.5 A 1800 VA 180 VA
120V AC 15.0 A 1.5 A 2.5 A 1800 VA 180 VA
250V DC 0.11 A 1.0 A 28 VA
125V DC 0.22 A 1.0 A 28 VA
(1)
Pilot Duty Rating (at Relay Contact Ratings): C300, R300.
ATTENTION
Do not exceed the “Current per group common” specification.
Number of operations (x 10
4
)
Switching capacity(A)
