8 Rockwell Automation Publication 2711R-IN001B-EN-P - September 2022
PanelView 800 HMI Terminals Installation Instructions
Mount the PanelView 800 Terminal in a Panel
Mounting levers secure the PanelView 800 terminal to the panel.
Follow these steps to mount the terminal in a panel.
1. Cut an opening in the panel using the template shipped with the terminal.
2. Make sure that the sealing gasket is properly positioned on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
3. Place the terminal in the panel cutout.
4. Insert all mounting levers into the mounting slots on the terminal.
Slide each lever until the short, flat side of lever touches the surface of the panel.
5. When all levers are in place, slide each lever an additional notch or two until you hear a click.
ATTENTION: Follow these guidelines when mounting the terminal in a panel.
• Disconnect all electrical power from the panel before making the panel cutout.
• Make sure that the area around the panel cutout is clear.
• Take precautions so metal cuttings do not enter any components that are already installed in
the panel.
• Failure to follow these instructions may result in personal injury or damage to panel
components.
WARN ING: If you connect or disconnect the serial cable with power applied to this module or
the serial device on the other end of the cable, an electrical arc can occur. This could cause an
explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
WARN ING: When used in a Class I, Division 2, hazardous location, this equipment must be
mounted in a suitable enclosure with proper wiring method that complies with the governing
electrical codes.
IMPORTANT The terminal temperature must be greater than 0 °C (32 °F) during panel
installation.

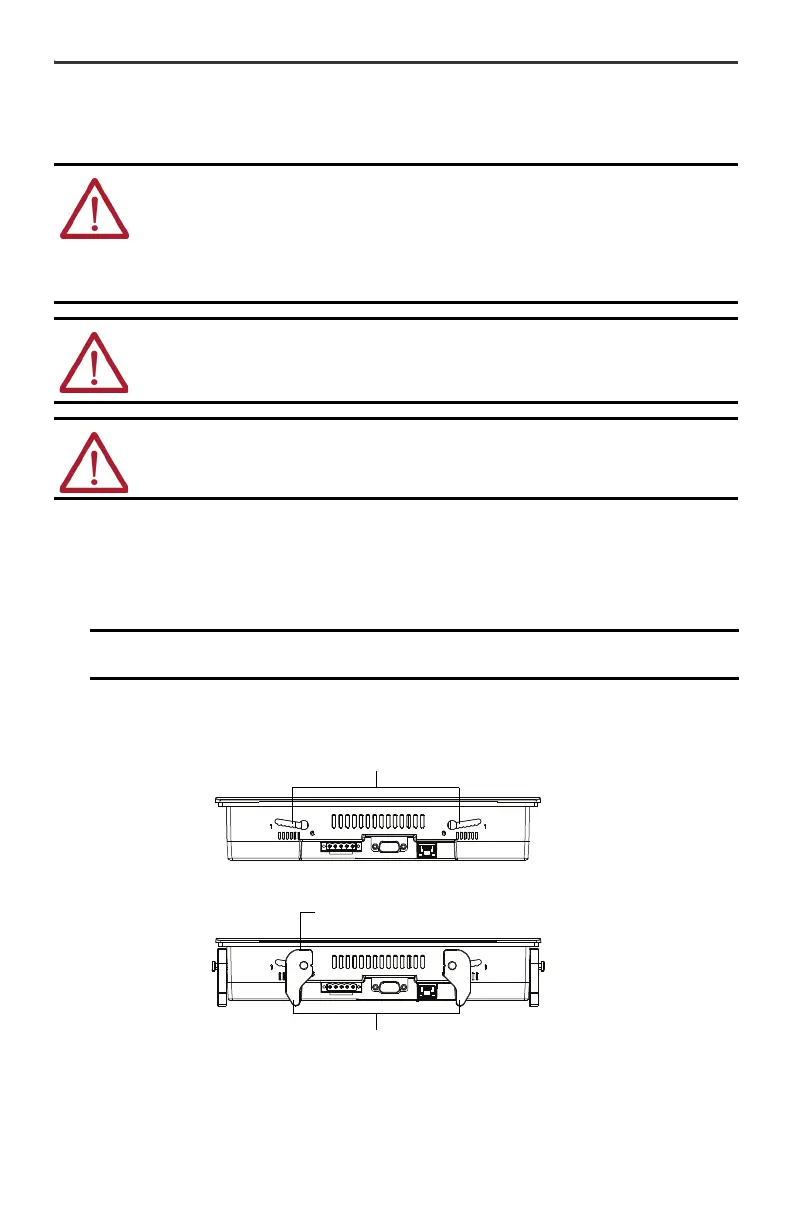

Mounting slots
Short, flat side of mounting lever
Mounting levers
