PowerFlex 400P Adjustable Frequency AC Drive Quick Start English-15

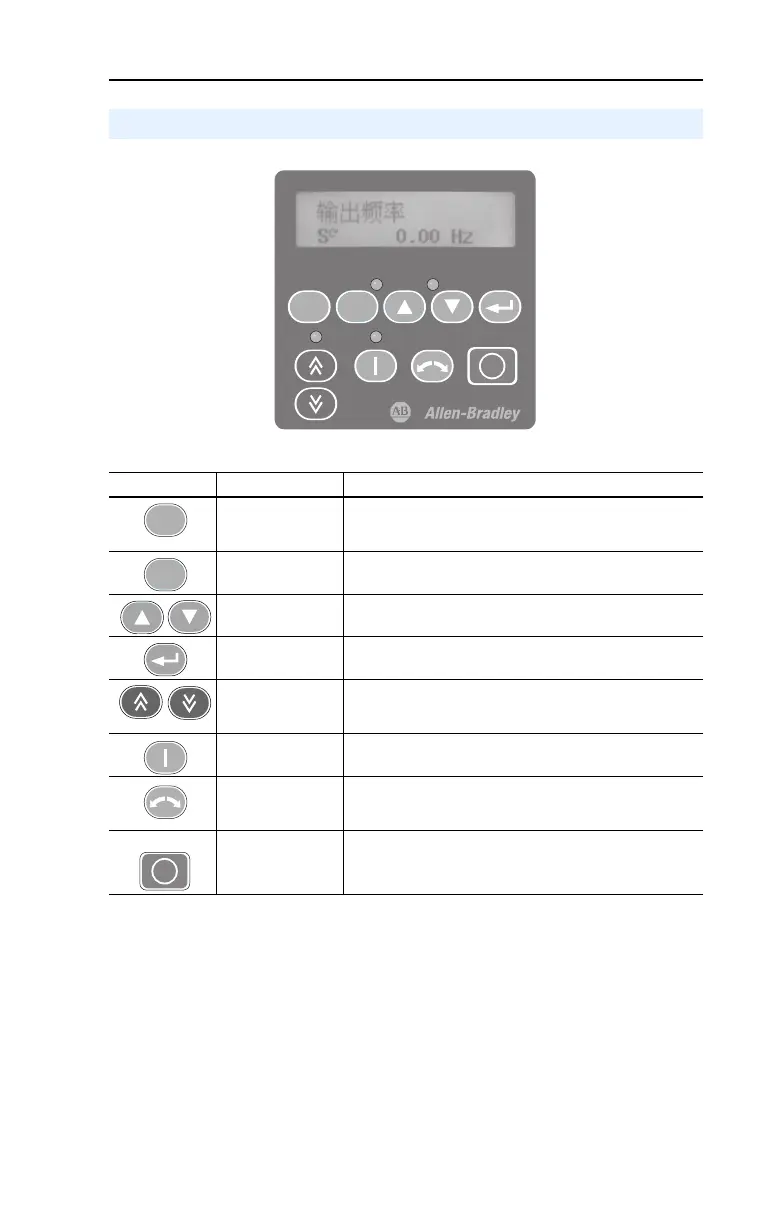

Operator Keys
Integral Keypad
ᬙ䱰
䗔ߎ
䗝ᢽ
Key Name Description
Escape Back one step in programming menu.
Cancel a change to a parameter value and exit Program
Mode.
Select Advance one step in programming menu.
Select a digit when viewing parameter value.
Up Arrow
Down Arrow
Scroll through groups and parameters.
Increase/decrease the value of a flashing digit.
Enter Advance one step in programming menu.
Save a change to a parameter value.
Digital Speed
Increment and
Decrement Arrows
Used to control speed of drive. Default is active.
Control is activated by parameter P038 [Speed Reference].
Start
(1)
Used to start the drive. Default is active.
Control is activated by parameter P036 [Start Source].
Reverse
(1)
Used to reverse direction of the drive. Default is active.
Controlled by parameters P036 [Start Source] and A166
[Reverse Disable].
Stop
Used to stop the drive or clear a fault.
This key is always active.
Controlled by parameter P037 [Stop Mode].
(1)
Important: Certain digital input settings can override drive operation. Refer to “Start and Speed
Reference Control” on page 1-29 of the User Manual for details.
䗔ߎ
䗝ᢽ
22P-QS001C-EN-P.fm Page 15 Thursday, March 30, 2017 5:55 PM
