50 Publication 2711P-UM001I-EN-P - December 2008
Chapter 3 Power Connections
Follow these steps to remove the terminal block.
1. Loosen the two screws that secure the terminal block.
2. Gently pull the terminal block away from the connector.
Follow these steps to install the terminal block.
1. Reattach the terminal block to the connector until seated.
2. Tighten the two screws that secure the terminal block to the
connector.

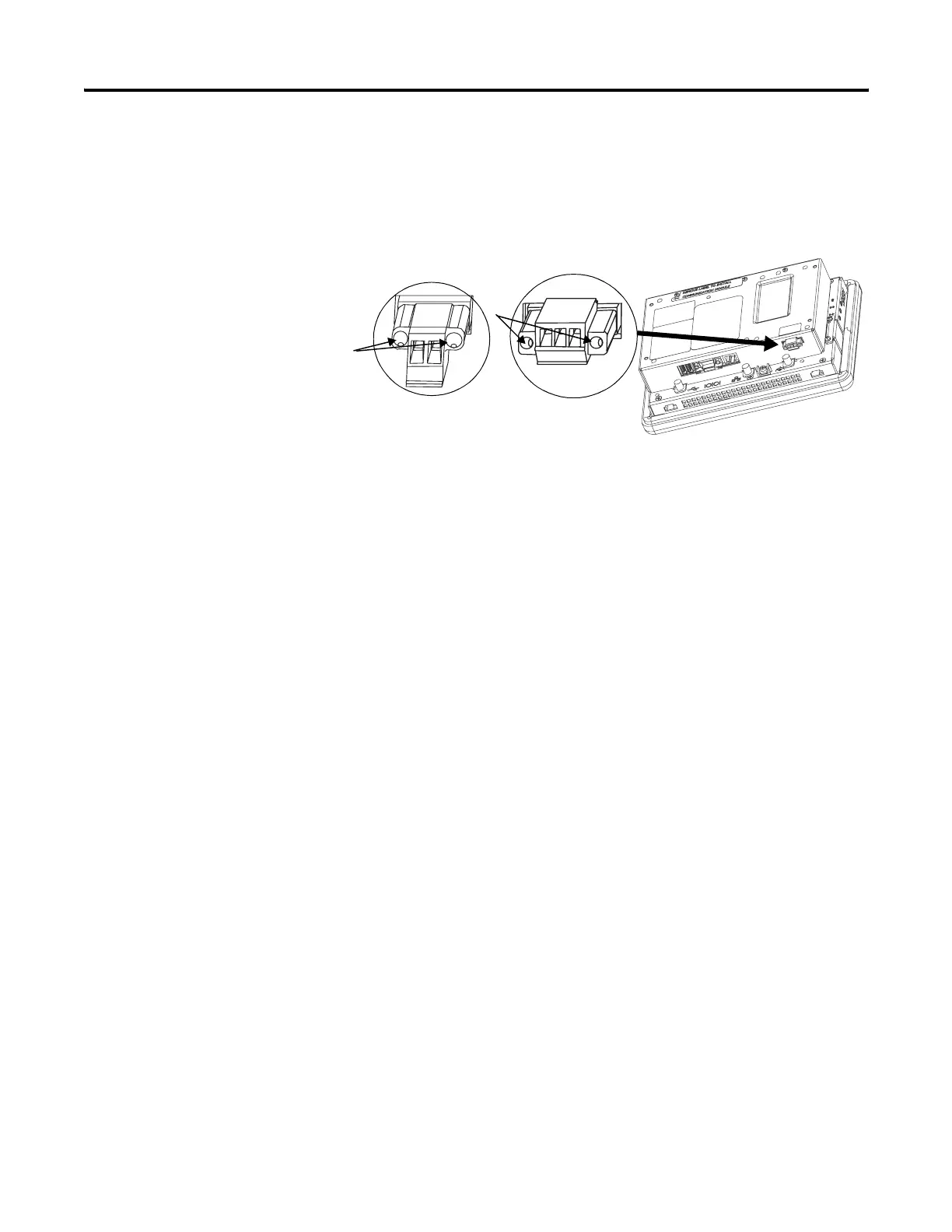

3-position AC or DC
Terminal Block
2-position DC Terminal
Block (Series E or later)
