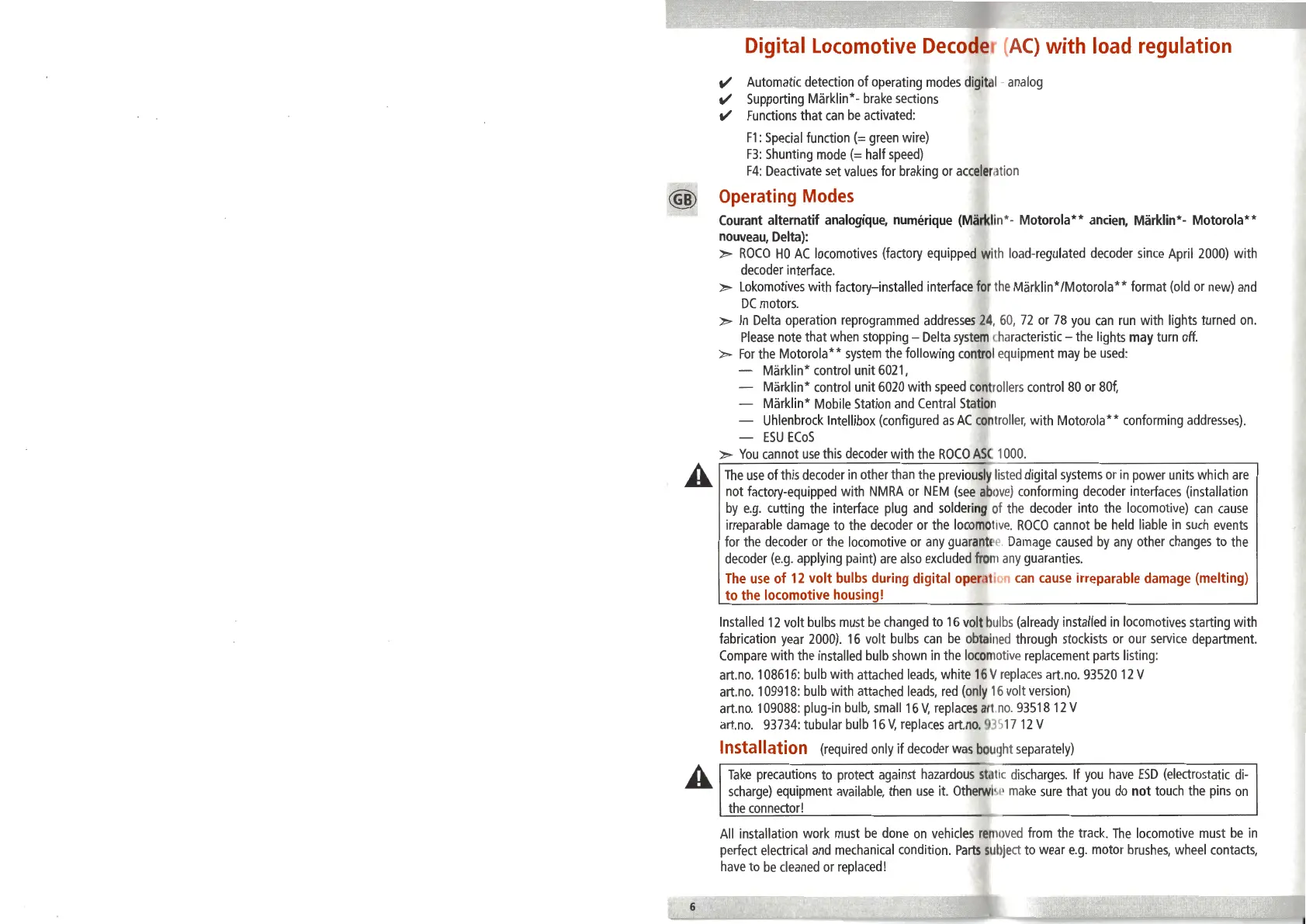

Digital locomotive Deco de r (A C) with Ioad regulation
V Automatie detection of operating modes digitc ll an alog
V Supporting Märklin *- brake sections
V Functions that can be activated:
F1: Special function (= green wire)
F3: Shunting mode (= half speed)
F4: Deactivate set values for braking or accel<'l ·llro n
@ Operating Modes
Courant alternatif analogique, numerique (Märklin*- Motorola** ancien, Märklin*- Motorola**
nouveau, Delta):
> ROCO HO AC locomotives (factory equipped wr th lo ad-regulated decoder since April 2000) with
decoder interface.
> Lokomotives with factory-installed interface for the Märklin*/Motorola** format (old or new) and
DC motors.
> ln Delta operation reprogrammed addresses 2'1 , 60 , 72 or 78 you can run with lights turned on.
Pieasenote that when stopping- Deltasystem r ha ra cteristic- the lights may turn oft.
> For the Motorola * * system the following contro l eq ui pment may be used:
Märklin * control unit 6021,
Märklin* control unit 6020 with speed cont r olle rs control 80 or 80f,
Märklin* Mobile Station and Central Statio n
Uhlenbrock lntellibox (configured as AC con trol le r, with Motorola** conforming addresses).
ESU ECoS
> You cannot use this decoder with the ROCO ASC 10 0 0.
A The use of this decoder in other than the previously lr-st_e _d _d-ig-it-al-s-ys-te_m_s_o_r_in-po_w_e_r_u_n-its_w_h_i_ch_a_r_e...,
not factory-equipped with NMRA or NEM (see ai )(J ve ) conforming decoder interfaces (installation
by e.g. cutting the interface plug and soldering of the decoder into the locomotive) can cause
irreparable darnage to the decoder or the locomo t rve. ROCO cannot be held liable in such events
for the decoder or the locomotive or any guarant l'P Da rnage caused by any other changes to the
decoder (e.g. applying paint) arealso excluded fro 111 a ny guaranties.
The use of 12 volt bulbs during digital op er. ll •• c an cause irreparable darnage (melting)
to the locomotive housing!
lnstalled 12 volt bulbs must be changed to 16 volt !J ulbs ( already installed in locomotives starting with
fabrication year 2000). 16 volt bulbs can be obtot i ned t hrough stockists or our service department.
Campare with the installed bulb shown in the locor n oti ve replacement parts listing:
art.no. 108616: bulb with attached Ieads, white 16 V re pl aces art.no. 93520 12 V
art.no. 109918: bulb with attached Ieads, red (only 16 volt version)
art.no. 109088: plug-in bulb, small16 V, replaces ,u l no . 9 3518 12 V
art.no. 93734: tubular bulb 16 V, replaces art.no . <) I) 17 12 V
Installation (required only if decoderwas b oll cJht s eparately)
- ---------------,
A Take precautions to protect against hazardous ~ t o~ trc dis charges. lf you have ESD (electrostatic di-
scharge) equipment available, then use it. Otherw r· .p ma ke sure that you do not tauch the pins on
the connector!
6
All installation work must be done on vehicles rPr n oved f rom the track. The locomotive must be in
perfect electrical and mechanical condition. Parts 'J i ti> ]Pct to wear e.g. motor brushes, wheel contacts,
have tobe cleaned or replaced!
