7. Short circuit and overload
If a short circuit or an overload occurs on the system, the
multi
MAUS
indicates this using two flashing symbols on the display screen: a streak
of lightning and the STOP symbol At the same time the voltage supply to
the system is shut off.
If there is a short circuit, e.g. because of a derailed coach or train, elimi
-
nate the fault.
Press the “STOP” key once to switch the system back on with a delay of
approximately one second.
If the fault is not a short circuit, the cause may be an overload of the system due to the operation of
several locomotives at a time. If this occurs frequently, the power supply to your system is insufficient.
Connect an additional booster (section 3 “THE 10765 BOOSTER”, page 55). You must not under any
circumstances use a normal transformer connected directly to the power supply as this will destroy
the
multi
MAUS and booster.
To program on the separate programming track, either connect a stretch of track which is electri-
cally isolated from the rest of the system to the track output on the booster or switch off the rest
of the system with a switch before programming.

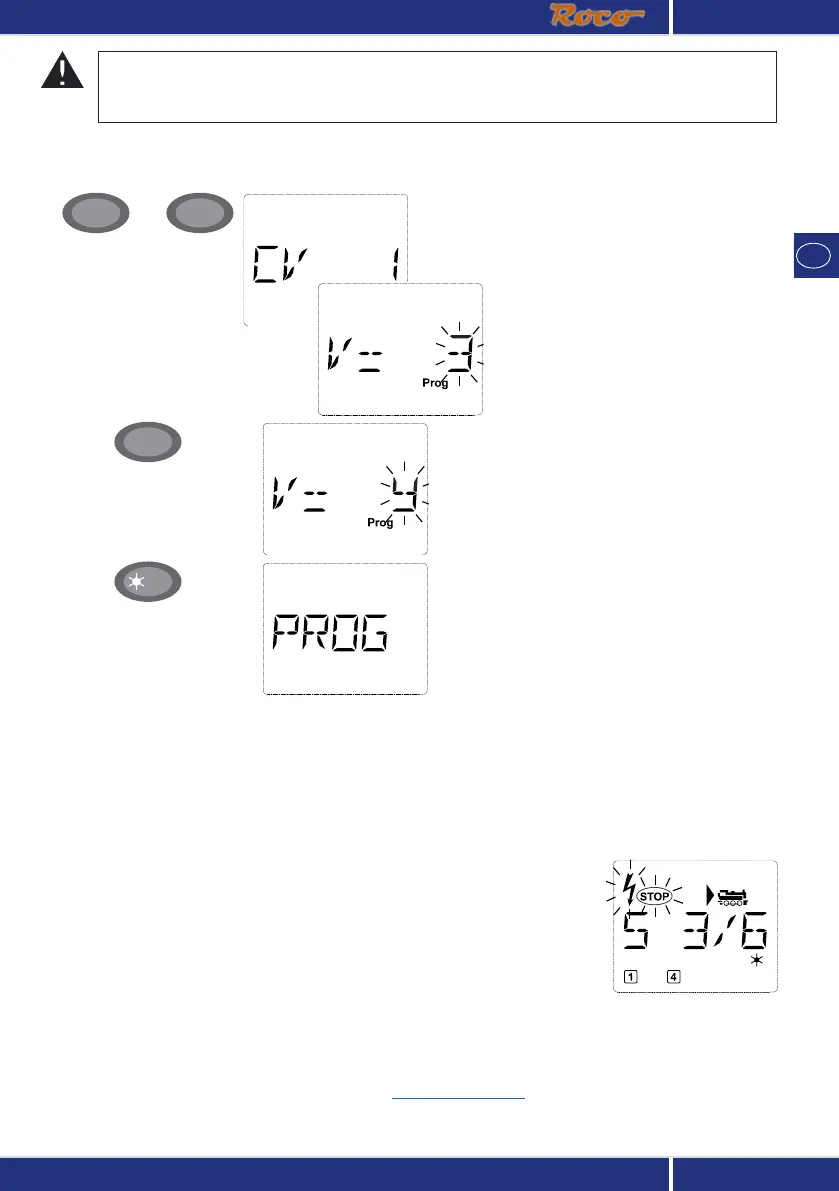

Example: To program the locomotive address = CV1 to value 4:
You can also program new values for CV 2, 3, 4 and 5 as shown in this example. To do so, you simply
press the “Menu” key together with the „function key“ with the number corresponding to the CV
and then proceed as in the above example.
If you set value “8” in CV8 (no other value can be entered), all the decoder’s CVs are reset to the
factory setting.
Confirm by pressing “OK”. After the last dis-
play “PROG” the
multi
MAUS returns to drive
mode.
Note: If you have changed CV1 for a locomo-
tive, check whether the specification of the loco-
motive’s address in the library matches.
The displayed fictitious suggested value is eas-
ily overwritten by pressing one of the “function
keys”. The cursor flashes.
Press the “MENU” key and “function key” 1
together.
The display screen briefly shows the selected CV
and then switches immediately to display the
fictitious suggested value.
+
MENU
1
OK
4 ghi
Input Display message Comment
