roco MultiMAUS User Manual

62
62

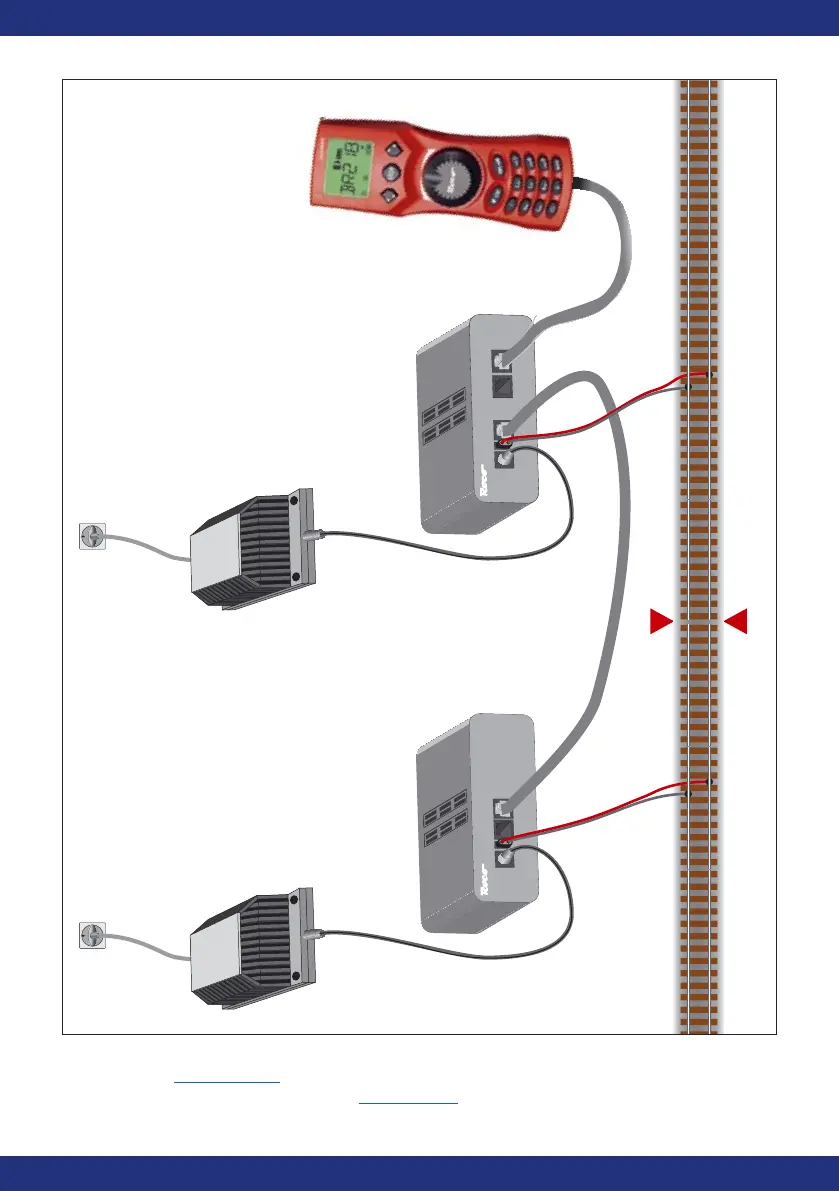

Anschluss eines Boosters 10765 an den Verstärker 10764 und die Gleisanlage.
Wiring diagram of the amplifier 10764, the booster 10765 and the tracks.
Comment câbler l‘amplificateur complémentaire réf. 10765 avec l‘amplificateur principal réf. 10764 et la voie.
Come collegare l‘amplificatore 10764, il booster 10765 e i binari.
Fig. 3
Track
out
Power
in
Booster
out
Slave
Master
Nur für trockene Räume,Keep dry
10764
Track
out
Power
in
Booster
out
Booster
in
Nur für trockene Räume,Keep dry
10765
Track
out
Power
in
Booster
out
Slave
Master
Nur für trockene Räume,Keep dry
10764
Track
out
Power
in
Booster
out
Booster
in
Nur für trockene Räume,Keep dry
10765



 

roco MultiMAUS Specifications

General

Control Protocol	DCC
Display	LCD
Speed Steps	14, 28, 128
Manufacturer	Roco
Category	Controller
Type	Handheld
Switching of turnouts and signals	Yes
Compatibility	DCC systems
Interface	XpressNet
Locomotive Control	9999 locomotive addresses
