No safety device in alarm state and no limit switch activated.
27
STOP contact (N.C.) open.
Jumper the STOP contact.
25
Sensing edge contact COS1 (N.C.) is open. Check connection. If sensing edge
is not installed, disable with 73 00.
24
Sensing edge contact COS2 (N.C.) is open. Check connection. If sensing edge
is not installed, disable with 74 00.
23
Photocell contact FT1 (N.C.) is open. Check connection. If photocell is not
installed, disable with 50 00.
22
Photocell contact FT2 (N.C.) is open. Check connection. If photocell is not
installed, disable with 53 00.
dATA
Incorrect travel length values / Parameter 71 modied: enabling absolute
encoder (only SMARTY Series).
• Disconnect from mains power or remove the main fuse (F3) and wait 5 seconds.
• Reconnect to mains power or ret the fuse.
• Press and hold PROG until the message ATA and A appear on the display.
Repeat acquisition procedure.
4. Before starting ...
d) Move the gate into the completely CLOSE position.
e) Press TEST button

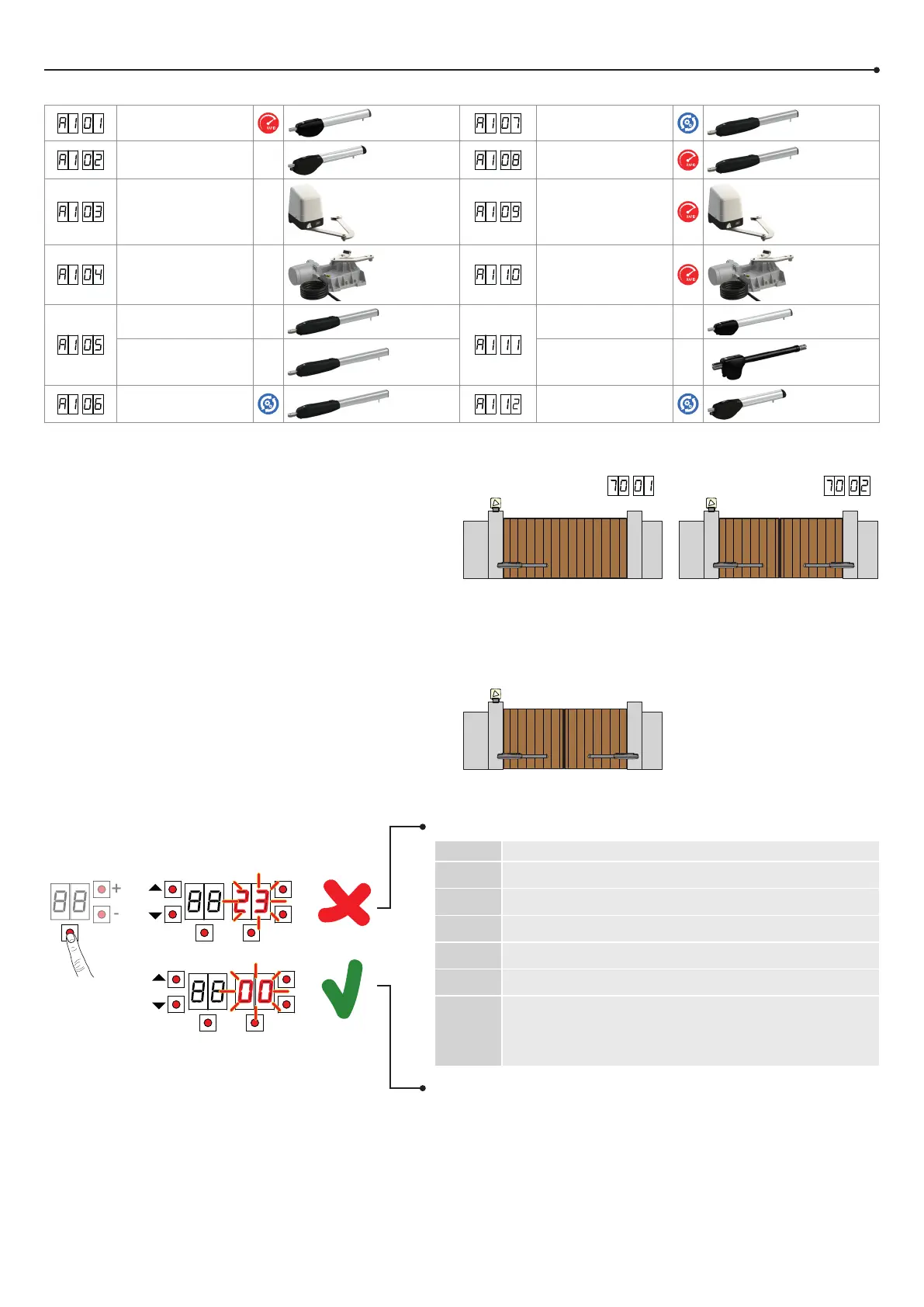

Possible alarms and safety device messages:
SEE ACQUISITION PROCEDURE
PROG TEST
+
-
+
-
a) Select the automation system model installed with the parameter A1.
b) Select the number of motors installed with the parameter 70.
This parameter is set for two motors by default.
c) Position the mechanical stops in both the open and closed positions by tightening them very tightly.
* the parameter 71 01 must be set and SMARTY/EMA installed for all applications with the SMARTY REVERSIBLE motor.
1 MOTOR 2 MOTORS
BE20/200/HS SMARTY 5R5 *
BR20 Series SMARTY 4HS
BH23/282 BH23/252/HS
BR21 Series BR21/351/HS
SMARTY 5 BE20/400
SMARTY 7 MONOS4
SMARTY 7R * BR20/400/R
