Figure 11: measure core current
The core current is measured with a current probe. But first remove resistors R201, R207, R208 and R209 on the backside of the
PCB. Insert a loop wire instead. The current probe can measure the current through the wire now.

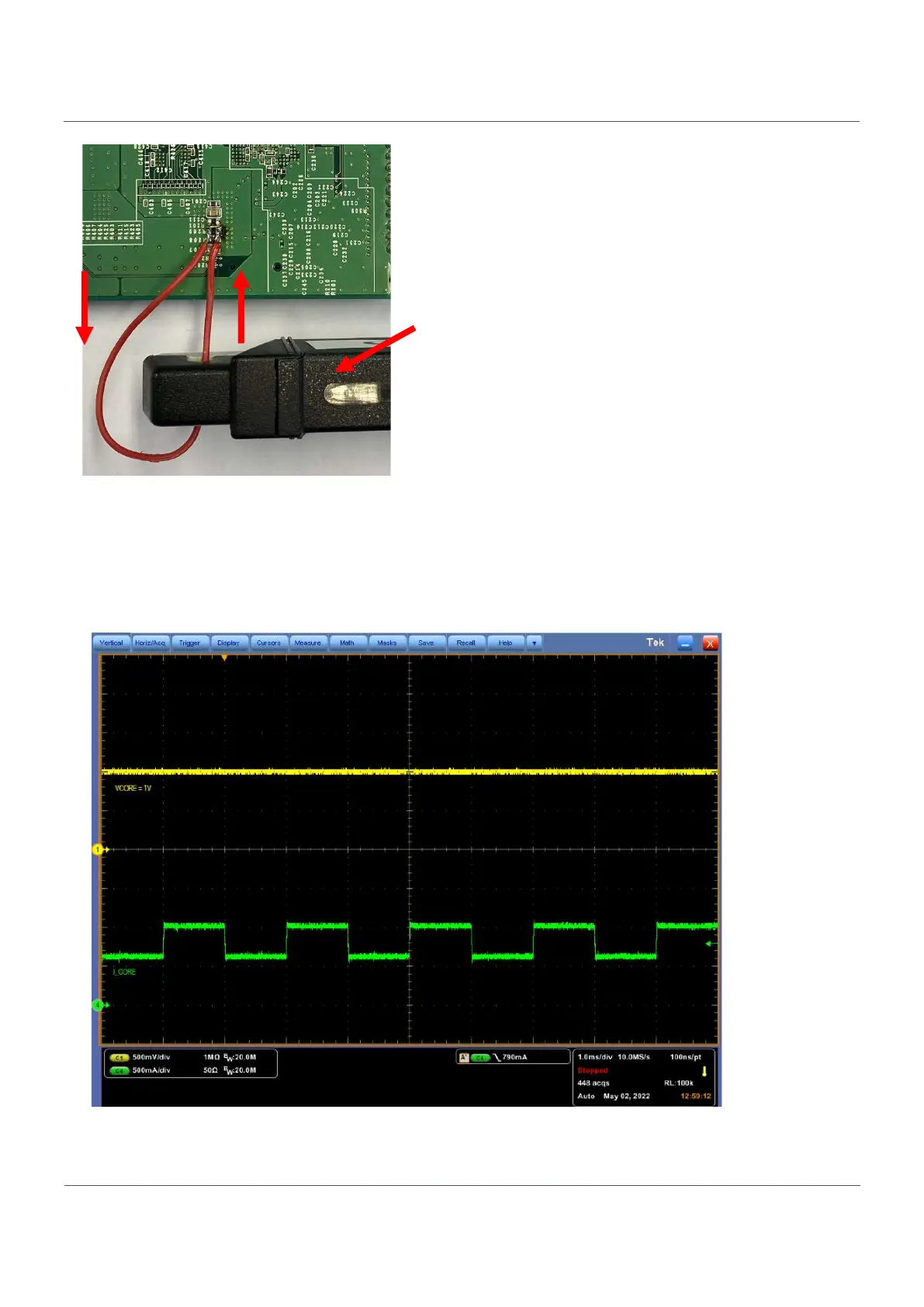

The result should look like the measurement below:
Figure 12: measuring core voltage and core current
current probe
