10
150 mm
100 mm 100 mm
540
mm
H C

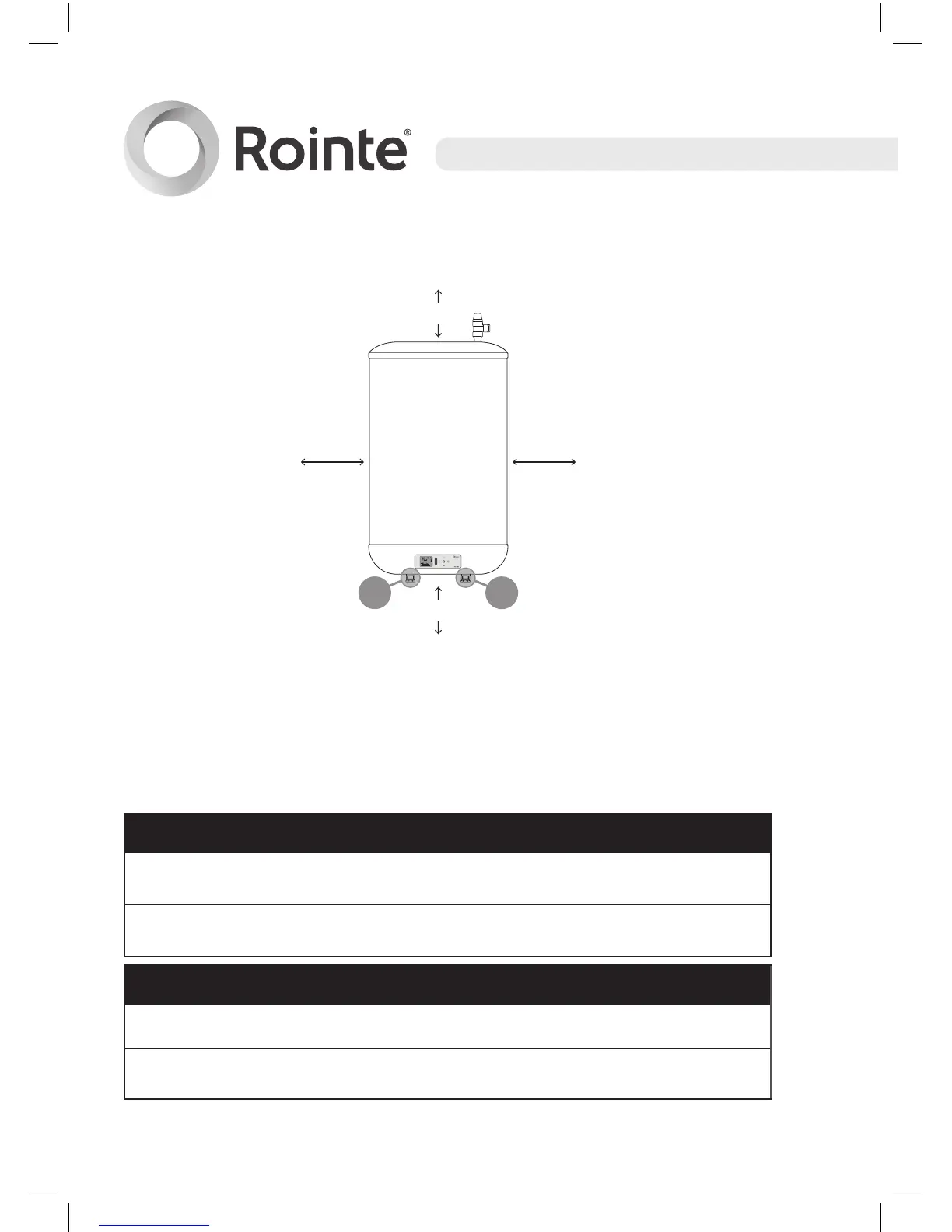

Figure 1 - Minimum margins for servicing and repairs.
The distance between holes for the wall mounting depends on the
model, see the following table for reference:
Model DWI050DHW2 DWI075DHW2 DWI100DHW2
Horizontal width between
holes
350 mm 350 mm 350 mm
Height between upper
and lower holes
340 mm 573
mm 768 mm
Model DWI150DHW2 DWI200DHW2
Horizontal width between holes 350 mm 350 mm
Height between upper and lower holes 595 mm 685
mm
