2.1. Mounting
The SYGMA radiator works by means of natural air convection (Figure
1). In order to achieve optimal functioning and an even distribution of
heat, the lower part of the radiator, once mounted on the wall, must
be at least 10 to 12 cm from the floor, and 30 cm at the most.
As for the sides and above, a minimum distance of between 10-12
cm must be left from any wall or brickwork in order for it to function
correctly (Figure 2).

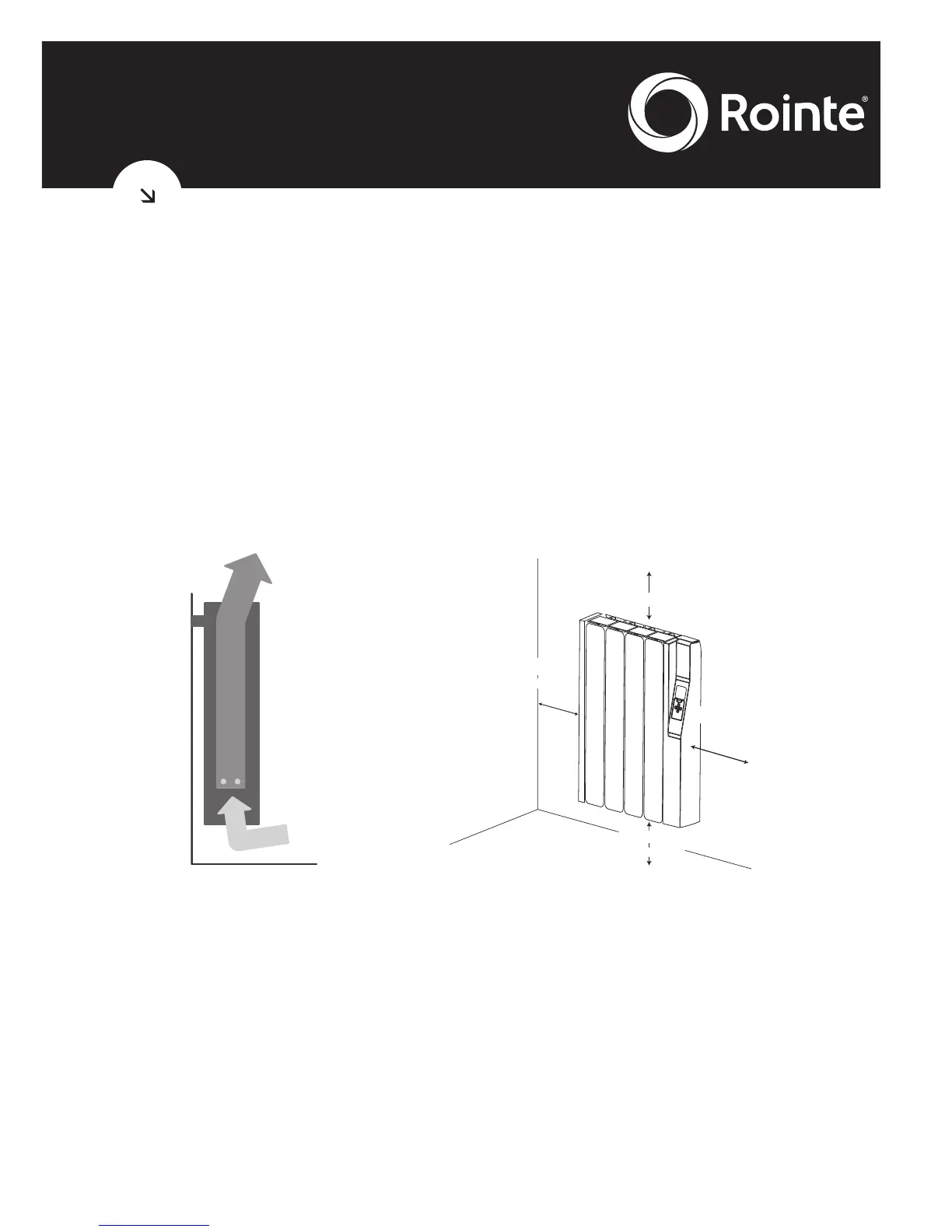

Fig. 1
Fig. 2
2.2. Fixing the supports
Inside the packaging you will find a fixing kit.
• Choose the right part of the wall.
• Place the mounting stencil on the wall, marking the places for the
holes.
