2.2 Setup procedure
CAUTION
Risk of electrical shock:
The power cord must be unplugged while the control unit is being commissioned. This
table is equipped with ROL iDrive system, to setup the controlling device proceed as
follows.

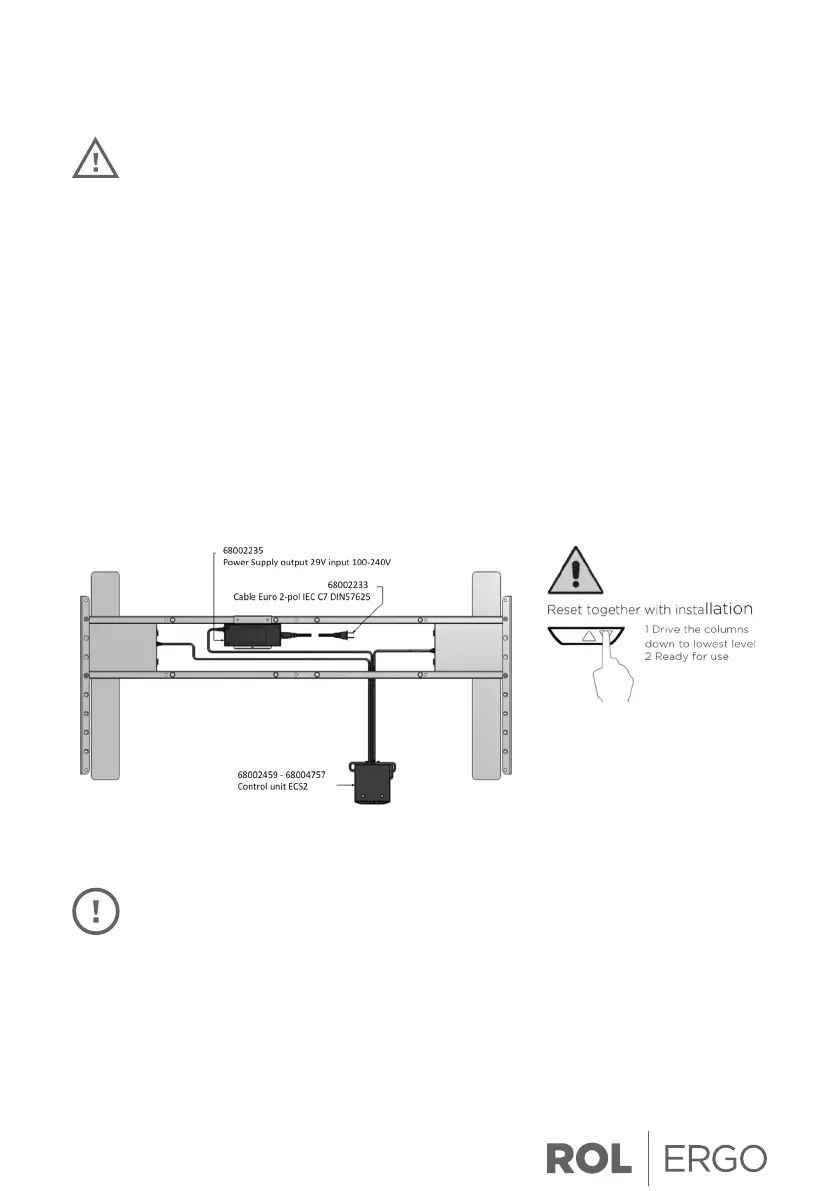

1. Connect the handset to the relevant 8-pin motor cables (2)
2. Connect the Power Supply to the handset. 5,5mm DC power
3. Connect the power supply to the main.
After a reset/homing the table is ready for use, connect the power cord to the outlet
please do a manual reset/homing as section 3.2 The initial reset drive the motors in a
slow speed.
2.3 Optional mounting guidelines
NOTICE
When components like Power Supply, motor cables or handset shall be disconnected, be
sure to unlock the 8pin connector on the cable properly! There is a fixing hook on this
connector that must be pressed.
