SITION CROSS BARS
• Re-adjust cross bars to a wider setting if
n
ecessary.
• 26-1/4” center to center – Minimum
• NOTE: It is recommended to use the
widest setting for optimum load
distribution. Refer to 59504
instructions for more information.
cross bar

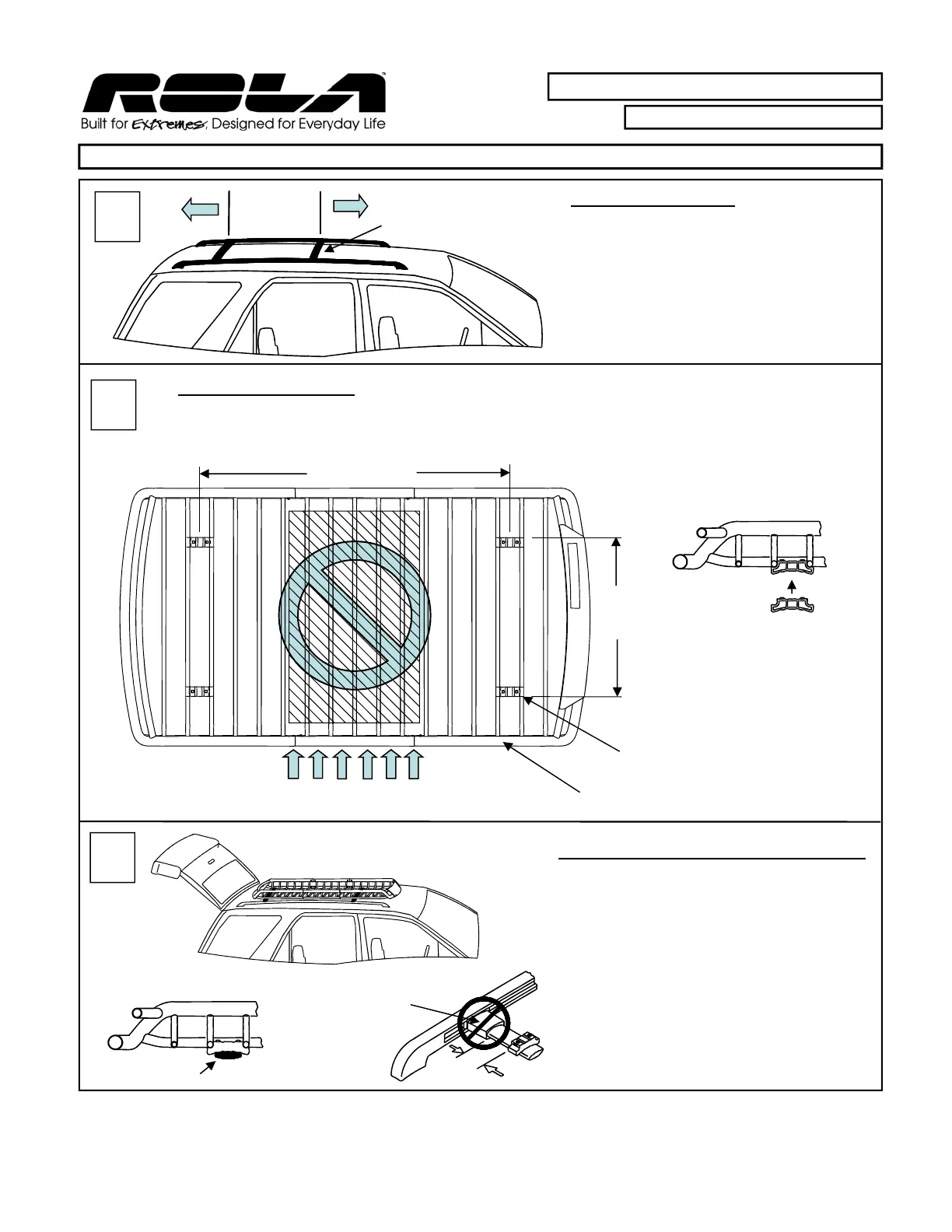

Please read all instructions carefully before assembly, installation and/or use of this product.
2
6-1/4”
MIN.
3
I
NSERT SPACER BLOCKS
• Reinstall the spacer blocks into cargo basket. N
OTE: Locate the spacer blocks in the widest position
possible. (The location of spacer blocks will depend on cross bar setting)
Attach mounting brackets to main basket sections only.
The spacer blocks
snap onto bars.
Tip: Use tape to hold
in place temporarily.
Do NOT attach mounting brackets in shaded area
25” MIN.
4
L
OAD BASKET ONTO VEHICLE CROSS BARS
• Center basket over vehicle’s cross bars.
•
Check and adjust cross bars so they are
centered on spacer blocks.
• Center spacer blocks 25” apart (min.) in cargo
basket (see diagram).
• DO NOT locate spacer blocks on top of cross
bar brackets (if applicable).
• Check clearance for vehicle’s hatch.
½”
Do not locate spacer
blocks on top of
cross bar brackets.
cross bar centered
MAIN BASKET SECTION
CAUTION: H
atch interference may be
unavoidable on some vehicles.
59505
Roof Top Carrier Extension
SPACER BLOCKS – 4 PLACES
48-3/4” REF.
To Next Page
