Rola VORTEX 59502 - Attach Center Section; Vehicle Mounting

PAGE 3 59502_IN Rev B • Questions? (800) 234-6992 • RolaProducts.com
ENGLISH
ASSEMBLY INSTRUCTIONS

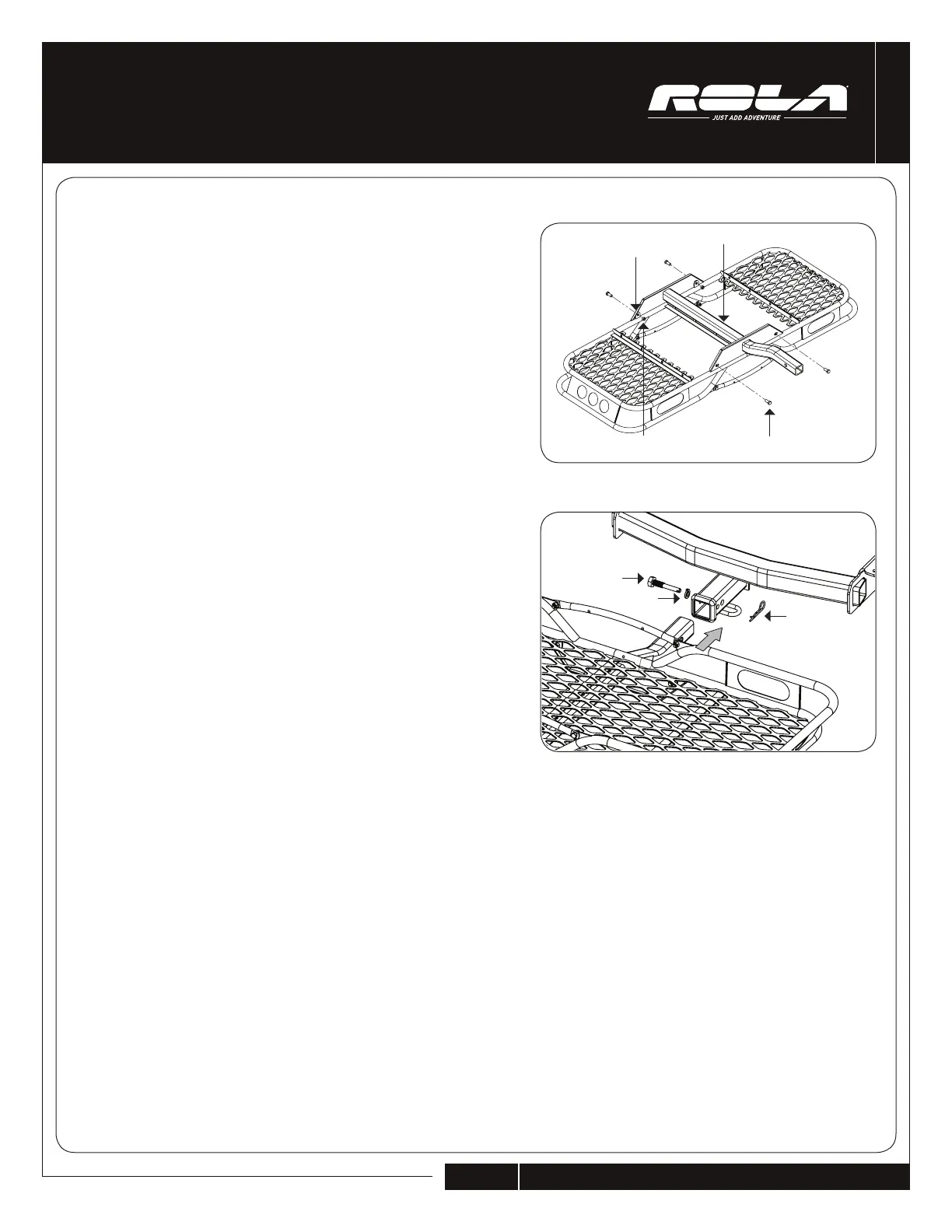

Vehicle Mounting Instructions
1. Receiver hitch uses anti-rattle pin, lock washer and clip as shown.
Insert pin from drivers side only. FIG 4. Tighten with supplied wrench.
Clip
4
5/8” Anti-rattle
Pin
Lock
Washer
3
Center Section Assembly
7/16 x 1” Hex Bolt
7/16 x 1” Hex Lock Nut
Mounting Tab
Attach Center Section To Cargo Basket
1. Place center section assembly onto the cargo basket, lining up the
four holes in center section with the holes in the four mounting tabs on
the cargo basket. FIG 3.
2. Install four, 7/16 hex bolts and lock nuts as shown.
3. Tighten all 7/16-14 GR5 bolts to 55 ft–lb.
