3
CUBE-15XLSep. 2010

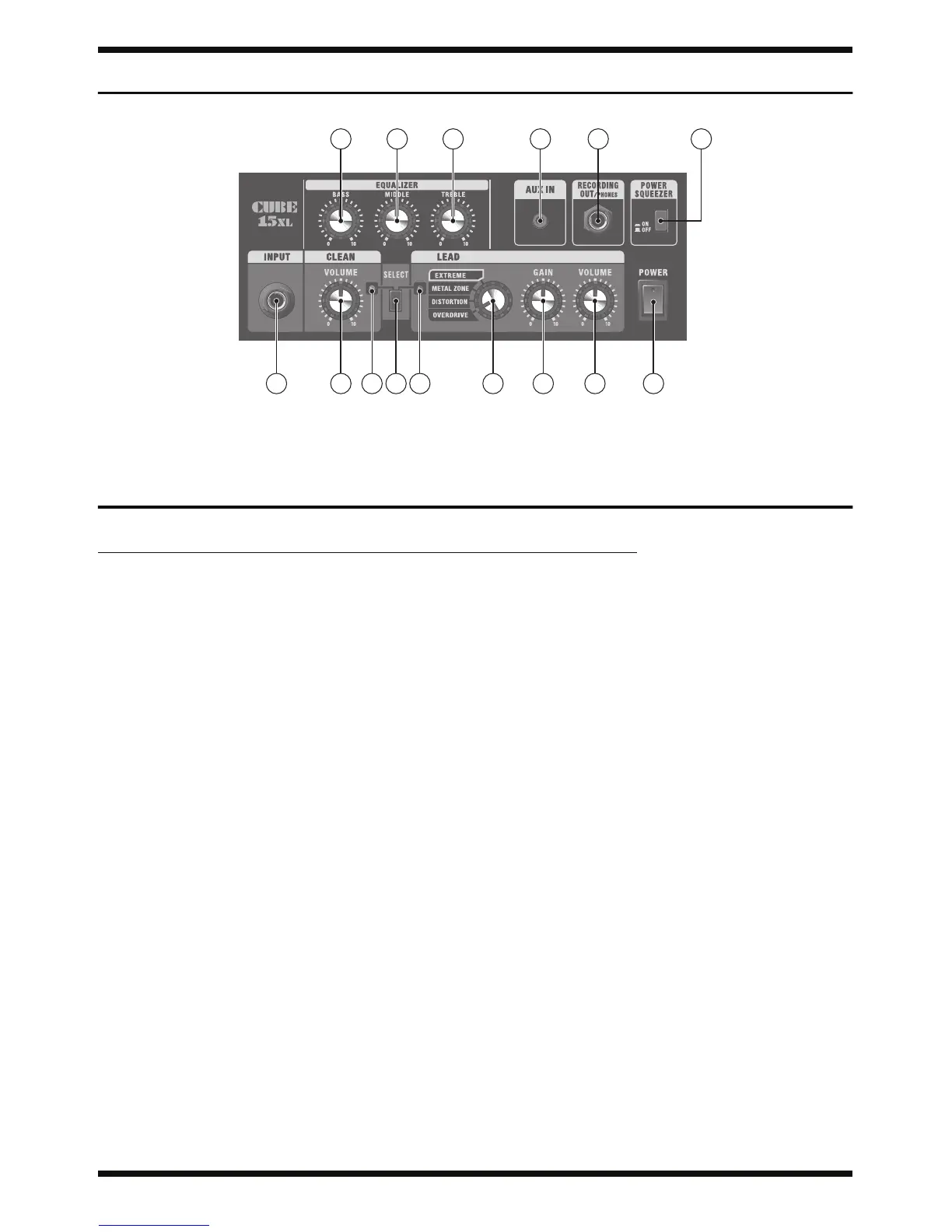

Location of Controls
fig.panel-15XL.eps
Location of Controls Parts List
1 2 3 4 5 6
8111 8 1269107
No. Part Code Part Name Description Q’ty
1 5100016757 ROTARY POTENTIOMETER RD901F-20E1-15FWA250K-00 2
* This unit includes the following parts.
17048630 VR ACCESSORY NUT M9 2
40452178 VR WASHER M9 2
1 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 2
2 5100016756 ROTARY POTENTIOMETER RD901F-20E1-15FW1B20K-00 1
* This unit includes the following parts.
17048630 VR ACCESSORY NUT M9 1
40452178 VR WASHER M9 1
2 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 1
3 5100016755 ROTARY POTENTIOMETER RD901F-20E1-15FWB100K-00 1
* This unit includes the following parts.
17048630 VR ACCESSORY NUT M9 1
40452178 VR WASHER M9 1
3 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 1
4 02456390 3.5MM JACK STEREO YKB21-5290 1
5 13449252 6.5MM JACK YKB21-5006 (STEREO W/SW) 1
22150756 JACK NUT 2 PLASTIC/BLK 1
6 01348745 SWITCH (PUSH) SPUP192700 2
22497521R0 PUSH BUTTON BLACK #521(40A-1BBG-108) 2
7 13449146 6.5MM JACK YKB21-5012 (W/SW) 1
22150756 JACK NUT 2 PLASTIC/BLK 1
8 5100016754 ROTARY POTENTIOMETER RD901F-20E1-15FW1B10K-00DN6 2
* This unit includes the following parts.
17048630 VR ACCESSORY NUT M9 2
40452178 VR WASHER M9 2
8 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 2
9 03349989 LED (GREEN) L-34GDSL-FPB 1
10 03349978 LED (RED) L-34HDSL-FPB 1
11 5100016825 SWITCH SRBM142300 1
* This unit includes the following parts.
40128923 HEX NUT M7 1
17048651 VR ACCESSORY WASHER M7 M7X12X0.5 NO.476 1
11 5100004351 R-KNOB 05800-515(SD000043)40A-KBG-10 1
12 02897801 SEESAW SWITCH SDDJE13200 94V-0 1
To Next Page
