Roland CUBE-60D User Manual

9
JULY.2004 CUBE-60D
8

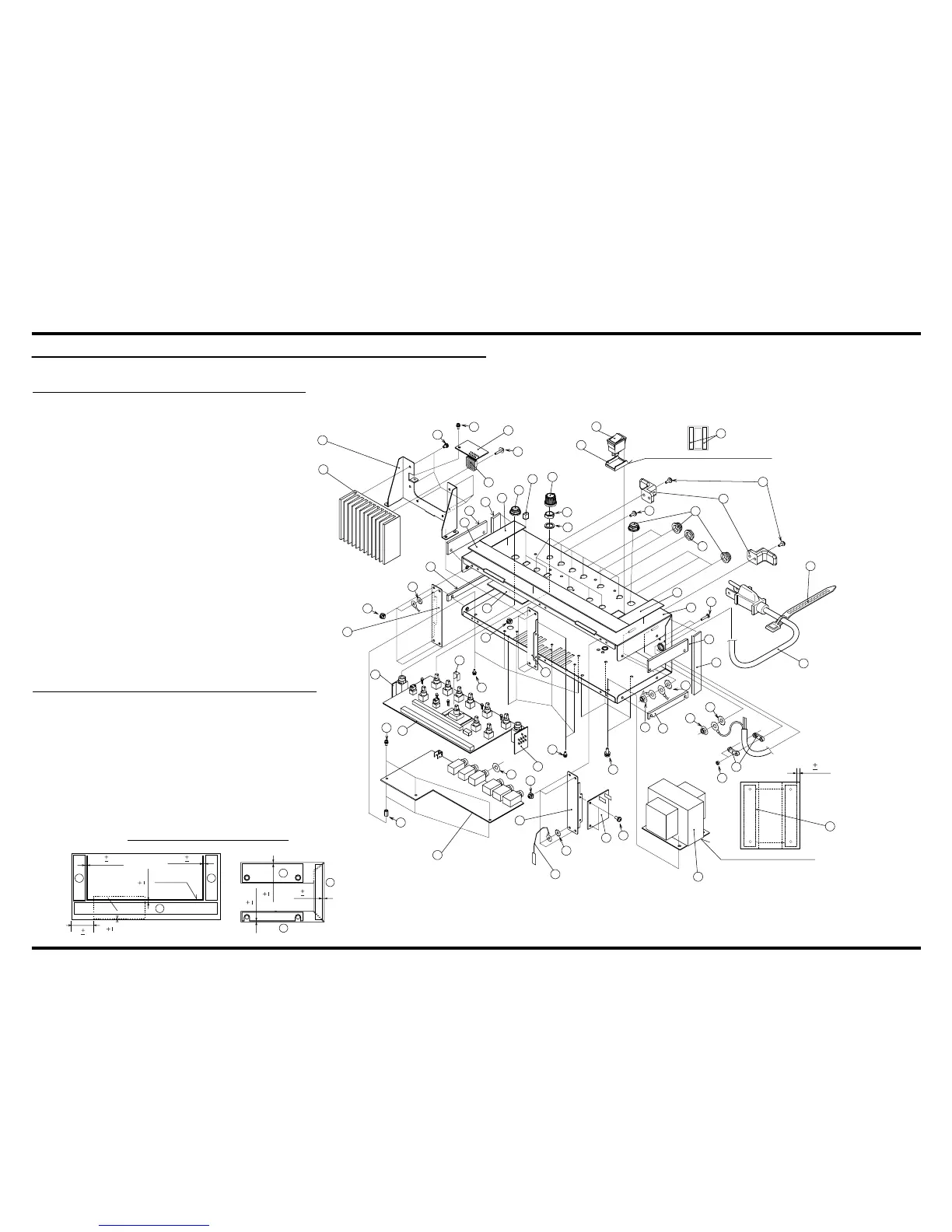

EXPLODED VIEW(CHASSIS)
fig.explo-cha
b
a
i
L
d
d
a
e
h
k
f
n
d
m
j
c
b
b
8
7
4
13
4
1
TRANSFORMER BOTTOM SIDE
2
16
11
14
15
14
9
6
5
3
10
20
19
19
18
g
26
27
p
o
21
23
22
4
21
b
24
b
L
NOTE: Avoid going over the outline of barrier.
BOTTOM SIDE OF POWER SW BARRIER
17
2
1
1
24
25
24
25
19
19
18
POSITIONING OF CUSHIONS ON CHASSIS(measureing scale)
TOP of the chassis
GUIDE LINE
BOTH SIDES of the chassis
(Left side is similer to below)
21
2
0
1
2
0
1
2
0
1
2
0
1
2
0
1
2
0
1
20
0
1
0
0
1
24
25
28
32
31
29
30
12
[PARTS]
[SCREW]
No
PART CODE
CATEGORY
PART NAME
DESCRIPTION
Q’TY
1
SD000469
TRANSFORMER
TRANSFORMER 230V/240V
ST-11785
1
1
SD000468
TRANSFORMER
TRANSFORMER 100V/117V
ST-11784
1
2
SD000012
AC CORD ASSY (Installed)
AC CORD
SP-023 230V
1
2
SD000014
AC CORD ASSY (Installed)
AC CORD
SP-301 117V
1
2
SD000015
AC CORD ASSY (Installed)
AC CORD
SP-502B 240V
1
2
SD000016
AC CORD ASSY (Installed)
AC CORD
SP-60 230VE
1
2
SD000095
AC CORD ASSY (Installed)
AC CORD
SP-18E 100V
1
3
SD000470
CHASSIS
CHASSIS
1
4
SD000471
CHASSIS
STAY
3
5
01786012
SWITCH
SEESAW SWITCH
JW-M11RKK
1
6
01786045
MISCELLANEOUS
SW HOLDER
AT-217K
1
7
SD000472
MISCELLANEOUS
HEATSINK
1
8
SD000473
MISCELLANEOUS
HEATSINK HOLDER
1
9
SD000043
KNOB,BUTTON
KNOB
10
10
SD000082
KNOB,BUTTON
PUSH BUTTON
2
11
22360705
CHASSIS
CORD HOOK
2
12
12369410RT
MISCELLANEOUS
AC CORD HOLDER
1702B
2
13
SD000483
MISCELLANEOUS
SW KNOB HIMERON
87-YP5-228-01M
1
14
SD000042
SCREWS
JACK NUT
7
15
SD000484
SCREWS
JACK NUT
S2 BNB
1
16
SD000266
MISCELLANEOUS
AC CORD BAND (BLACK)
1
17
SD000475
MISCELLANEOUS
HIMERON
95 X 80 X 0.5T
1
18
SD000477
MISCELLANEOUS
PU SPONGE W / ADH
360 X 25 X 4T
1
19
SD000478
MISCELLANEOUS
PU SPONGE W / ADH
90 X 25 X 4T
2
21
SD000480
MISCELLANEOUS
EVA PACKING W/ADH
113 X 10 X 1T
2
22
SD000476
MISCELLANEOUS
HIMERON W/ADH
21 X 3 X 0.35T
2
23
SD000485
SCREWS
JACK WASHER
S2 BNB
24
SD000481
MISCELLANEOUS
EVA PACKING W/ADH
100 X 30 X 1T
3
25
SD000482
MISCELLANEOUS
EVA PACKING W/ADH
100 X 13 X 1T
2
26
SD000474
WIRING, CABLE
WIRING W11
(1P BLUE)
1
27
SD000399
PWB ASSY
MAIN PCB ASSY
1
NOTE: Replacement MAIN PCB ASSY includes the followings parts .
28
********
PWB ASSY
IN BORD
1
29
********
PWB ASSY
PHO BORD
1
30
********
PWB ASSY
PS BORD
1
31
********
PWB ASSY
AMP BORD
1
32
SD000408
PWB ASSY
PANEL ASSY
1
No
PART CODE
PART NAME
DESCRIPTION
Q’TY
a
40011423
SCREW M3X6
PAN SEMS FECM
5
b
40012867
SCREW M3X8
PAN MACHINE W/SW+PW ZC
19
c
40013078
SCREW M3X10
PAN MACHINE W/SW FE ZC
1
d
40237101
SCREW M3X8
PAN MACHINE W/SW+PW FE BZC
9
e
40013012
SCREW M4X10
PAN W SEMS FE BZC
4
f
40010301
SCREW M3X20
BINDING MACHINE BZC
2
g
40011756
FLANGE HEX NUT M3
ZC
2
h
40011767
FLANGE HEX NUT M4
FE ZC
1
i
22150501
STAND OFF
M3 L10C
3
j
17048630
VR ACCESSORY NUT M9
10
k
40011889
EXTERNAL TOOTH WASHER M4
FECM
1
L
40011878
M3 EXTERNAL TOOTH WASHER
FECM
1
m
17048631
VR ACCESSORY WASHER M9
10
n
SD000103
SCREW M4X25
PAN PACHINE W/SW BZC
2
o
40011889
EXTERNAL TOOTH WASHER M4
FECM
1
p
40011767
FLANGE HEX NUT M4
FE ZC
1
