Roland CUBE-STEX - Panel Views A3 and A4; Top;Front Panel Details (View A3); Rear Panel Details (View A4)

15
Apr. 2014 CUBE-STEX

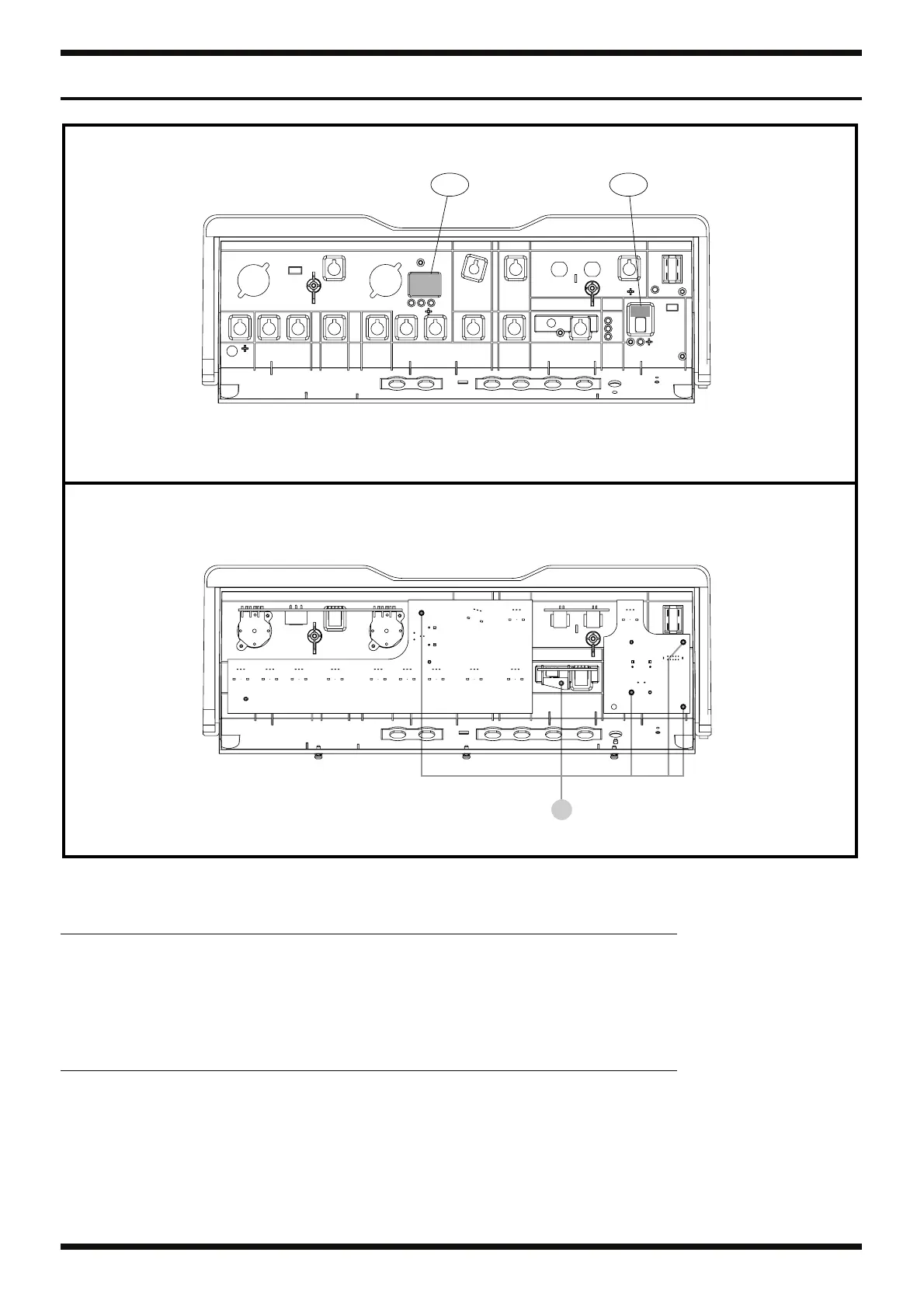

Plane View (View A3, A4)
fig.view-A34.eps
View A3
View A4
A25 A26
f
View A3
View A4
No. Part Code Part Name Description Q’ty
A25 5100036045 CUSHION C-KEYTOP 1
A26 5100036269 EVA PACKING S-KEYTOP 1
No. Part Code Part Name Description Q’ty
f 40011312 SCREW 3X8 BINDING TAPTITE P FE BZC 5
