11

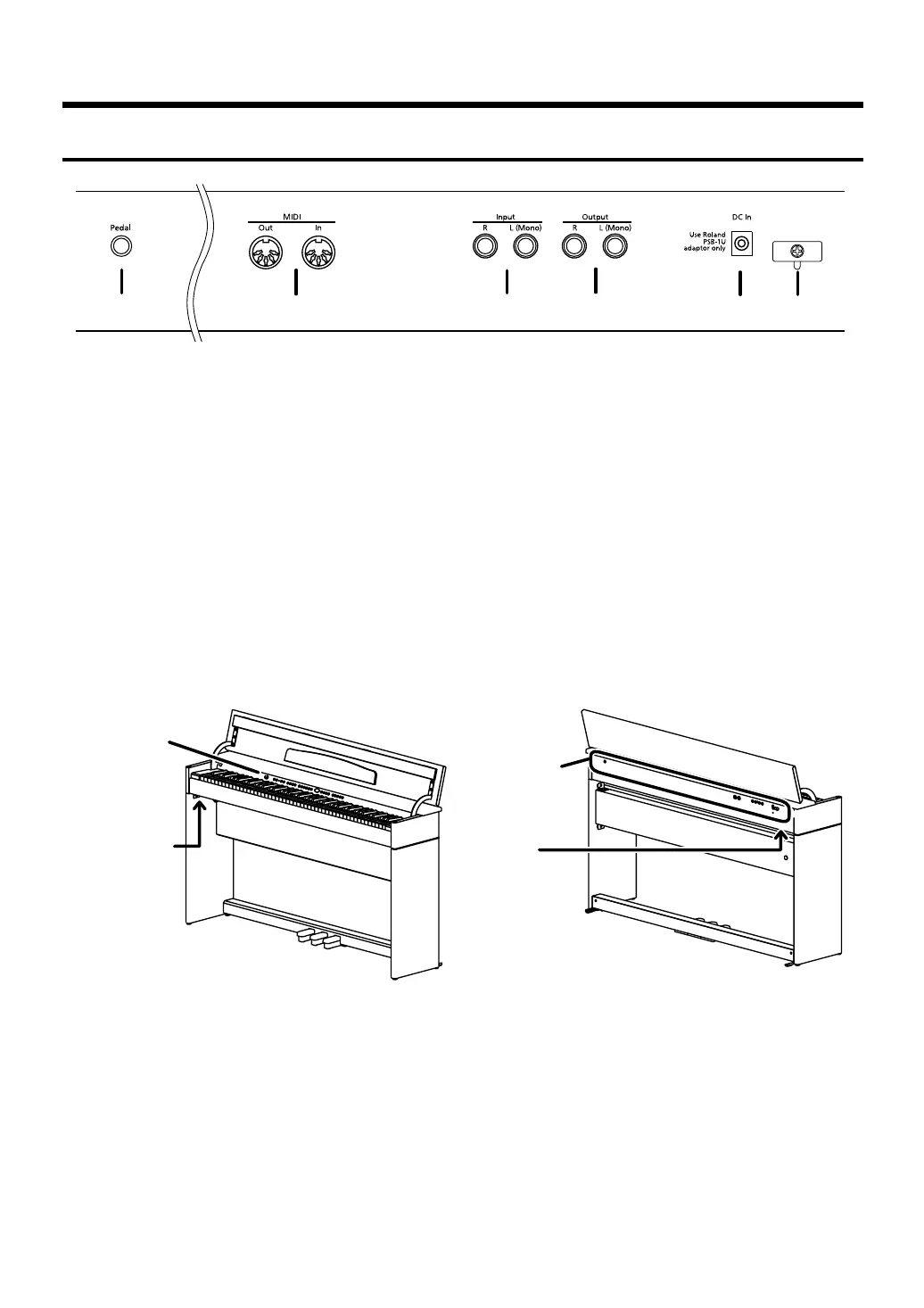

Panel Descriptions
Rear Panel
1
Pedal jack
Connect the pedal cord of the pedal board to this jack
(p. 12).
2
MIDI Out/In connectors
Connect to external MIDI devices to exchange
performance data (p. 46).
3
Input jacks
These jacks can be connected to another sound
generating device or an audio device, so that the sound
of that device will be output from the DP-970’s speakers
(p. 45).
4
Output jacks
Allows you to output the piano’s sound to sound
reinforcement equipment to obtain a more powerful
sound. These can also be connected to a tape recorder or
other recording device to record a performance (p. 45).
5
DC in jack
Connect the supplied AC adaptor here.
6
Cord hook
Use this to fix in place the cord from the supplied AC
adaptor (p. 12).
7
Headphones jacks
A set of headphones can be connected here (p. 13).
8
Speaker jacks
Connect the speaker cord of the speaker box to this jack
(p. 9).
2
3
456
1
Headphones
jack
Front Panel
7.
8.
Rear Panel
Speaker
jack
