Roland DUO-CAPTURE - Panel Descriptions; Top Panel, Bottom Panel

7

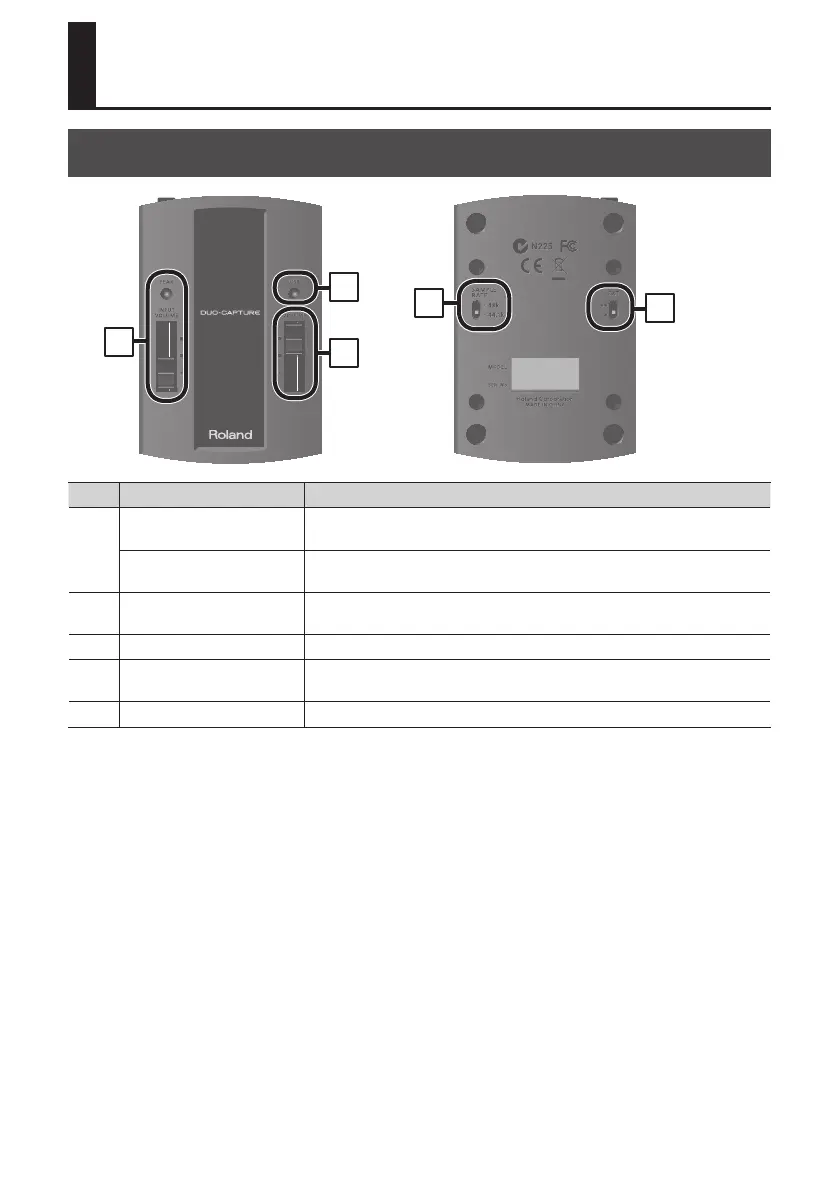

Top Panel, Bottom Panel
2
1
3
5
4
No. Name Description
1
PEAK indicator
Blinks in time with the audio signal that is input via the LINE IN jack or MIC/
GUITAR jack.
[INPUT VOLUME] slider
Adjusts the volume of the audio signal that is input via the LINE IN jack or
MIC/GUITAR jack.
2 USB indicator
Lights when the DUO-CAPTURE is connected to a computer and the
computer has detected the DUO-CAPTURE.
3 [OUTPUT VOLUME] slider Adjusts the volume of the audio signal that is output to the PHONES jack.
4 [SAMPLE RATE] switch
44.1k: The DUO-CAPTURE will record and play back at a sample rate of 44.1 kHz.
48k: The DUO-CAPTURE will record and play back at a sample rate of 48 kHz.
5 [EXT] switch Feature-expansion switch. Normally this switch should be set to “*.”
Panel Descriptions
