Roland FANTOM-08 Reference Manual

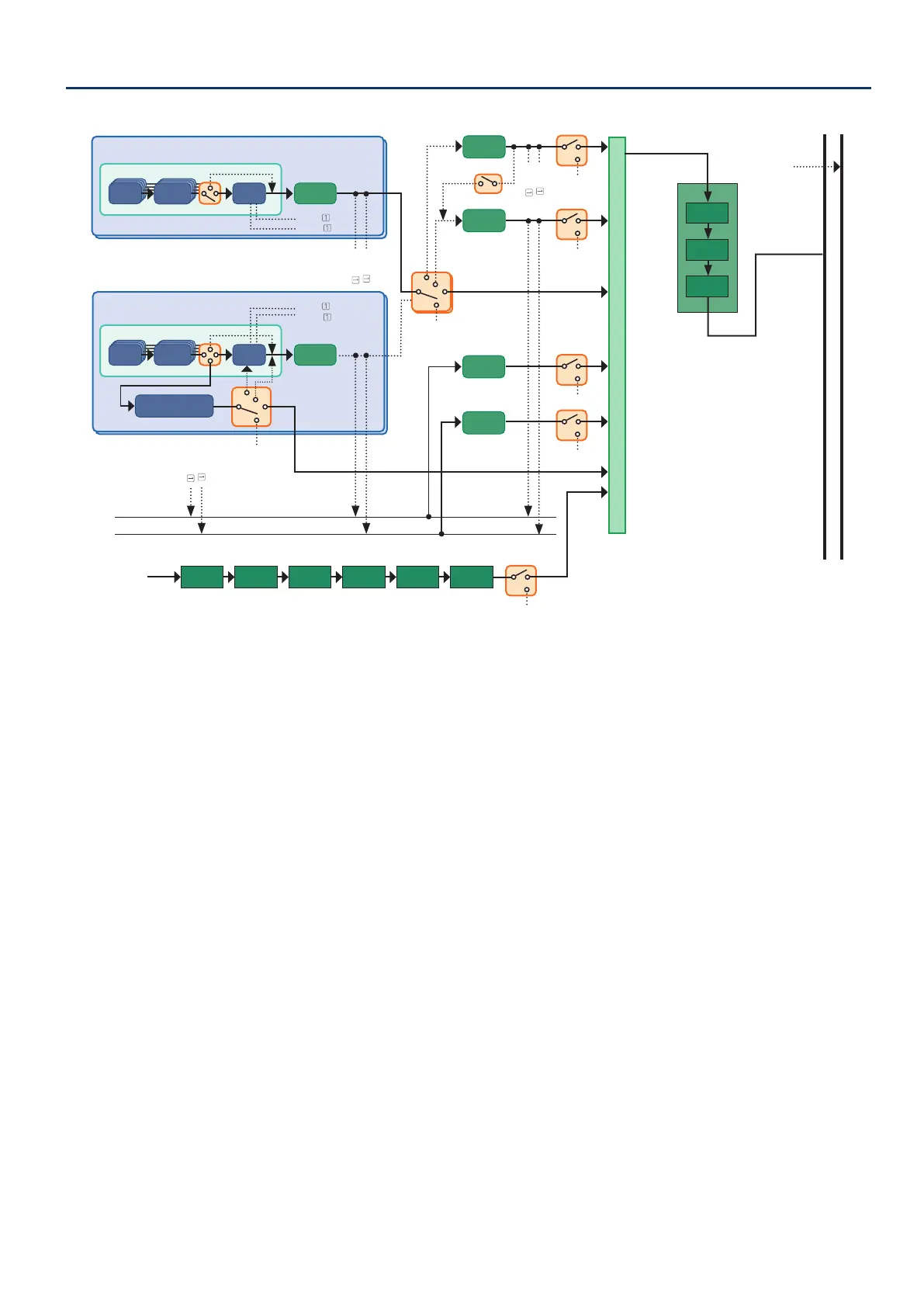

An Overview of FANTOM
2121
Mixer
PARTIAL
Inst
MFX
MFX
Zone EQ
Zone EQ
TONE
DRUM KIT
ZONE (Type: Z-Core)
ZONE (Type: Drum)
IFX1
IFX2
Chorus
Chorus Send
from Sub
Reverb Send
Audio Input
Reverb
Comp x 6
for Drum Kit
TFX
Master
EQ
Master
Comp
Main Output Sub Output
Master FX
to Sub
to Sub
to Sub
to Sub to Sub
to Sub
to Sub
to Rev
to Rev
to Rev
to Rev
from Rev
to Cho
to Cho
to Cho
to Cho
from Cho
Drum Kit Comp Zone
PARTIAL
EQ
KIT PTL
EQ
Low Cut Vocoder NS MFX Input EQ
Input
Reverb

Roland FANTOM-08 Specifications

General

Bit rate	24 bit
Pitch wheel	Yes
Product type	Digital synthesizer
Product color	Black
Sound effects	Chorus, Reverberation
Sound effects quantity	16
Chorus effects quantity	9
Keyboard number of keys	88
Preset programs quantity	10
Maximum polyphony (notes)	8
Reverberation effects quantity	7
6.35 mm (1⁄4-inch) input	1
Display type	LCD
Power source type	AC

Weight and Dimensions

Depth	354 mm
Width	1393 mm
Height	138 mm
Weight	14800 g
