Roland Fantom-X6 Service Notes

32
Mar.2004

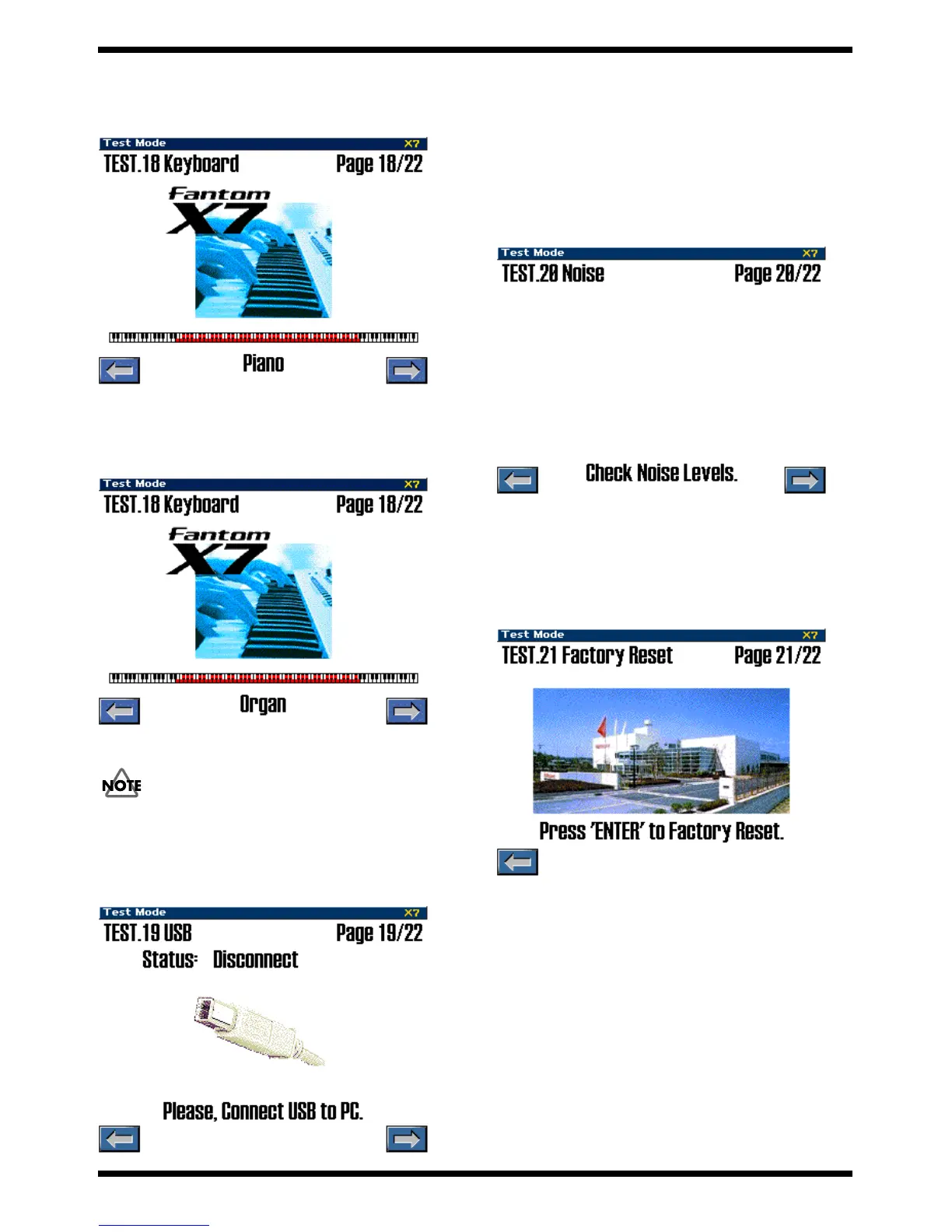

18. Keyboard
This tests the keyboard.
When you enter the keyboard test, the LCD display will show as follows.
fig.test-kbd1_70
Perform the eight-note check. Play the keyboard to check.
Also verify that the volume changes according to the strength with which you
press the key.
When you press the [8] button, the sound will change, and the LCD display
will show as follows.
fig.test-kbd2_70
Perform the two-note check. Play the keyboard to check.
Press the [8] button to proceed to the next test item.
When you do not check the all key, you can not proceed to the next test items.
19. USB
This tests USB operation.
When you enter the USB test, the LCD display will show as follows.
fig.test760_70
Connect a USB cable to your computer (one that has a USB connector; the OS
can be either Windows Me, Windows 2000, or Windows XP).
If the test result is OK, the display will indicate “Status: Connect USB Test
Completed!”
On your computer, use the Safely Remove Hardware icon shown in the
taskbar at the lower right of the screen to break the connection with the
Fantom-X.
Press the [8] button to proceed to the next test item.
20. Noise test
fig.test806_70
1. Cheak the nosie is soundig or not.
2. Press the [8] button to proceed to the next test item.
21. Factory Reset
This perform a Factory Reset.
The LCD display will show as follows.
fig.test756_70
When you press the [ENTER] button, the LCD display will show as follows,
and the factory reset will be executed automatically.

Roland Fantom-X6 Specifications

General

Keyboard	61 keys (with velocity and channel aftertouch)
Polyphony	128 voices
Wave Memory	128 MB (16-bit linear equivalent)
User Patches	256
User Rhythm Sets	32
Preset Performances	64
User Performances	64
Arpeggiator	Yes
Preset Patches	1, 024 + 256 (GM2)
Preset Rhythm Sets	40 + 9 (GM2)
Effects	Reverb, chorus
Display	320 x 240 backlit LCD
Sequencer	16-track sequencer with 480 TPQN resolution
Sampling	Yes (up to 544MB RAM with optional DIMM)
Expansion Slots	4 SRX expansion slots
USB	USB MIDI
Weight	12.5 kg (27 lbs 9 oz)
Connectivity	MIDI, USB, line in/out, headphone, pedal
Storage	CompactFlash slot
Power Supply	AC 117 V, AC 230 V (50/60 Hz)
