Roland Fantom-X6 Service Notes

41
FANTOM-X6
<Key removal>

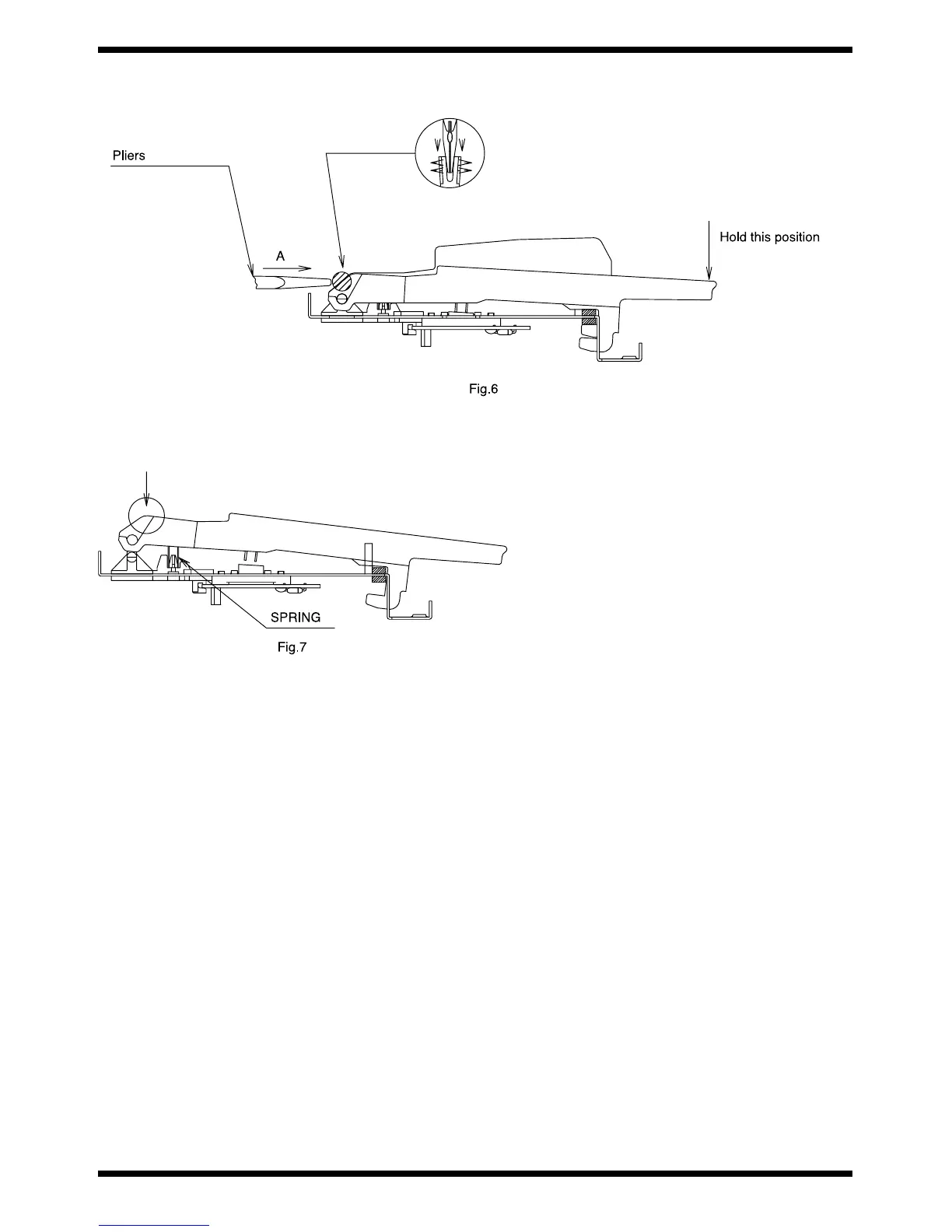

Hold the tip of the key, put pliers into the bearing side, and spread out. (Refer to fig.6)
fig.6-e
<Key installation>
Place a spring on the chassis. Next, place a key (see fig.7) and press the bearing side.
fig.7-e

Roland Fantom-X6 Specifications

General

Keyboard	61 keys (with velocity and channel aftertouch)
Polyphony	128 voices
Wave Memory	128 MB (16-bit linear equivalent)
User Patches	256
User Rhythm Sets	32
Preset Performances	64
User Performances	64
Arpeggiator	Yes
Preset Patches	1, 024 + 256 (GM2)
Preset Rhythm Sets	40 + 9 (GM2)
Effects	Reverb, chorus
Display	320 x 240 backlit LCD
Sequencer	16-track sequencer with 480 TPQN resolution
Sampling	Yes (up to 544MB RAM with optional DIMM)
Expansion Slots	4 SRX expansion slots
USB	USB MIDI
Weight	12.5 kg (27 lbs 9 oz)
Connectivity	MIDI, USB, line in/out, headphone, pedal
Storage	CompactFlash slot
Power Supply	AC 117 V, AC 230 V (50/60 Hz)
