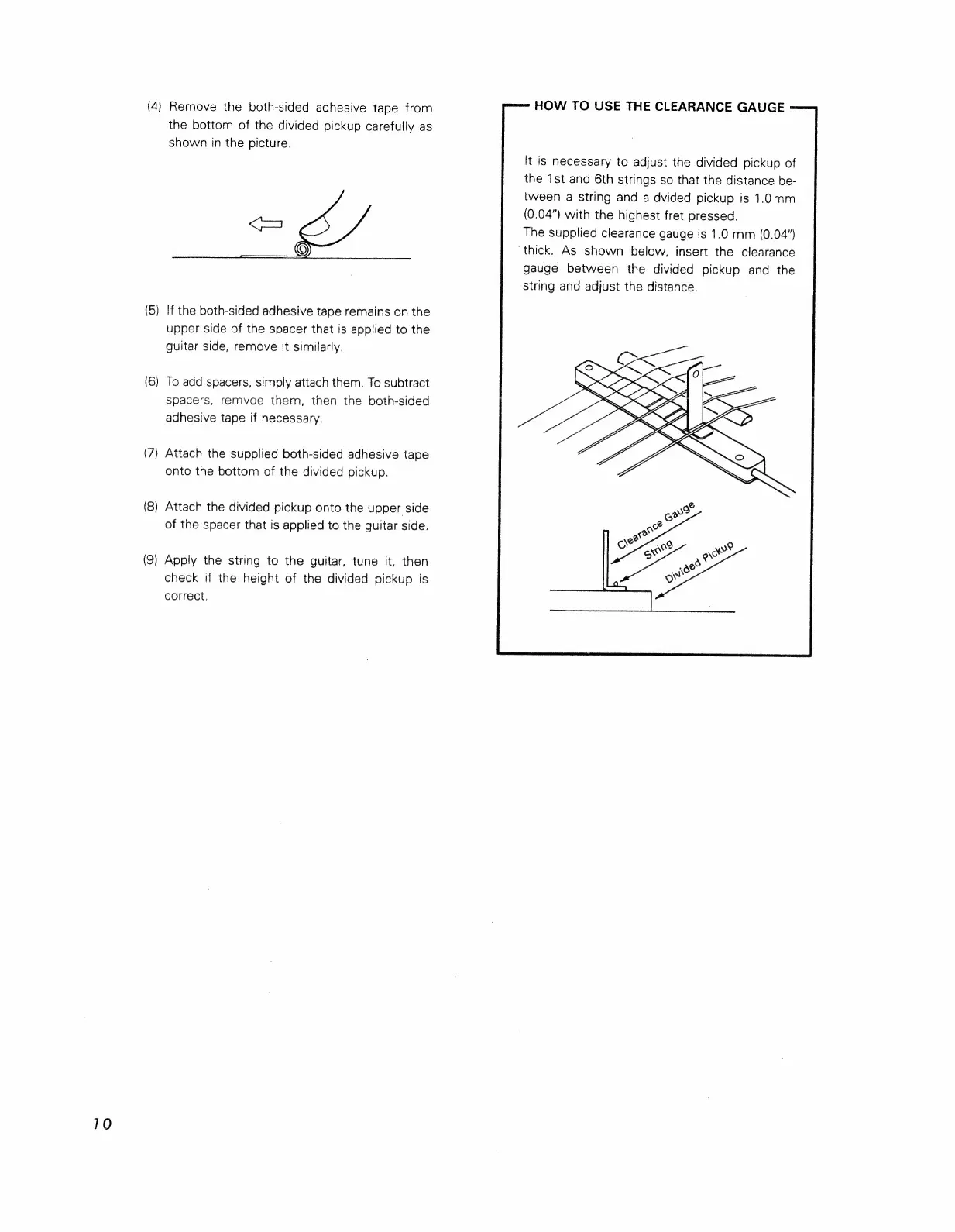

HOW TO USE THE CLEARANCE GAUGE
(4) Remove the both-sided adhesive tape from
the bottom of the divided pickup carefully as
shown in the picture.
It is necessary to adjust the divided pickup of
the 1st and 6th strings so that the distance be-
tween a string and a dvided pickup is 1.0mm
(0.04”) with the highest fret pressed.
<=
The
supplied
clearance
gauge
is
1.0
mm
(0.04”)
‘thick.
As
shown
below,
insert
the
clearance
gauge between the divided pickup and the
string and adjust the distance.
(5) If the both-sided adhesive tape remains on the
upper side of the spacer that is applied to the
guitar side, remove it similarly.
(6) To add spacers, simply attach them. To subtract
spacers, remvoe them, then the both-sided
adhesive tape if necessary.
(7) Attach the supplied both-sided adhesive tape
onto the bottom of the divided pickup.
(8) Attach the divided pickup onto the upper side
of the spacer that is applied to the guitar side.
(9
Apply the string to the guitar, tune it, then
check if the height of the divided pickup is
correct.
