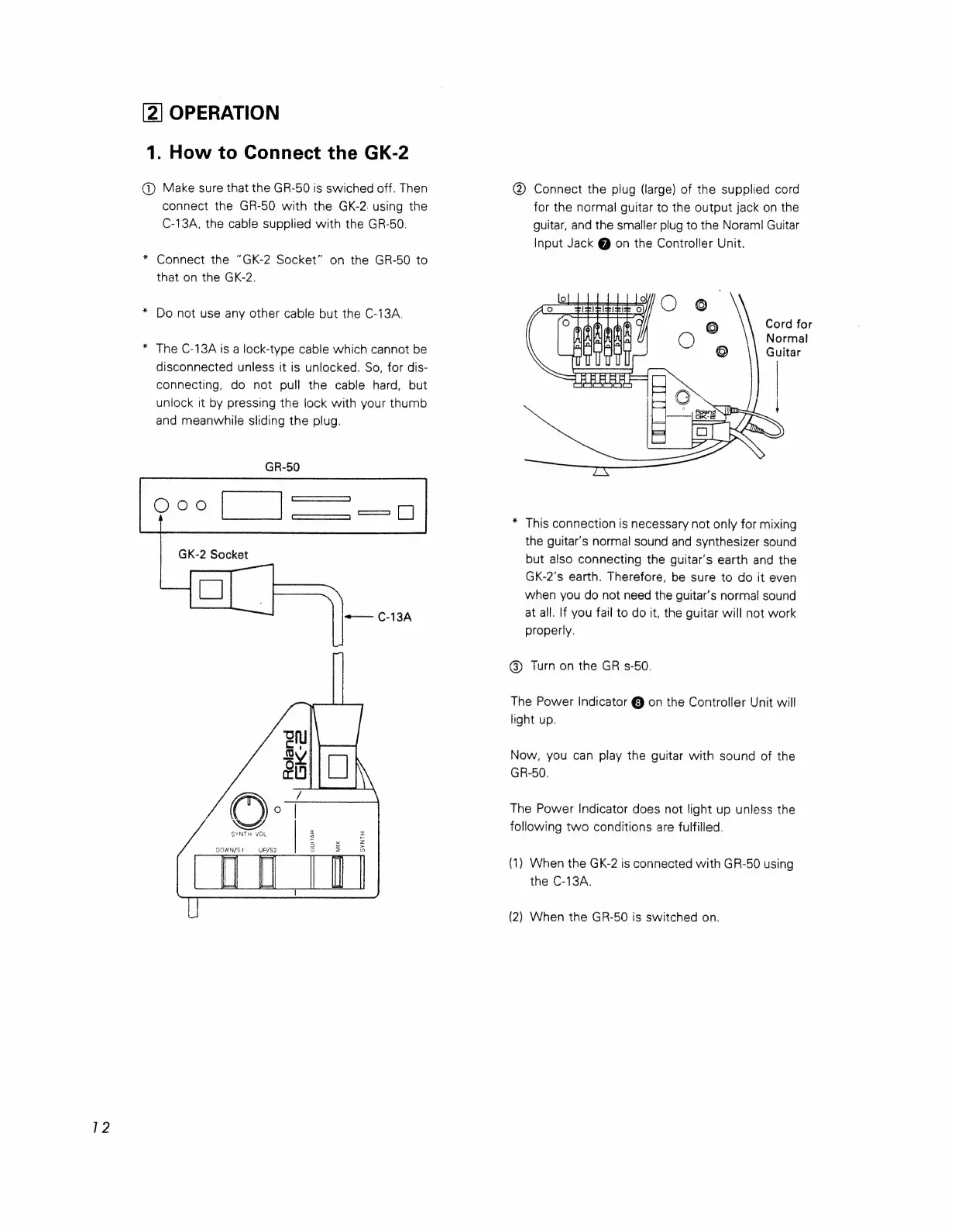

[2] OPERATION
1. How to Connect the GK-2
®© Make sure that the GR-50 is swiched off. Then
connect the GR-50 with the GK-2. using the
C-13A, the cable supplied with the GR-50.
* Connect the “GK-2 Socket” on the GR-50 to
that on the GK-2.
* Do not use any other cable but the C-13A.
* The C-13A is a lock-type cable which cannot be
disconnected unless it is unlocked. So, for dis-
connecting, do not pull the cable hard, but
unlock it by pressing the lock with your thumb
and meanwhile sliding the plug.
GR-50
SYNTH VOL |
GUITAR
SYNTH MIX
DOWN/S1 UP/S2
@ Connect the plug (large) of the supplied cord
for the normal guitar to the output jack on the
guitar, and the smaller plug to the Noram! Guitar
Input Jack @ on the Controller Unit.
Normal
Guitar
* This connection is necessary not only for mixing
the guitar’s normal sound and synthesizer sound
but also connecting the guitar's earth and the
GK-2's earth. Therefore, be sure to do it even
when you do not need the guitar’s normal sound
at all. If you fail to do it, the guitar will not work
properly.
© Turn on the GR s-50.
The Power Indicator @ on the Controller Unit will
light up.
Now, you can play the guitar with sound of the
GR-50.
The Power Indicator does not light up unless the
following two conditions are fulfilled.
(1) When the GK-2 is connected with GR-50 using
the C-13A.
(2) When the GR-50 is switched on.
Cord for
