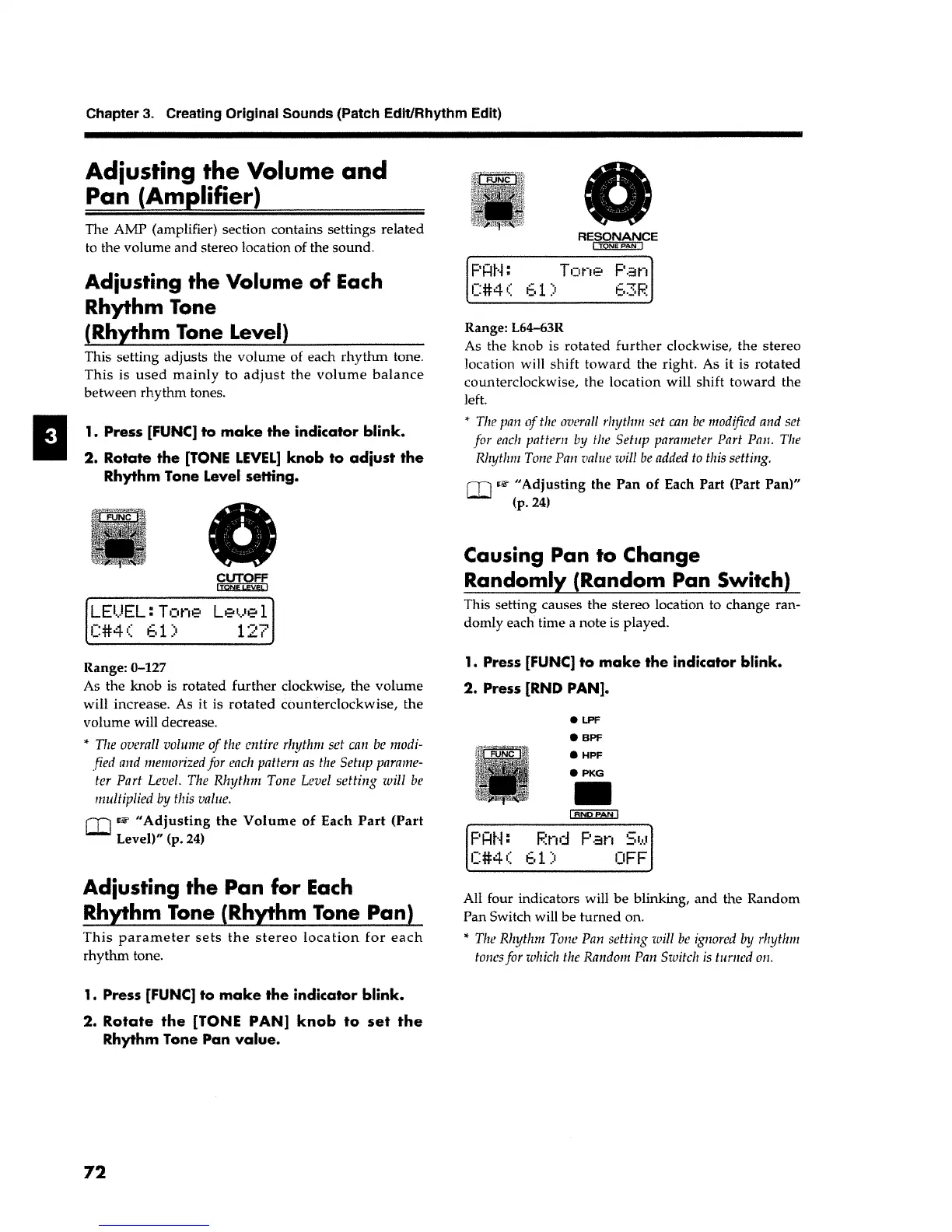

Roland Groovebox MC-505 - Adjusting the Volume of each Rhythm Tone; Adjusting the Pan for each Rhythm Tone
