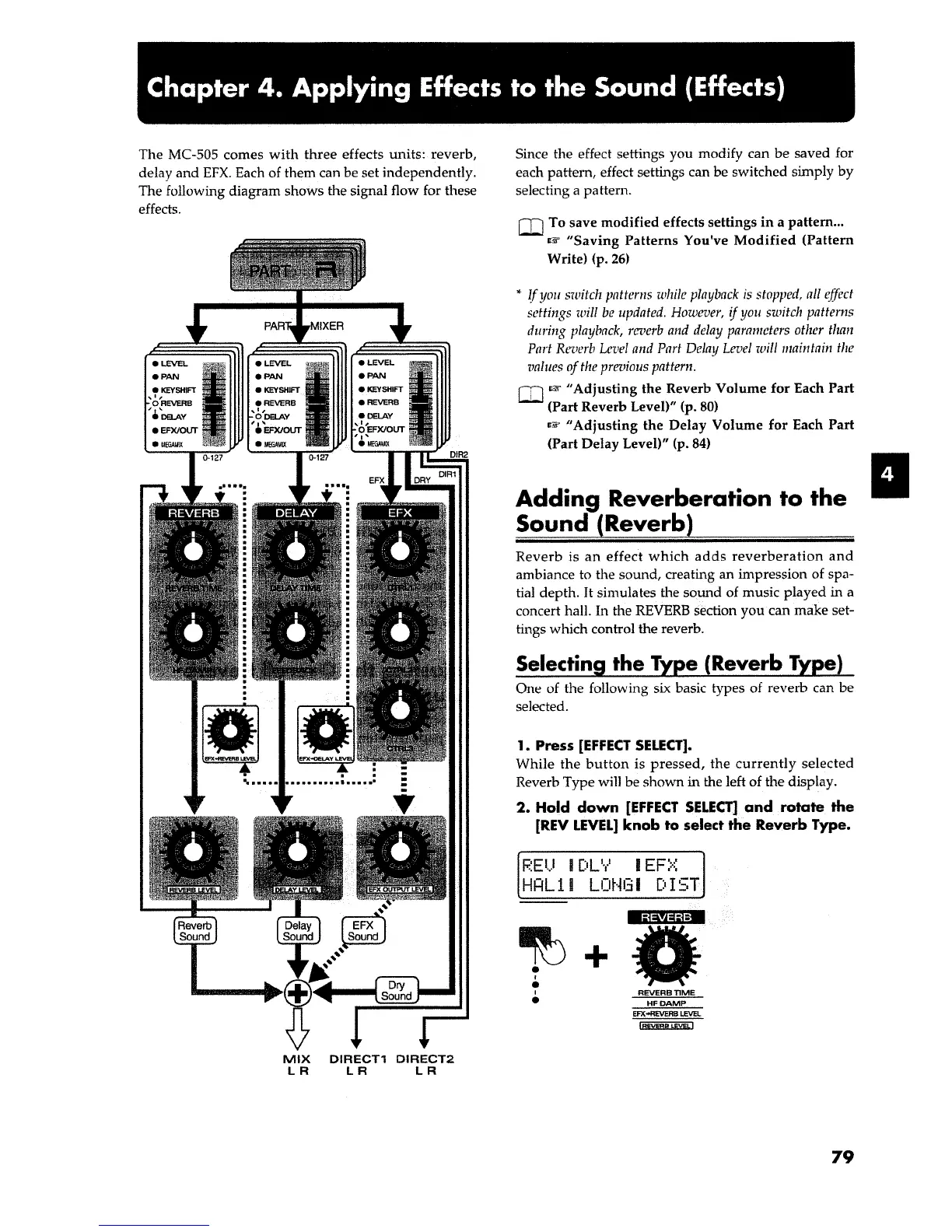

Roland Groovebox MC-505 - Applying Effects to the Sound; Adding Reverberation to the Sound; Selecting the Type
