Roland GT-6 User Manual

Sep. 2001
GT-6(T)

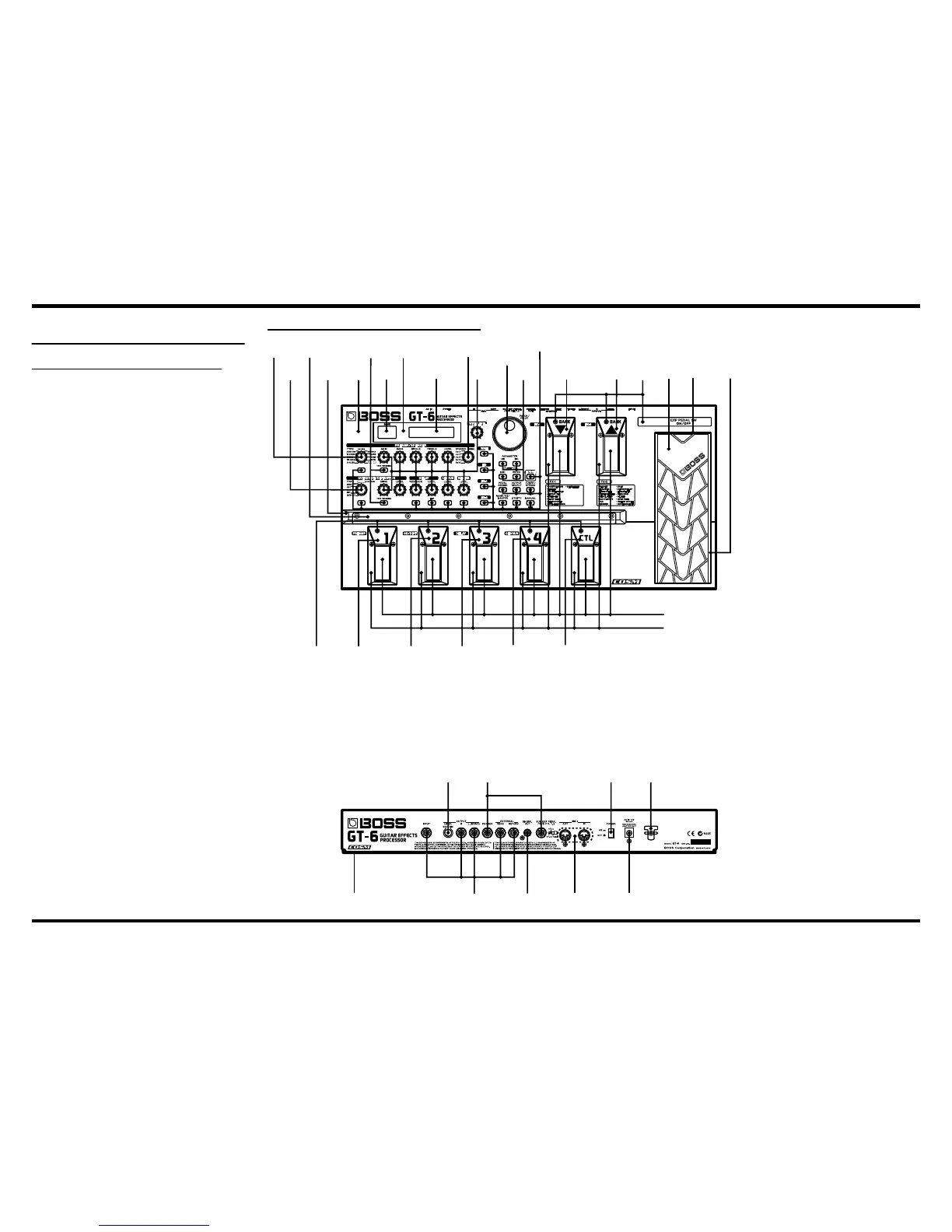

LOCATION OF CONTROLS
PARTS LIST
LOCATION OF CONTROLS
fig.panel
No. Part Code Part Name Q’ty
1 G2477122 R-KNOB 15
2 F3279803 POTENTIOMETER RD901-40-125F-
B54-11D (11 click)
1
3 F3279804 POTENTIOMETER RD901-40-125F-
B54-06D (6 click)
2
4 F3279802 POTENTIOMETER RD901-40-125F-
B54-00D
12
5 G2237113 GUARD PLATE 1
6 G2237112 GUARD 1
7 G2017152 TOP COVER 1
8 F5029412 LED (RED) A-552SR BW 1
9 F5029405 LMC-SSC2K16DLNY-H01 1
10 G2567119 DISPLAY COVER 1
11 22485303 D R-KNOB L BLK 248-303 1
12 01905467 ROTARY ENCODER EVE GC1 F20
24B
1
13 G2567118 ESCUTCEON (for PANEL) 1
14 G247751301 KEYTOP S WITHOUT LENS 4
15 G247751001 KEYTOP S BLACK WITH LENS 19
16 F5029111 LED (RED/GREEN) L-3WSRSGW-
CC
2
17 F5029117 LED (RED) L-312LRD 17
18 1502928100 LED (RED) L-34HDSL 8
19 01780101 TACT SWITCH SKQKAB 23
20 G2217138 PEDAL LABEL(1) 1
21 G2217139 PEDAL LABEL(2) 1
22 G2217140 PEDAL LABEL(3) 1
23 G2217143 PEDAL LABEL(4) 1
24 G2217144 PEDAL LABEL(CTL) 1
25 G2217142 PEDAL LABEL(DOWN) 1
26 G2217141 PEDAL LABEL(UP) 1
27 G2357112 VR PLATE 1
28 G2567121 RUBBER SW ESCUTCHEON 1
29 G2567120 RUBBER SW 1
30 G2187533 VR PEDAL 1
31 G2187904 PEDAL HOLDER 1
32 01016167 11M/M ROTARY POT.
RK11K1140(10K SP B)
1
33 G2357111 CUSHION R 1
34 G2147117 PIN STAY 1
35 G2147119 BOLT HOLDER 2
36 G2357120 FOOT H=5 5
37 G2147116 SHAFT STAY 1
38 G2227301 PEDAL ESCUTCHEON 7
39 G2187602 SWITCH PEDAL 7
40 G2177103 SUPPORT SPRING 7
41 G2357109 PEDAL FOOT 7
42 13129778 TACT SWITCH SKQKAH 7
43 G2017150 BOTTOM COVER 1
44 13449155MF PHONE JACK (MONO) HTJ-064-12I 5
45 13449150MF PHONE JACK (STEREO) HTJ-064-
12D
2
46 01340412 P R-KNOB SF-A BLK/LCG 1
47 01676523 9M/M ROTARY POT. RK09K12A0
10KAX2
1
48 01343723 RCA(PIN) JACK YKC21-3117 1
49 13429825 MIDI CONNECTOR YKF51-5054 1
50 12499175 G S-BUTTON S1H BLK 1
51 01676512 PUSH SWITCH SDKLA1-B 1
52 13449728 ADAPTOR JACK HEC0740-010010 1
53 22360712 CORD HOOK 236-712 1
1.2.
1.3.
1.4.
5.
6.
7.
8.
9.
10.
1.3.
11.12.13.
14.19.
15.17.19.
18.
18.
25. 26.
27.
28.29.
30.31.32.33.
34.35.37.
39.40.41.42
38.
20.
21.
22.
23.
24.
36.43.
44.
45.
46.47.
48.
49.
50.51.
52.
53.
15.16.19.
54
