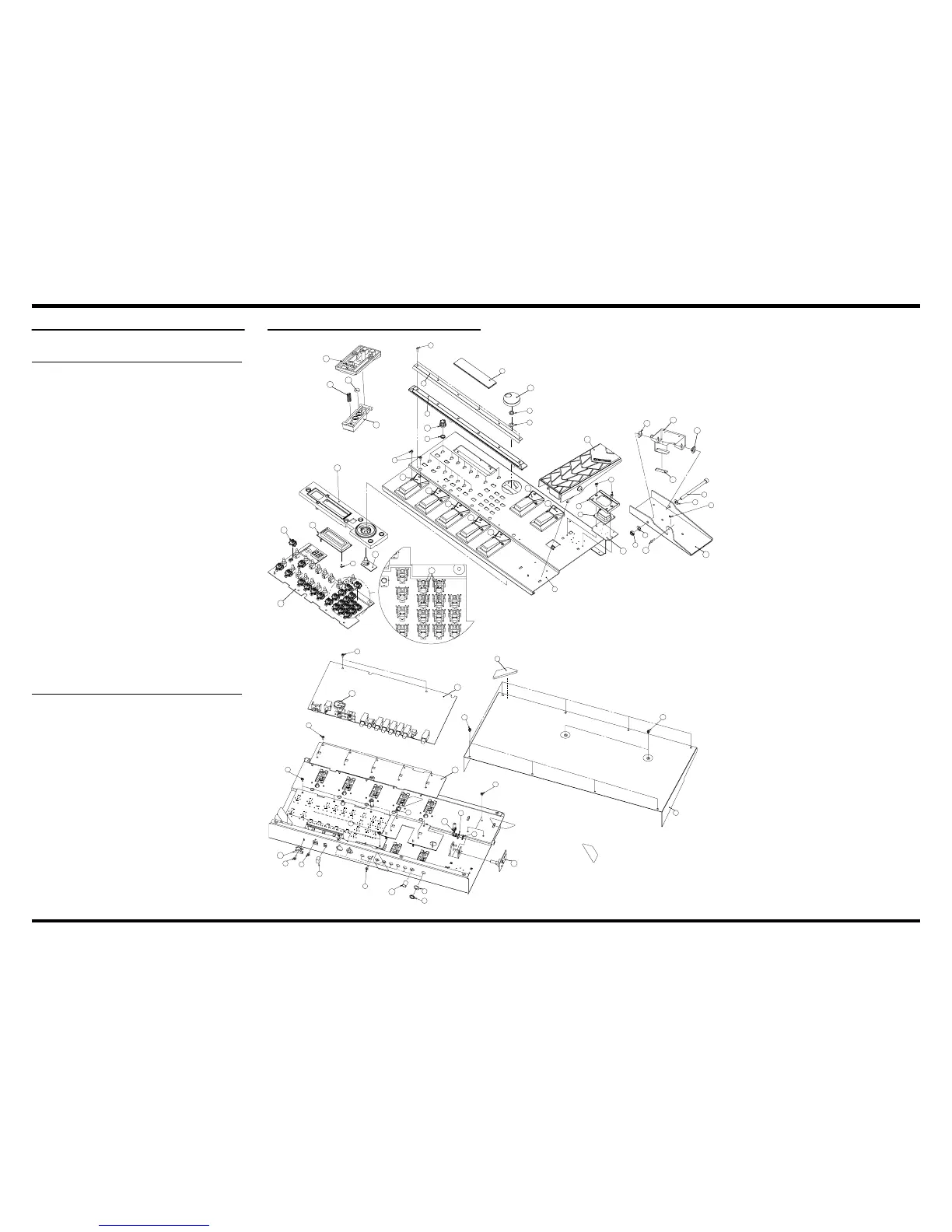

No. Part Code Part Name
1 G2017152 TOP COVER
2 G2017150 BOTTOM COVER
3 G2237112 GUARD
4 G2237113 GUARD PLATE
5 G2567120 RUBBER SW
6 G2567121 RUBBER SW ESCUTCHEON
7 G2357120 FOOT H=5
8 G2567119 DISPLAY COVER
9 12499175 G S-BUTTON S1H BLK
10 22485303 D R-KNOB L BLK
11 01340412 P R-KNOB SF-A BLK/LCG
12 22360712 CORD HOOK 236-712
13 G2217138 PEDAL LABEL(1)
14 G2217139 PEDAL LABEL(2)
15 G2217140 PEDAL LABEL(3)
16 G2217143 PEDAL LABEL(4)
17 G2217144 PEDAL LABEL(CTL)
18 G2217141 PEDAL LABEL(UP)
19 G2217142 PEDAL LABEL(DOWN)
20 G247751001 KEYTOP S BLACK WITH LENS
21 G247751301 KEYTOP S WITHOUT LENS
22 G2147116 SHAFT STAY
23 G2477122 R-KNOB
24 G2567118 ESCUTCEON (ABS,for PANEL)
25 G2227301 PEDAL ESCUTCHEON
26 G2187602 SWITCH PEDAL
27 G2177103 SUPPORT SPRING
28 G2357109 PEDAL FOOT
29 G2187904 PEDAL HOLDER
30 G2187533 VR PEDAL
31 G2357111 CUSHION R
32 G2147117 PIN STAY
33 G2357112 VR PLATE
34 F5029405 LCD
35 75D523S000 SW1 BOARD
36 75D523S000 SW2 BOARD
37 75D523S000 SW3 BOARD
38 75D523M000 MAIN BOARD
39 75D523S000 SW4 BOARD
40 75D523S000 SW5 BOARD
41 G2147119 BOLT HOLDER
42 12569249S0 LITHIUM BATTERY CR2032
[Screws]
No. Part Code Part Name
a H5029854 HEX BUTTON BOLT M3x12 FeNi
b ******** M9 NUT (with ENCODER)
c H5039126 M9 WASHER (with ENCODER)
d H5039520 M9 NUT (VR)
e H5039510 NUT M9x11x2 FeNi (for Phone Jack)
f H5039112 WASHER M9 (for Phone Jack)
g 40342701 SCREW 2.3x8 BINDING TAPTITE P ZC
h 40011278 SCREW 3x8 BINDING TAPTITE P ZC
I 40011312 SCREW 3x8 BINDING TAPTITE P BZC
k 40127689 SCREW M3x10 BINDING TAPTITE S BZC
m H5019124 SCREW M3x6 BINDING W/PW+SW ZC
(Small Washer)
n H5019130 SCREW M3x6 BINDING W/PW+SW ZC
(Normal Washer)
o 40015901 E-RING M2.5 SUS
p 40342690 HEX BOLT M6x85 HALF THREAD BZC
q 40016067 PLAIN WASHER 6x13x1 BZC
r 40016001 NUT M6 U BZC
s 40019123 SCREW 3x8 BINDING TAPTITE S BZC
35
20
34
g
37
21
1
17
16
15
14
13
s
26
23
3
d
4
27
28
25
a
8
24
36
32
r
q
5
6
k
31
p
q
o
30
41
41
29
33
10
b
c
19
18
42
40
2
38
39
f
e
11
i
9
s
12
k
h
n
h
c
d
22
7
m
m
h
h
s
76
