Roland GT3 User Manual

GT-3 Feb. 1999
3
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V

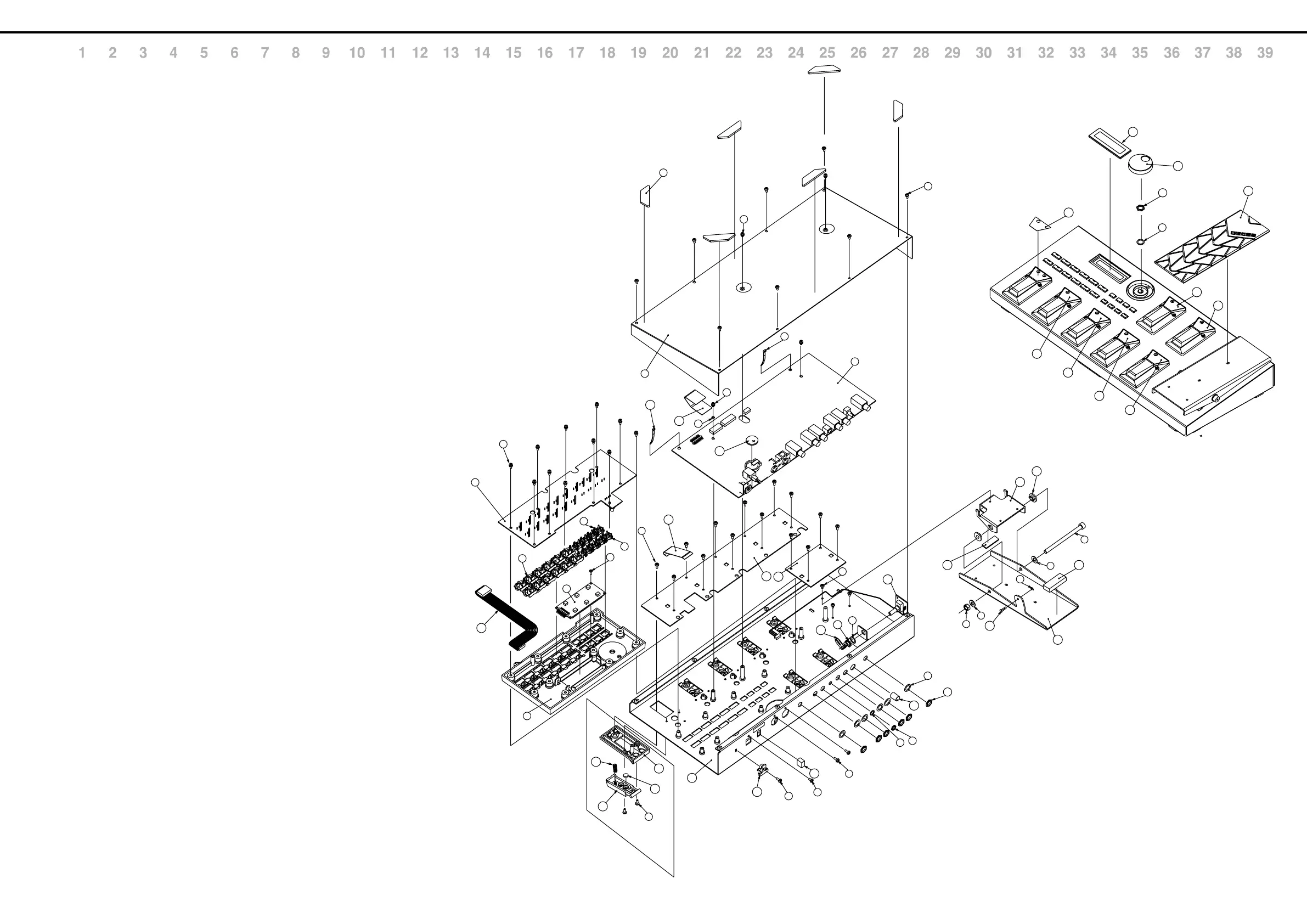

EXPLODED VIEW
[Part]
NO. PART CODE PART NAME DESCRIPTION Q'TY
q G2357108 FOOT 6
w G2817131 BOTTOM COVER 1
e 71235078 MAIN BOARD ASSY (EXG) 1
r 71235089 SW BOARD ASSY
SW BD1+SW BD2+SW BD3+EXP BRD 1
t 22495279 D S-KEYTOP MD3H BLK 249-279(W/WINDOW) 4
y 00904256 D S-KEYTOP D S-KEYTOP SX4H BLK 1
u 00900178 D S-KEYTOP SD4H BLK 1
i F5029404 LCD WD-C1602R-2BLYC 1
o G2567103 MAIN ESCUTCHEON 1
!0 F3479101 FFC CARD 14P L=80MM 1
!1 G3467132 WIRING 16P L=230MM 1
!2 71235089 SW BOARD ASSY SW BD1+SW BD2+SW BD3+EXP BRD 1
!3 G2017129 TOP COVER 1
!4 G2227301 ESCUTCHEON 7
!5 G2187602 SWITCH PEDAL 7
!6 G2177103 SUPPORT SPRING 7
!7 G2357109 PEDAL FOOT 7
!8 22360712 CORD HOOK 236-712 1
!9 12499175 G S-BUTTON S1H BLK 249-175 1
@0 01340412 P R-KNOB SF-A BGLK/LCG 1
@1 G2147116 SHAFT STAY 1
@2 71235089 SW BOARD ASSY SW BD1+SW BD2+SW BD3+EXP BRD 1
@3 G2187517 VR PEDAL 1
@4 G2147117 PIN STAY 1
@5 G2147115 PEDAL HOLDER 1
@6 G2147119 BOLT HOLDER 1
@7 G2357110 CUSHION F 1
@8 G2357111 CUSHION R 1
@9 G2357112 VR PLATE 1
#0 G2567104 DISPLAY COVER LCD COVER 1
#1 22485303 D R-KNOB L BLK 248-303 1
#2 G2217705 PEDAL LABEL(1) 1
#3 G2217706 PEDAL LABEL(2) 1
#4 G2217707 PEDAL LABEL(3) 1
#5 G2217708 PEDAL LABEL(4) 1
#6 G2217710 PEDAL LABEL(CTL) 1
#7 G2217709 PEDAL LABEL(DOWN) 1
#8 G2217711 PEDAL LABEL(UP) 1
#9 F3479102 FFC CARD 18P L=115MM 1
$0 71235089 SW BOARD ASSY SW BD1+SW BD2+SW BD3+EXP BRD 1
$1 12569249S0 LITHIUM BATTERY 220MAH/3V CR2032 (=12569249) 1
$2 40016523 INSULOK TIE 100M/M T-18R << ORDERING PER 1000 PCS >>
[Screw]
NO. PART CODE PART NAME DESCRIPTION
a 40342712 SCREW M3×6 PAN MACHINE W/SW+SMALL PW BZC
b 40013067 SCREW M3×8 PAN SEMS FE ZC
c 40012867 SCREW M3×8 PAN HEAD DOUBLE SEMS FE ZC
d 40012534 SCREW M3×6 BINDING S-TITE FE BZC
e 40342701 SCREW M2.3×8 BINDING TAP TIGHT P ZC
f 40011312 SCREW M3×8 BINDING P-TITE FE BZC
g 40019123 SCREW M3×8 BINDING S-TIGHT BZC
h 40127689 SCREW M3×10 BINDING TAPTIGHT S TYPE FE BZC
i 40342690 HEX BOLT M6×85 HALF THREAD BZC
j 40016001 LOCK NUT M6 U BZC
k 40015901 E-RING M2.5 SUS
l 40016067 PLAIN WASHER 6×13×1 BZC
m 40123545 NUT M9×11×2 (JACK) FE NI
n 40016467 JACK WASHER M9.2×14×0.5 FENI
o 40016445 NUT (JACK) HAJ-0999-01-190
p 40016456 WASHER (JACK) HSJ-0999-01-210
q 40011878 M3 EXTERNAL TOOTH WASHER FECM
1
x6
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
40
20
21
22
23
24
25
26
2728
39
42
b
x2
r
q
d
x8
c
x11
a
x2
e
f
x14
g
x2
h
d
f
x2
m
n
o
p
x6
x6
n
m
d
x3
i
l
l
j
k
41
x4
x7
29
30
31
32
33
34
35
36
37
38
m
n
