15
Mar. 2006 HPD-10
Details for Tests

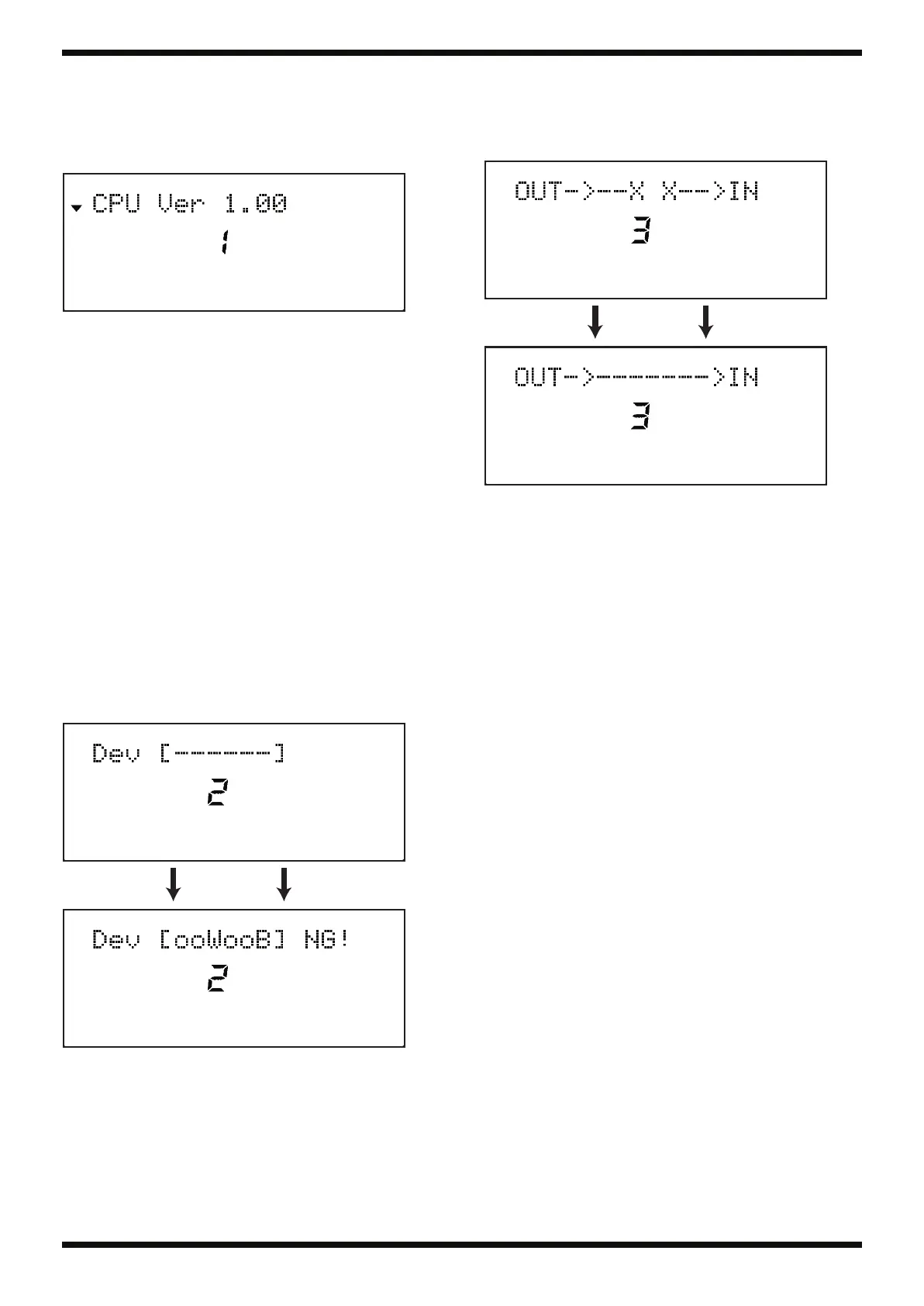

(1) Version [1. Version]
1.
Check the version.
fig.test01.eps_35
2.
Press [1 (CONGA)], [2 (TABLA)] and [3 (STEELDRUM)] to check the each
version of CPU, FLASH and WAVE.
Usually, check the program version number.
After checking the all version numbers, press [4] to go to the next section.
CPU:
CPU version number
FLASH:
Program version number
WAVE:
Wave ROM version number
(2) Device Test [2. Device]
The test of this section is executed automatically.
Test items
•
CPU:
Checking checksum
•
FLASH:
Checking checksum
•
WAVE:
Checking reading
•
SRAM:
Checking writing/reading
•
MR3:
Checking internal memory
•
BATTERY:
Checking voltage of battery
If the item passes the test, the corresponding symbol changes from “-” to “o”;
if the item doesn’t pass, the following symbol is displayed. If all items pass, the
test advances to the next section automatically.
fig.test02.eps_35
Display the NG items
C
: CPU NG
F
: FLASH NG
W
: WAVE ROM NG
S
: SRAM NG
M
: MR3 NG
B
: Battery NG
(3) MIDI Test [3. MIDI]
1.
Connect MIDI IN and MIDI OUT with a MIDI cable.
Signal flow is detected and the following message appears in the LCD
display.
fig.test04.eps_35
2.
Pull out the MIDI connector.
Cutting off the signal flow is detected and the test advances to the next
section automatically.
Service Notes(A4)_e 15 ページ ２００６年６月１日 木曜日 午後４時５分
