16
Mar. 2006 HPD-10

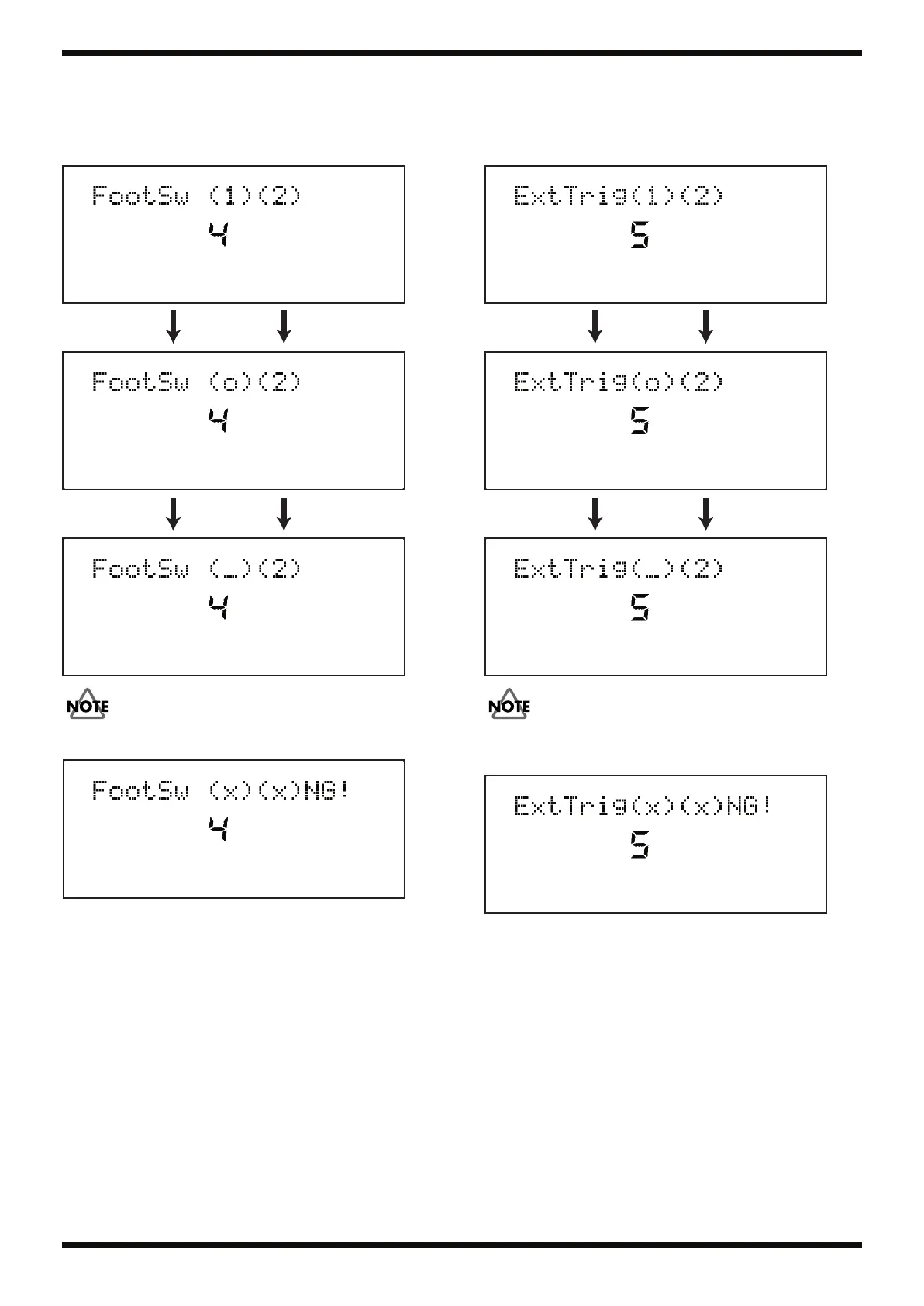

(4) Foot Switch Test [4. Foot Switch]
1.
Connect the white plug and red plug of PCS-31 to two each FS-5U, and
connect the black plug to the EXT TRIG/FOOT SW jack of the HPD-10.
2.
Step on the two FS-5U one by one.
fig.test06.eps_35
If you step on both pedals at a time, the test result comes to NG.
fig.test09.eps_35
If the test passes, the test program advances to the next section automatically.
(5) Ext Trigger Test [5. Ext Trigger]
1.
Connect the white plug and red plug of PCS-31 to two each PD-8, and
connect the black plug to the EXT TRIG/FOOT SW jack of the HPD-10.
2.
Hit the pads one by one with drum stick.
fig.test10.eps_35
If you hit both pads at a time, the test result comes to NG. Wait for one second
and more before hitting the second pad.
fig.test13.eps_35
If the test passes, the test program advances to the next section automatically.
Service Notes(A4)_e 16 ページ ２００６年６月１日 木曜日 午後４時５分
To Next Page
