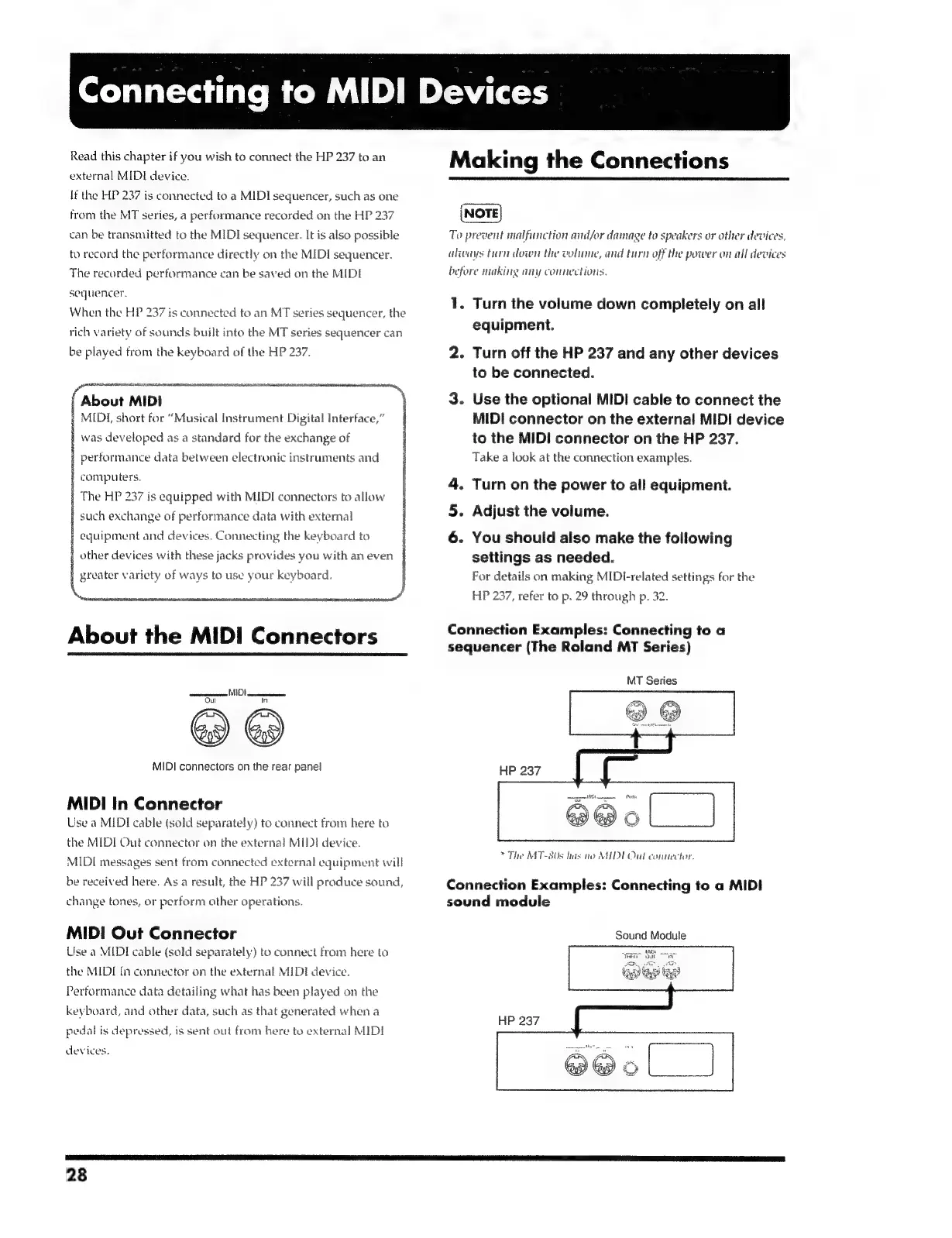

Connecting to MIDI Devices
Read this chapter if you wish to connect the HP 237 to an
external MIDI device.
If the HP 237 is connected to a MIDI sequencer, such as one
from the MT series, a performance recorded on the HP 237
can be transmitted to the MIDI sequencer. It is also possible
to record the performance directly on the MIDI sequencer.
The recorded performance can be saved on the MIDI
sequencer.
When the HP 237 is connected to an MT series sequencer, the
rich variety of sounds built into the MT series sequencer can
be played from the keyboard of the HP 237.
a
pS a
(About MIDI oa
MIDI, short for “Musical Instrument Digital Interface,”
i
|
was developed as a standard for the exchange of
| performance data between electronic instruments and
computers,
The HP 237 is equipped with MIDI connectors to allow
such exchange of performance data with external
equipment and devices. Connecting the keyboard to
|
| other devices with these jacks provides you with an even
greater varicty of ways to use your asl
RANGE
About the MIDI Connectors
MIDI connectors on the rear panel
MIDI In Connector
Use a MIDI cable (sold separately) to connect from here to
the MIDI Out connector on the external MIDI device.
MIDI messages sent from connected external equipment will
be received here, As a result, the HP 237 will produce sound,
change tones, or perform other operations.
MIDI Out Connector
Use a MIDI cable (sold separately) to connect from here to
the MIDI In connector on the external MIDI device.
Performance data detailing what has been played on the
keyboard, and other data, such as that generated when a
pedal is depressed, is sent out from here to external MIDI
devices.
Making the Connections
{NOTE}
To prevent malfunction and/or damage to speakers or other devices,
always turn down the volume, and turn off the power on all devices
before making any connections.
1. Turn the volume down completely on all
equipment.
2. Turn off the HP 237 and any other devices
to be connected.
3. Use the optional MIDI cable to connect the
MIDI connector on the external MIDI device
to the MIDI connector on the HP 237.
Take a look at the connection examples.
4. Turn on the power to all equipment.
5. Adjust the volume.
6. You should also make the following
settings as needed.
For details on making MIDI-related settings for the
HP 237, refer to p. 29 through p. 32.
Connection Examples: Connecting to a
sequencer (The Roland MT Series)
MT Series
HP 237
A
@
Ó
[|
* The MT-80s Has no MIDI Out conuector.
Connection Examples: Connecting to a MIDI
sound module
Sound Module
28
