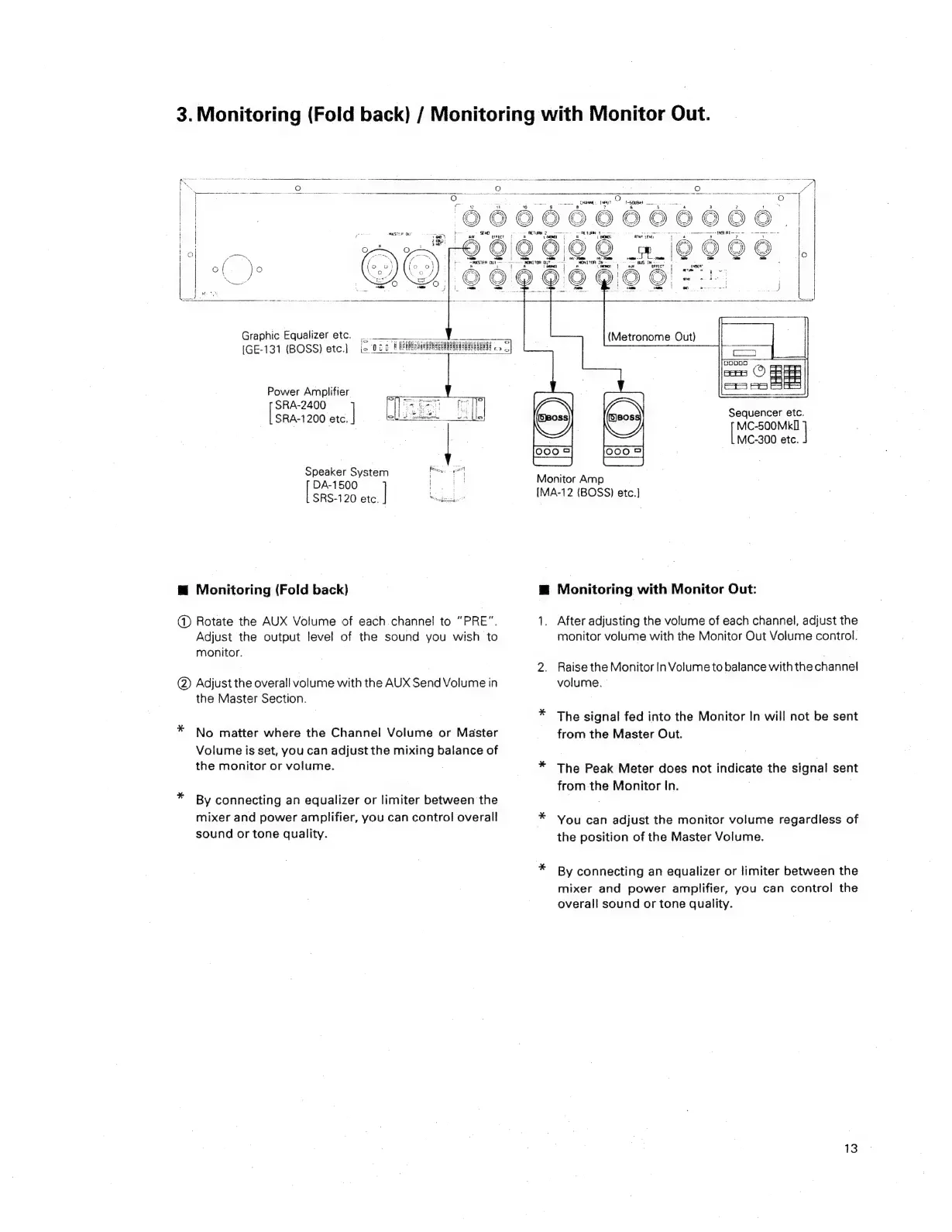

3. Monitoring (Fold back) / Monitoring with Monitor Out.
Graphic Equalizer etc.
[GE-131 (BOSS) etc.]
Power Amplifier
| SRA-2400
SRA-1200 etc.
Speaker System
DA-1500 |
SRS-120 ae |
Sy fect tt
Teh tt pn
m@ Monitoring (Fold back)
(1) Rotate the AUX Volume of each channel to “PRE”.
Adjust the output level of the sound you wish to
monitor.
(2) Adjust the overall volume with the AUX Send Volume in
the Master Section.
No matter where the Channel Volume or Master
Volume is set, you can adjust the mixing balance of
the monitor or volume.
By connecting an equalizer or limiter between the
mixer and power amplifier, you can control overall
sound or tone quality.
Sequencer etc.
| McC-500Mkil | |
MC-300 etc.
Monitor Amp
[MA-12 (BOSS) etc.]
™ Monitoring with Monitor Out:
1. After adjusting the volume of each channel, adjust the
monitor volume with the Monitor Out Volume control.
2. Raise the Monitor In Volume to balance with the channel
volume.
* The signal fed into the Monitor In will not be sent
from the Master Out.
* The Peak Meter does not indicate the signal sent
from the Monitor In. | | |
* You can adjust the monitor volume regardless of
the position of the Master Volume.
¥
By connecting an equalizer or limiter between the
mixer and power amplifier, you can control the
overall sound or tone quality.
