Roland RC-20 User Manual

RC-20 May. 2001
2

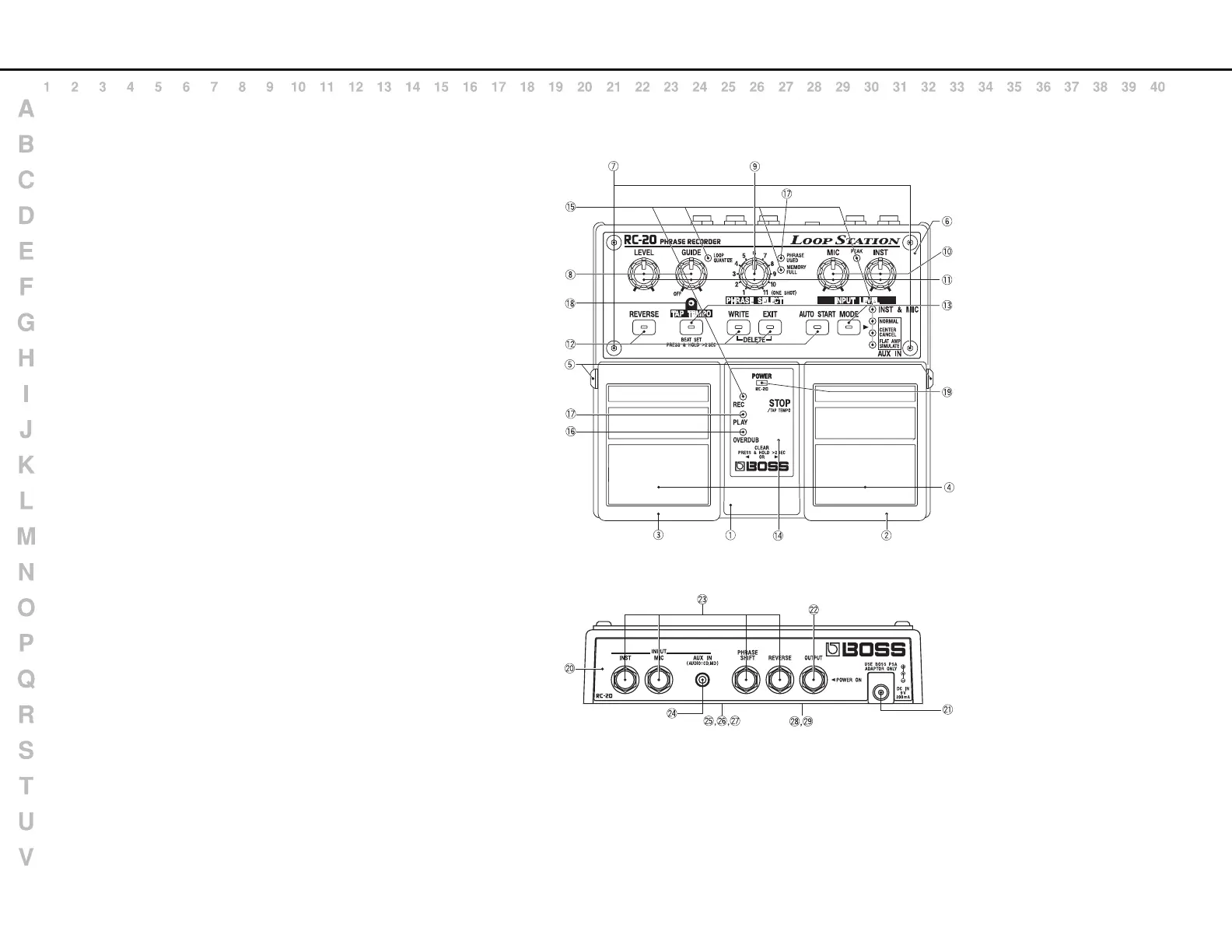

LOCATION OF CONTROLS
[Parts]
No. Part Code Part Name Q'ty
1 G2017146 CASE 1
2 G2187530 PEDAL R 1
3 G2187531 PEDAL L 1
4 G2357116 PEDAL PLATE 2
5 H5029851 PEDAL SHAFT 2
6 G2217133 PANEL 1
7 H5029850 HEXAGON SOCKET BUTTON HEAD SCREW M4x6 4
8 F3279802 POT. RD901-40-125F-B54-00D 2
9 F3279803 POT. RD901-40-125F-B54-11D 1
10 F3279805 POT. RD901-40-125F-AF5-00D 2
11 G2477122 R-KNOB 5
12 G247751001 KEYTOP S BLACK WITH LENS 4
13 G247751301 KEYTOP S WITHOUT LENS 2
14 G2217137 LED PANEL 1
15 1502928100 LED (RED) L-34HDSL 8
16 F5029125 LED (YELLOW) L-34YDSL 1
17 F5029124 LED (GREEN) L-34GDSL 2
18 15029342 LED (RED/GREEN) GL3ED8 1
19 F5029126 POWER LED L-113GDT 1
20 G2217135 REAR PANEL 1
21 F344940301 ADAPTOR JACK DJ-0711B-020 1
22 13449150MF 6.5MM JACK HTJ-064-12D 1
23 13449155MF 6.5MM JACK HTJ-064-12I 4
24 F3440404 MINI JACK AJ324A-3C 1
25 G2017621 BATTERY COVER 1
26 G2017148 BOTTOM COVER 1
27 G2357118 BOTTOM FOOT 2
28 F2539803 LABEL CAUTION 1
29 G2537848 QUICK MANUAL LABEL 1
