RC-20 May. 2001
3

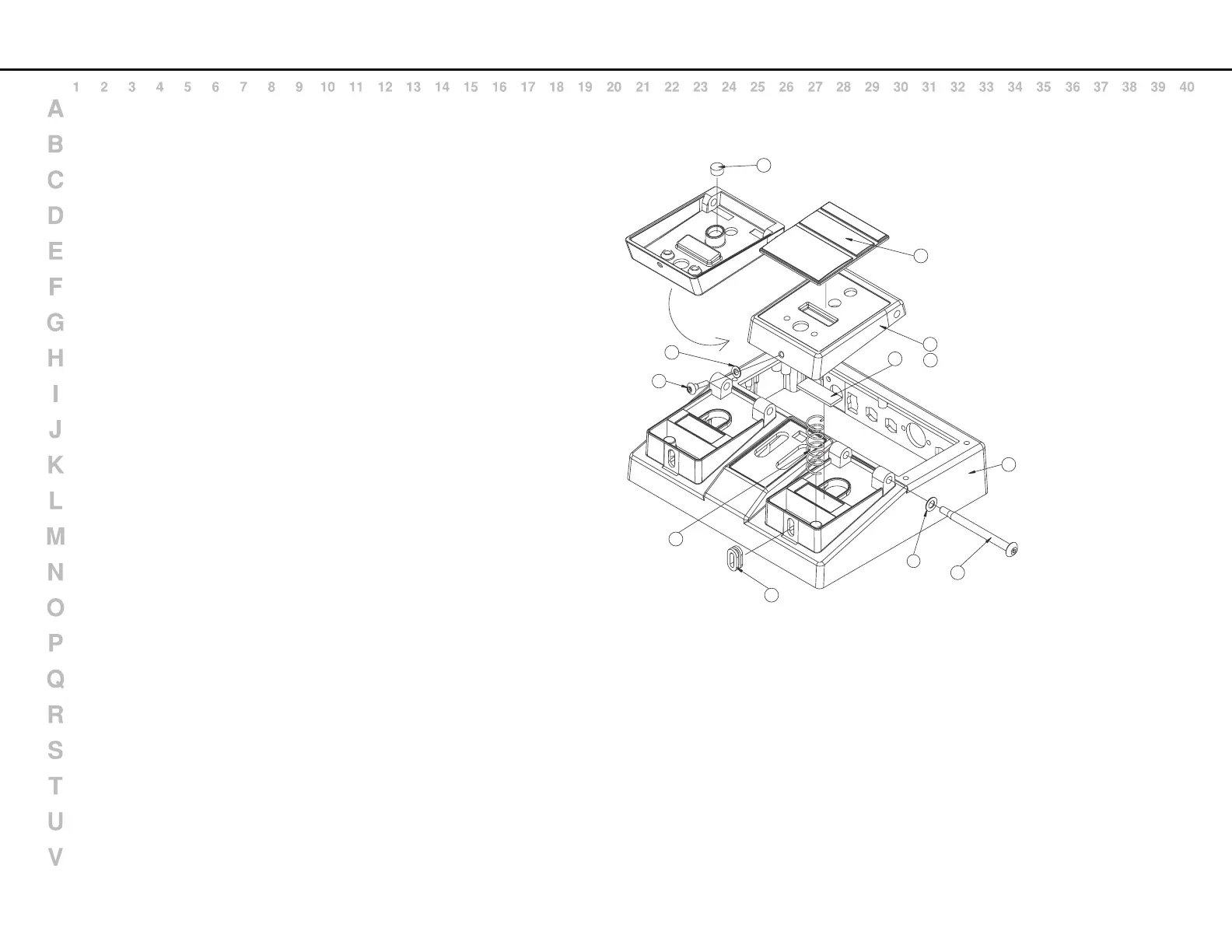

EXPLODED VIEW
[Parts]
No. Part Code Part Name Q'ty
1 G2017146 CASE 1
2 G2357111 CUSHION R 2
3 H5029851 PEDAL SHAFT 2
4 2215770201 PEDAL GUIDE BUSH 2
5 G2177104 SPRING 2
6 G2357116 PEDAL PLATE 2
7 G2357115 PEDAL FOOT 2
8 G2187530 PEDAL R 1
9 G2187531 PEDAL L 1
10 G2017148 BOTTOM COVER 1
11 G2357118 BOTTOM FOOT 2
12 G2017621 BATTERY COVER 1
13 G2017620 BATTERY CASE V6 1
14 G2177308 BATTERY TERMINAL(+) 1
15 G2177309 BATTERY TERMINAL(-) 1
16 G2177307 BATTERY TERMINAL(+/-) 1
17 G2257130 BATTERY INSULATING SHEET 1
18 F2539803 LABEL CAUTION 1
19 G2537848 QUICK MANUAL LABEL 1
21 G2477122 R-KNOB 5
22 G2257129 INSULATING SHEET CENTER 1
23 G2257131 INSULATING SHEET BOTTOM 1
24 G2217133 PANEL 1
25 G2217135 REAR PANEL 1
26 G2217137 LED PANEL 1
32 G247751301 KEYTOP S WITHOUT LENS 2
33 G247751001 KEYTOP S BLACK WITH LENS 4
43 G2197502 MINI JACK HOLDER 1
[Screws]
No. Part Code Part Name Q'ty
a H5019115 SCREW 3x8 PAN TAPPING-2 BZC 2
b H5019110 SCREW 3x6 PAN TAPPING-2 FEZC 13
c H5029850 SCREW M4x6 HEXAGON SOCKET BUTTON HEAD FENI 4
d 40011923 INTERNAL TOOTH WASHER M9.5x12.5x0.5 FENI 3
e 40016467 JACK WASHER M9.2x14x0.5 FENI 5
f 40123545 JACK NUT M9x11x2 NI 5
g H5029852 SCREW 4M3 HEXAGON SOCKET BUTTON HEAD FEBZC 2
h H5039413 NYLON WASHER M4.1x7.5x0.5 BLACK 2
i H5039414 NYLON WASHER M5.1x9.5x0.5 BLACK 2
j H5019430 SCREW 2.6x5 BINDING TAPTITE P FEZC 2
k H5039521 VR ACCESSORY NUT M7 5
m H5029325 SCREW 3x6 PAN HEAD TAPTITE-2 BZC 5
n H5039324 MINI JACK NUT M6 FENI 1
1
2
5
3
i
4
g
h
RIGHT SIDE
LEFT SIDE
9
6
7
8
