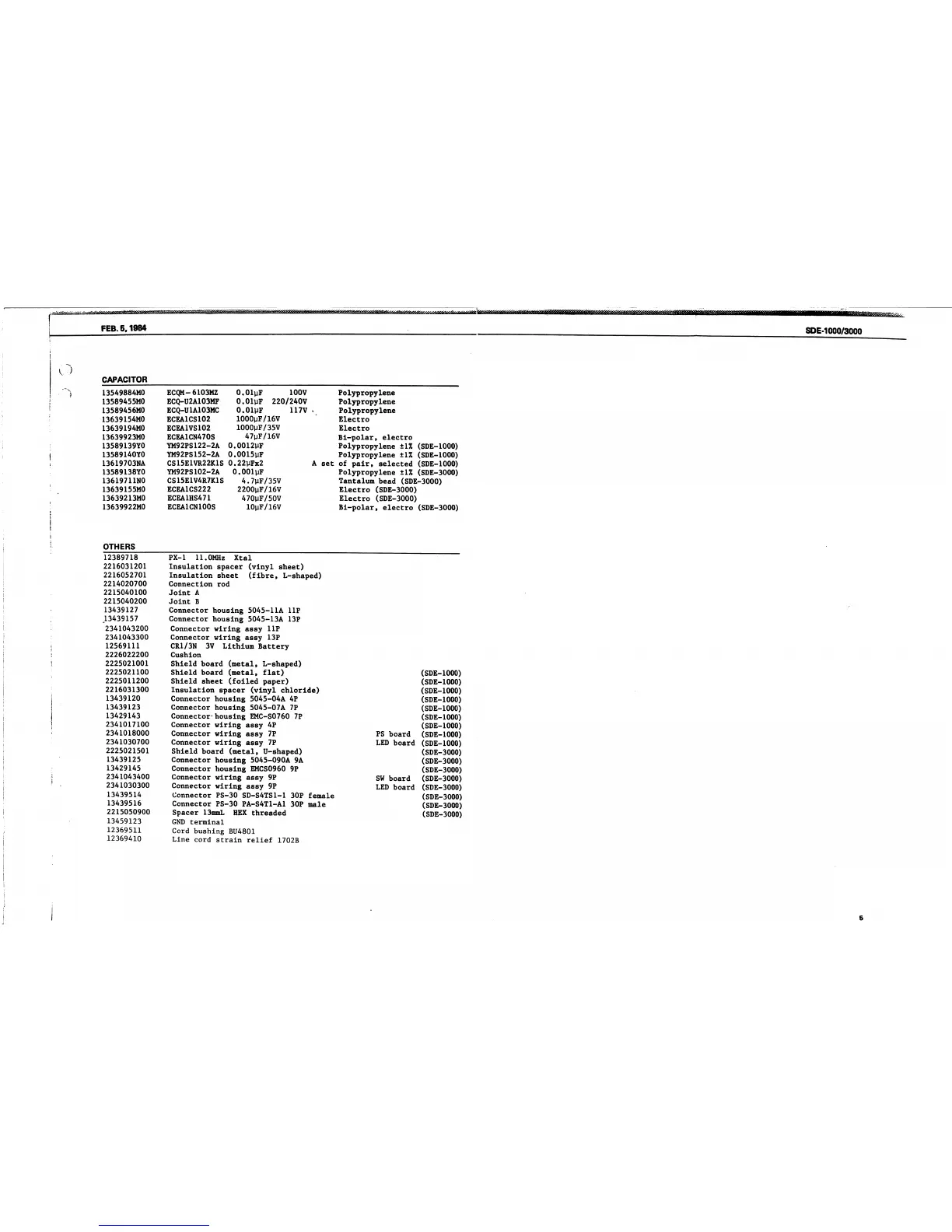

Roland SDE-3000 Service Notes

FEB. 5,1984
SDE-1000/3000
CAPACITOR
13549884M0
13589455M0
13589456M0
13639154M0
13639194M0
13639923M0
13589139Y0
1358914OY0
13619703NA
13589138Y0
13619711N0
13639155M0
13639213M0
13639922M0
ECQM-6103MZ
ECQ-U2A103MF
ECQ-U1A103MC
ECEA1CS102
ECEA1VS102
ECEA1CN470S
YM92PS122-2A
YM92PS152-2A
CS15E1VR22K1S
YM92PS102-2A
CS15E1V4R7K1S
ECEA1CS222
ECEA1HS471
ECEA1CN100S
O.OlyF 1OOV
O.OlyF 220/240V
O.OlyF 117V
1000yF/16V
1000yF/35V
47yF/16V
O,OO12yF
O.OO15yF
0.22yFx2
O.OOlyF
4.7yF/35V
2200yF/16V
470yF/50V
10yF/16V
Polypropylene
Polypropylene
Polypropylene
Electro
Electro
Bi-polar, electro
Polypropylene ±1% (SDE-1OOO)
Polypropylene ±1% (SDE-1000)
set of pair, selected (SDE-1000)
Polypropylene ±1% (SDE-3000)
Tantalum bead (SDE-3000)
Electro (SDE-3000)
Electro (SDE-3000)
Bi-polar, electro (SDE-3000)
OTHERS
12389718 PX-1 11.0MHz Xtal
2216031201 Insulation spacer (vinyl sheet)
2216052701 Insulation sheet (fibre, L-shaped)
2214020700 Connection rod
2215040100 Joint A
2215040200 Joint B
13439127 Connector housing 5045-11A IIP
.13439157 Connector housing 5045-13A 13P
2341043200 Connector wiring assy IIP
2341043300 Connector wiring assy 13P
12569111 CR1/3N 3V Lithium Battery
2226022200 Cushion
2225021001 Shield board (metal, L-shaped)
2225021100 Shield board (metal, flat)
2225011200 Shield sheet (foiled paper)
2216031300 Insulation spacer (vinyl chloride)
13439120 Connector housing 5045-04A 4P
13439123 Connector housing 5045-07A 7P
13429143 Connector-housing EMC-S0760 7P
2341017100 Connector wiring assy 4P
2341018000 Connector wiring assy 7P
2341030700 Connector wiring assy 7P
2225021501 Shield board (metal, U-shaped)
13439125 Connector housing 5045-090A 9A
13429145 Connector housing EMCS0960 9P
2341043400 Connector wiring assy 9P
2341030300 Connector wiring assy 9P
13439514 Connector PS-30 SD-S4TS1-1 30P female
13439516 Connector PS-30 PA-S4T1-A1 30P male
2215050900 Spacer 13mmL HEX threaded
13459123 GND terminal
12369511 Cord bushing BU4801
12369410 Line cord strain relief 1702B
PS board
LED board
SW board
LED board
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-1000)
(SDE-3000)
(SDE-3000)
(SDE-3000)
(SDE-3000)
(SDE-3000)
(SDE-3000)
(SDE-3000)
(SDE-3000)

Roland SDE-3000 Specifications

General

Type	Digital Delay
Output Impedance	1 kOhm
Inputs	1/4" phone jack
Outputs	1/4" phone jack
Total Harmonic Distortion	0.05%
Power Supply	AC 117 V
