Roland SP-404SX Service Notes

4
Sep. 2009 SP-404SX

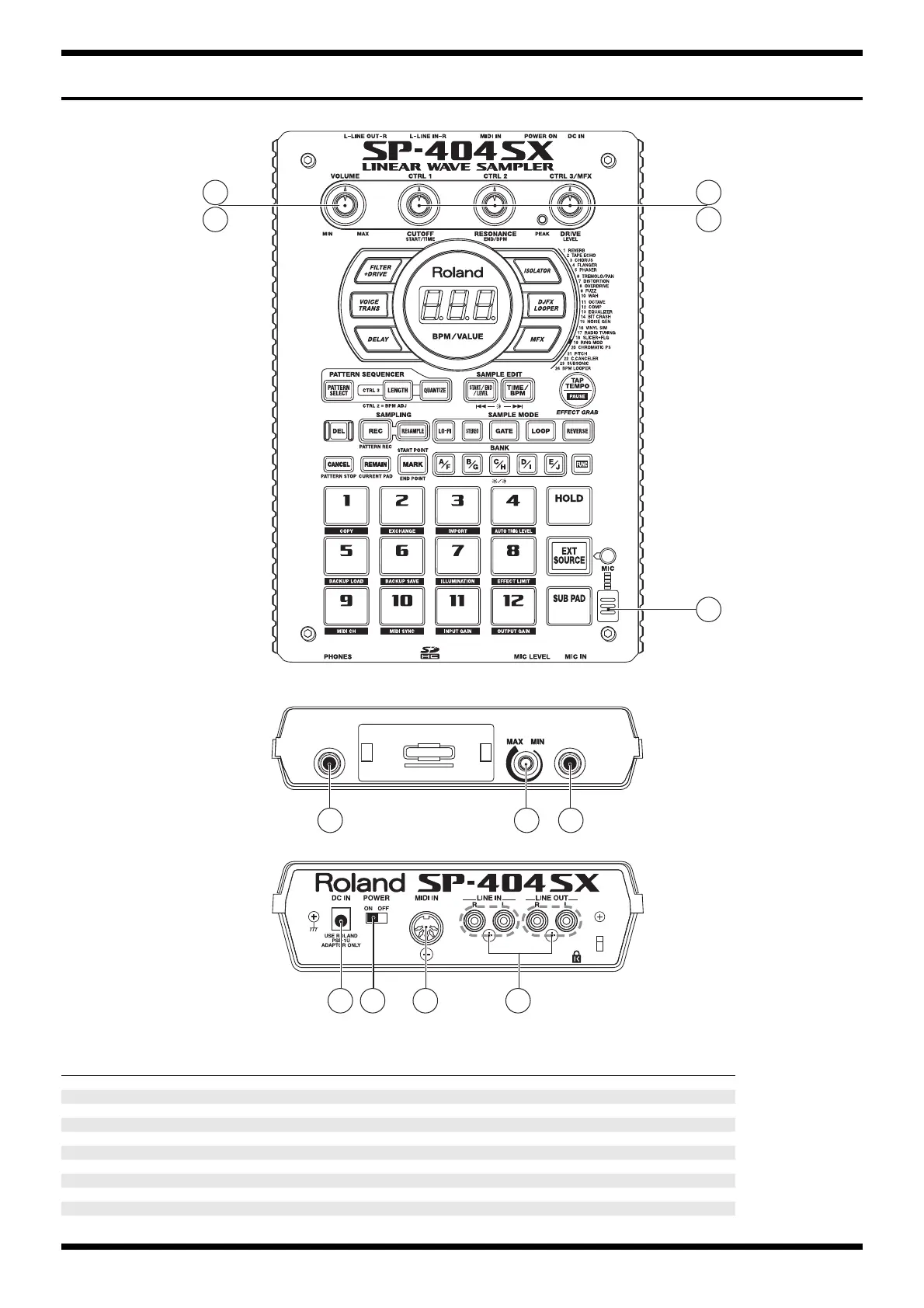

Location of Controls
fig.PANEL.eps
1 1
10
8 9 8
67 5
2 3
4
No. Part Code Part Name Description Q’ty
1 03565234 J R-KNOB SF-ELA BLK/SLV 4
2 04011745 ROTARY POTENTIOMETER RK09K12C0A8H 1
3 03679256 ROTARY POTENTIOMETER RK09D1130C5B 3
4 01899801 RCA(PIN) JACK YKC21-3834N 2
5 01566445 DIN CONNECTOR YKF51-5067 1
6 02671312 SLIDE SWITCH SLG-22-465 1
7 13449711 AC ADAPTOR JACK HEC0470-01-630 1
8 13449275 6.5MM JACK YKB21-5074 2
9 13279884 POTENTIOMETER RK09K1110A0J 10KB 1
10 03679190 MIC WM-64PNT 1

Roland SP-404SX Specifications

General

Display type	LED
Built-in display	Yes
Display number of characters	3
Bit rate	16 bit
Sample rate	44.1 kHz
Number of pads	13
Number of samples	120
Maximum polyphony (notes)	12
Battery type	AA
Battery voltage	9 V
Power source type	AC, Battery
Number of batteries supported	6
Compatible memory cards	SD
Included memory card size	1 GB

Weight and Dimensions

Depth	257 mm
Width	178 mm
Height	72 mm
Weight	1200 g
