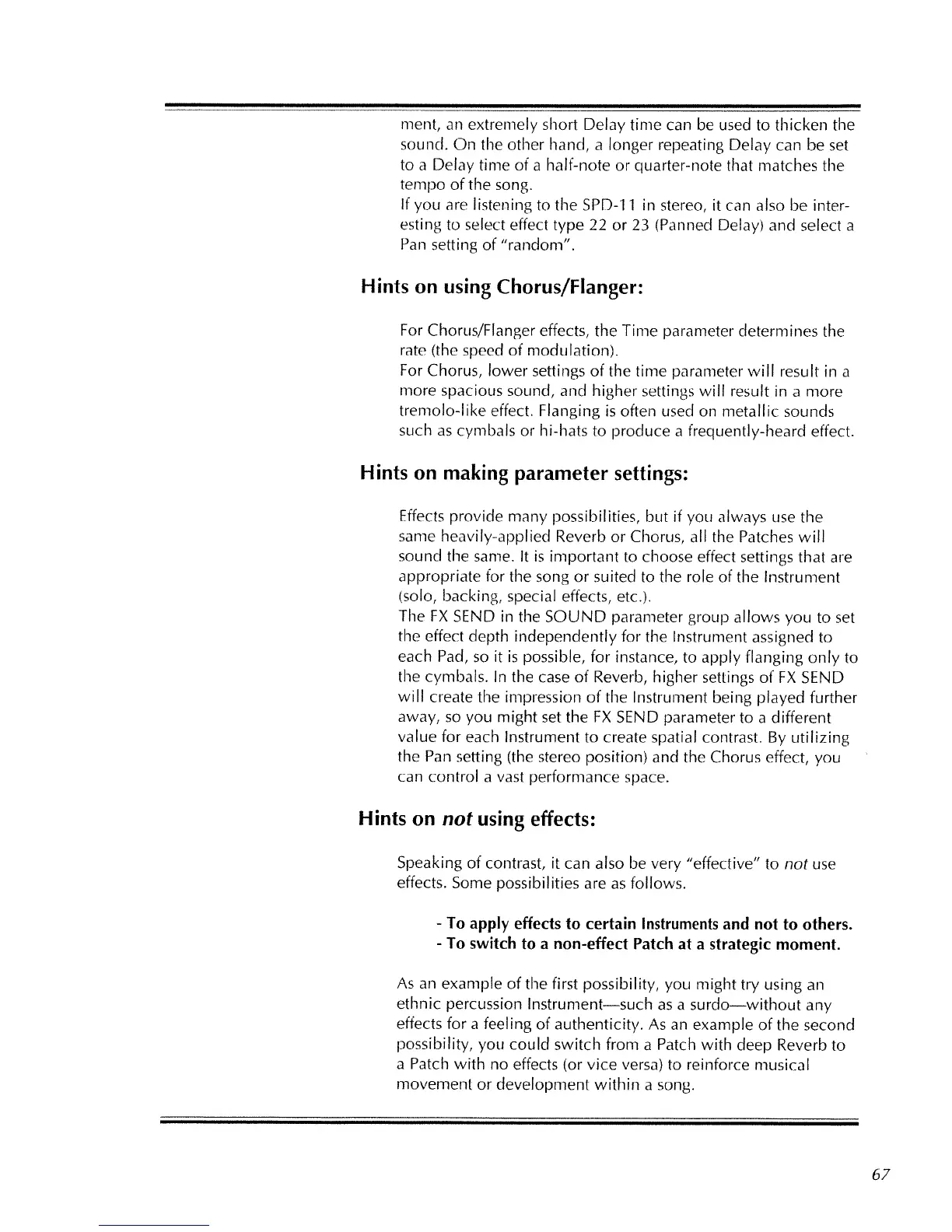

Roland SPD-11 - Hints on Using Chorus;Flanger; Hints on Making Parameter Settings; Hints on Not Using Effects
