Chapter 2 Using the XV-5080 Effects
Chap.2
55:STEREO COMPRESSOR
fig.2-65
Compressor
Attack
Adjust the attack time of an input sound.
Sustain
Adjust the time over which low level sounds are boosted
until they reach the specified volume.
Post Gain
Adjust the output gain.
EQ Gain
Low (Low Gain)
Adjust the low frequency gain (amount of boost or cut).
Positive (+) settings will emphasize (boost) the low
frequency range.
High (High Gain)
Adjust the high frequency gain (amount of boost or cut).
Positive (+) settings will emphasize (boost) the high
frequency range.
Output
Level (Output Level) #
Adjust the output level.
56:STEREO LIMITER
fig.2-66
Limiter
Threshold (Threshold Level)
Adjust the volume at which compression will begin.
Ratio (Compression Ratio)
Adjust the compression ratio.
Release (Release Time)
Adjust the time from when the volume falls below the
Threshold Level until compression is no longer applied.
Post Gain
Adjust the output gain.
EQ Gain
Low (Low Gain)
Adjust the low frequency gain.
High (High Gain)
Adjust the high frequency gain.
Output
Level (Output Level) #
Adjust the output level.

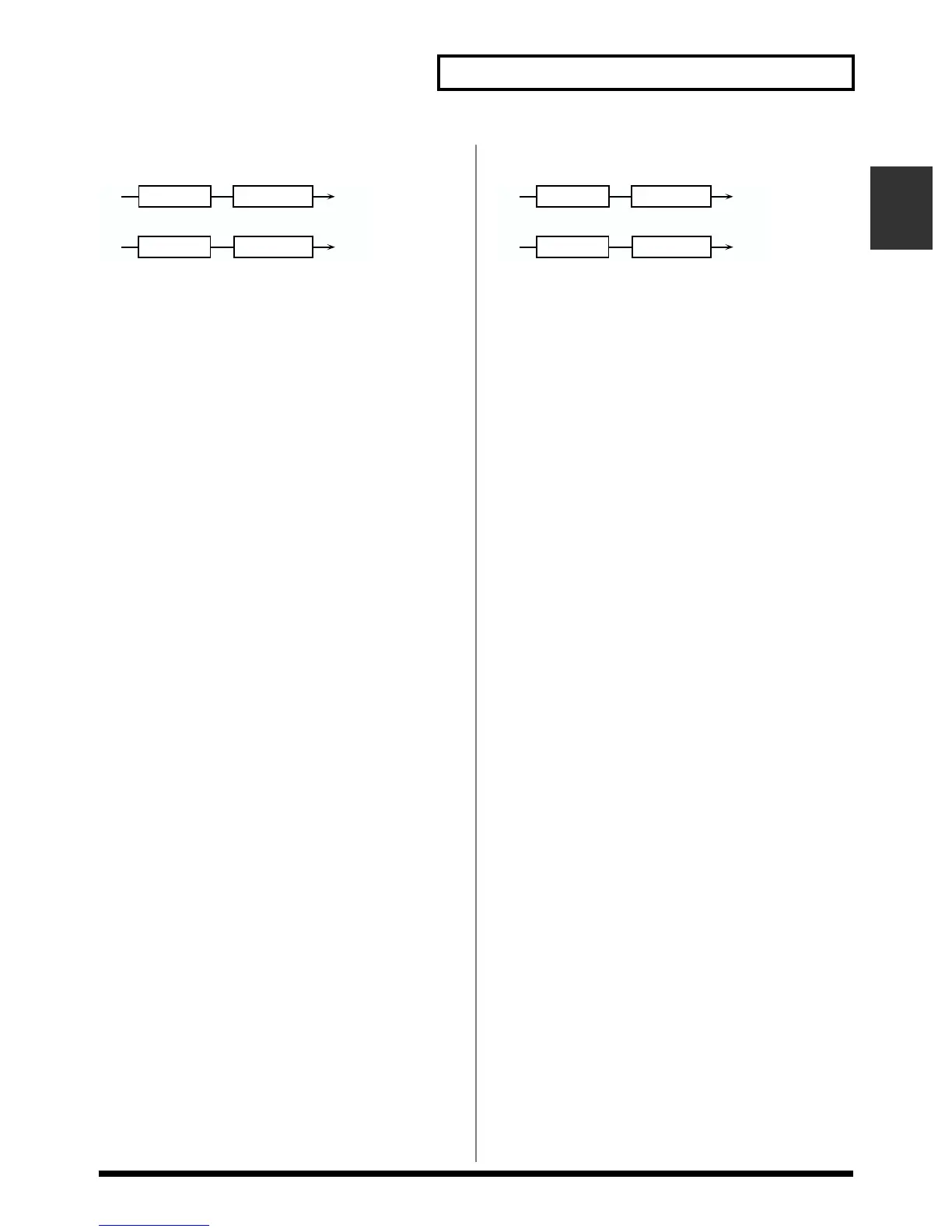

L in
R in
L out
R out
Compressor
2-Band EQ
2-Band EQ
Compressor
L in
R in
L out
R out
Limiter
2-Band EQ
2-Band EQ
Limiter
