11

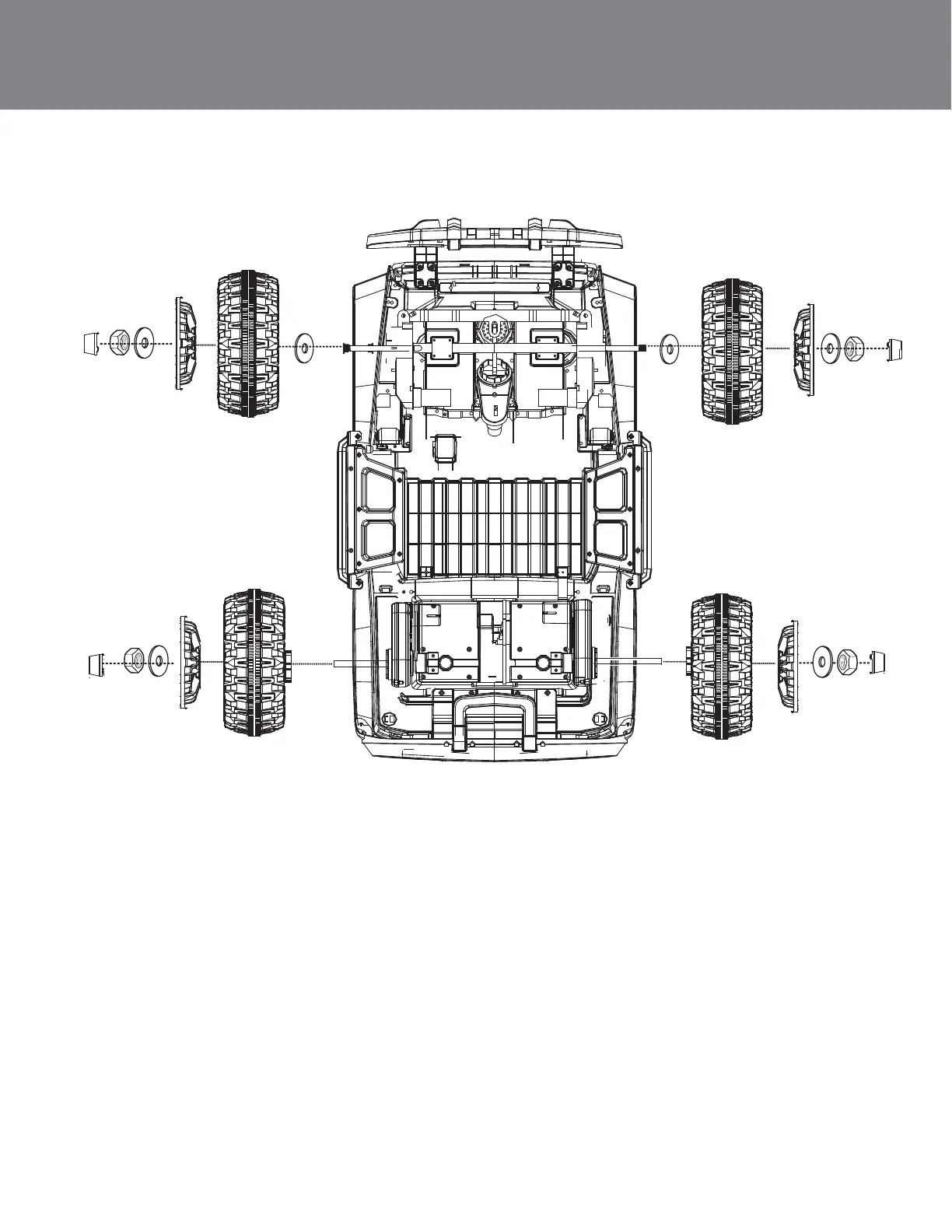

Assemble the Wheels
1. Locate the Wheels (3), Washers, Nuts (20), Wheel Covers (4), Wheel Cap (5) and
Hex Wrench (13).
2. Slide a Washer onto one of the Front Axles, then slide on a Front Wheel.
3. Snap a Wheel Cover (4) onto the Wheel, then slide another Washer and a Nut on
the axle.
4. Use the Hex Wrench to tighten the Nut. Then, snap a Wheel Cap (5) onto the
Wheel Cover to complete the wheel assembly.
5. Repeat steps 1-4 for the other Front Wheel.
6. On a rear axle, slide on a Rear Wheel. The gear teeth on the Wheel should engage
with the Gear Box (8).
7. Snap on a Wheel Cover, then slide a Washer, followed by a Nut onto the Axle.
8. Tighten the Nut using the included Hex Wrench. Then, snap a Wheel Cap (5) onto
the Wheel Cover to complete the wheel assembly.
9. Repeat steps 6-8 with the other Rear Wheel.
