Room essentials 430238 - Drawer Assembly: Front Brackets

16

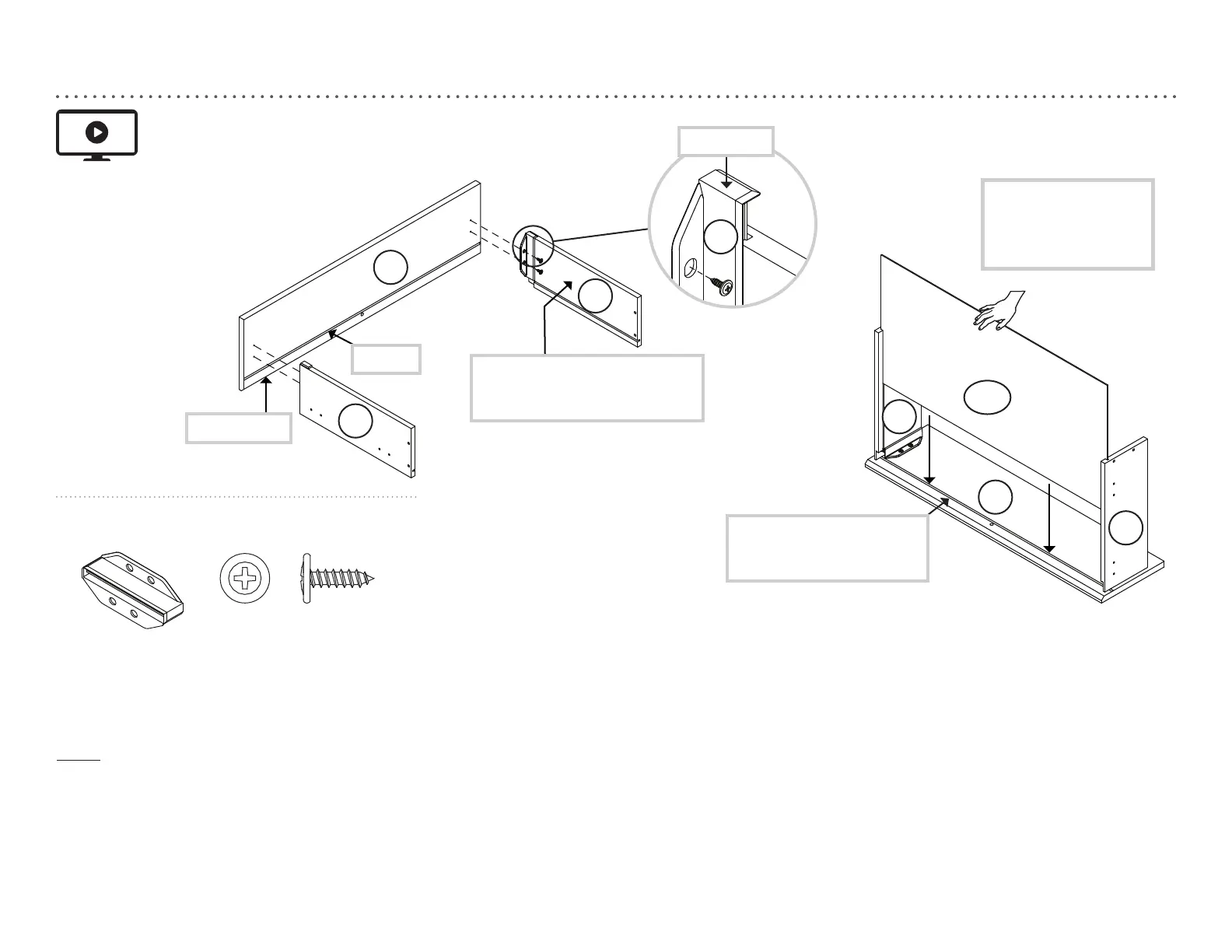

Pull the DRAWER FRONT BRACKETS (8G) apart and slide them into the grooves in the DRAWER SIDES (D44 and D45). You may need to gently tap them in
with a hammer.
NOTE: The DRAWER FRONT BRACKETS are marked "RH" and "LH" for easy identifi cation.
Fasten the DRAWER FRONT BRACKETS (8G) to the UPPER DRAWER FRONT (H). Use four BLACK 9/16" LARGE HEAD SCREWS (1S).
Slide a DRAWER BOTTOM (D988) into the grooves in the DRAWER SIDES (D44 and D45) and UPPER DRAWER FRONT (H).
430238
step 11.
Push down
8G
(1S) x 16
black 9/16" large head screw
(8G) x 4
drawer front bracket
With the palm of
your hand, tap the
DRAWER BOTTOM
down into the groove.
D988
H
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
VIEW THE T-SLOT BOX VIDEO
Unfi nished surface
D44
H
D45
Angled edge
Groove
The drawer side with label
must be fastened to the
UPPER DRAWER FRONT (H).
D44
D45
