３．Specifications

Supply voltage Single 18 to 40VDC (including ripple)

Supply current Approx. 1.2 times rated coil current of motor (max.)

Motor current 0.3 to 3A/phase (Adjustable by Run Current Adjustment Trimmer)

Drive method Unipolar, constant current chopper method

Excitation method Microstep

Microstep resolution Up to 400 microsteps/step

Position repeatability

±1 microstep with no load in one direction

(with 50 microsteps/step)

Auto. current down 0 to 80% of the run current after about 0.3 seconds of inactivity

according to stop current setting. (Setting at shipment is 50 %)

Even if the motor rotation is stationary, the auto. current down

doesn’t work under the condition applying voltage between clock

input terminals.

Protective circuitry Overheat, over current and low supply voltage protection

Response frequency 500 kpps max. (at 4.5V to 5.5V)

Weight Approx. 250g (8.8oz.)

Outside dimensions 27.5H x 105W x 56Dmm (1.1”H x 4.1”W x 2.2”D)

４．Part Name

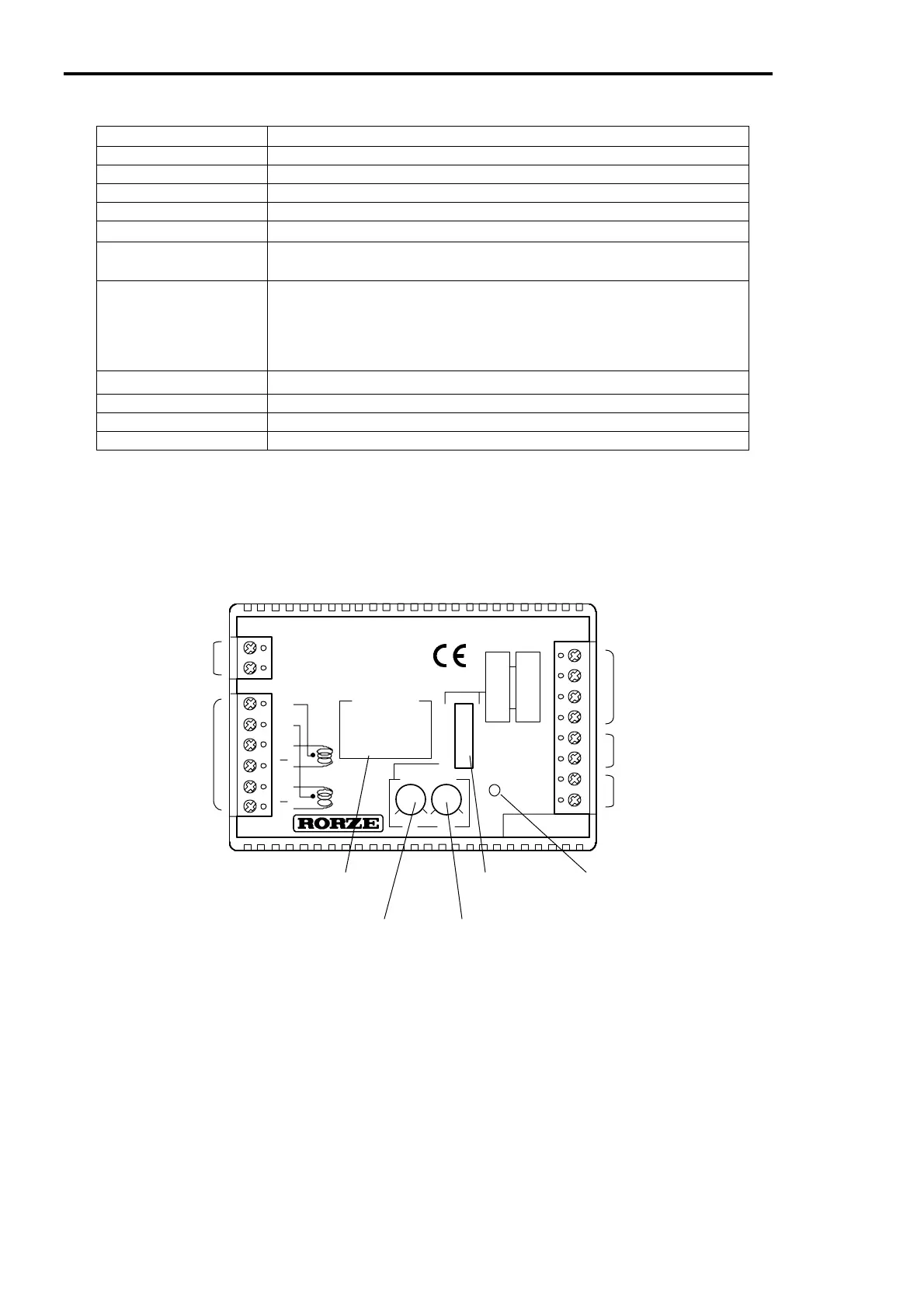

Fig.1. Name Plate
