10. Dip Switches
RD-323MS 7
１０．Dip Switches

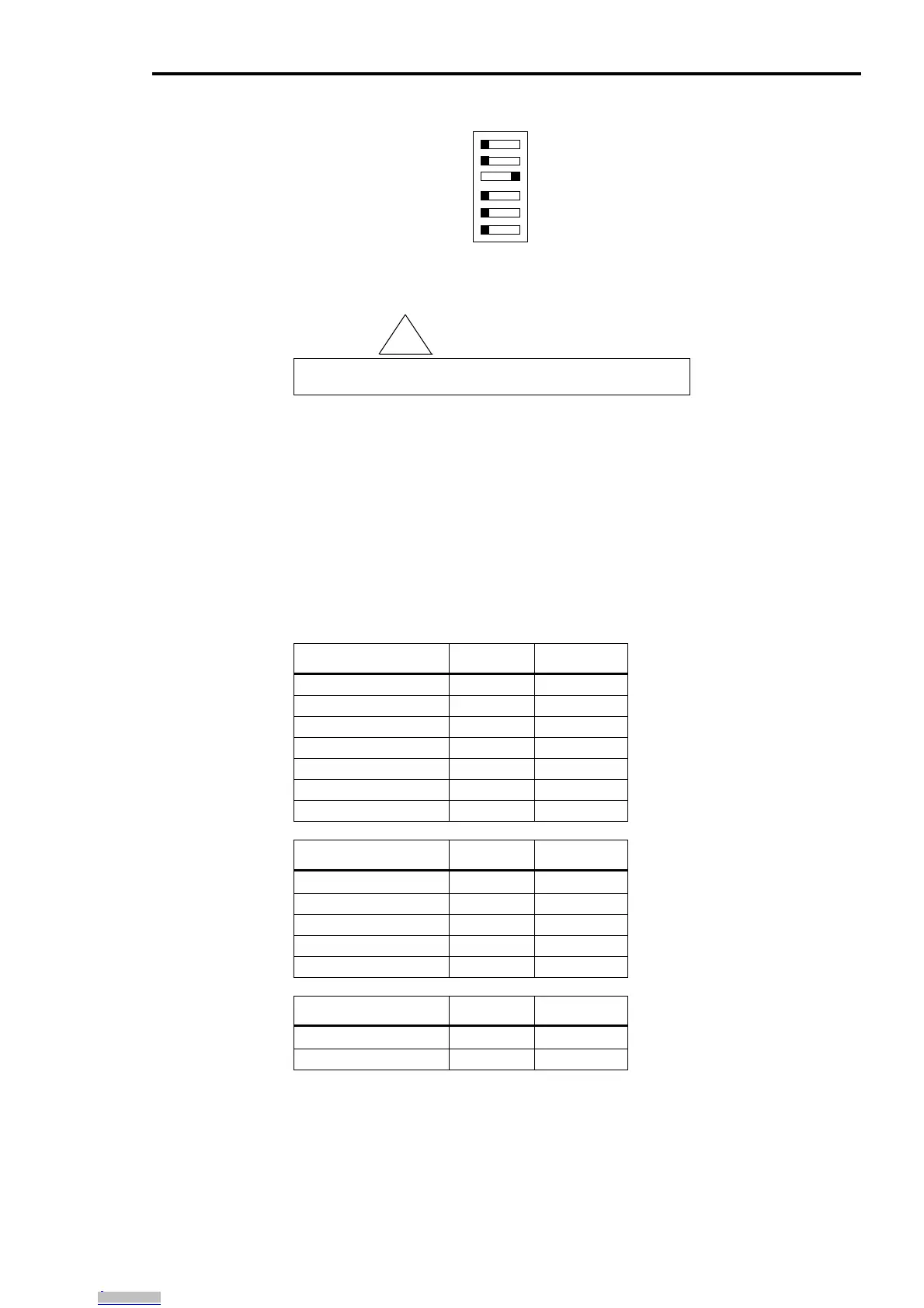

Fig.12. Dip switches
10-1 Microstep/Clockout Resolution Selection Switch (D1 to D5)
Caution
Do not set the dip switches except the below table.
It causes malfunction or failure.
The table below shows various combinations of microsteps (50, 64, or 80) and clockout.
Select the one that is most applicable to your application using dip switch D1 to D5.
1
Step angle = Motor basic step angle × ───────────
Microstep resolution
Note: The excitation method of motor is any of 50,64 or 80 microsteps/step.
･ Microstep resolution: Number of resolution per basic step angle
･ Clockout resolution: Number of pulse output per basic step angle
Dip switch setting table:
D5 D4 D3 D2 D1
Clockout
Resolution
Microstep
Resolution(M)
０ １ ０ ０ ０ ６４ ６４
０ １ ０ ０ １ ３２ ６４
０ １ ０ １ ０ １６ ６４
０ １ ０ １ １ ８ ６４
０ １ １ ０ ０ ４ ６４
０ １ １ Ｘ １ ２ ６４
０ １ １ １ ０ １ ６４
D5 D4 D3 D2 D1
Clockout
Resolution
Microstep
Resolution(M)
１ ０ ０ １ ０ ８０ ８０
１ ０ ０ １ １ ４０ ８０
１ ０ １ ０ ０ ２０ ８０
１ ０ １ ０ １ １０ ８０
１ ０ １ １ ０ ５ ８０
D5 D4 D3 D2 D1
Clockout
Resolution
Microstep
Resolution(M)
０ ０ １ ０ ０ ５０ ５０
０ ０ １ ０ １ ２５ ５０
10-2 Current Range Switch (3A/1.5A)
Sets the motor run current range when setting the run current adjustment trimmer to the max. value.
(See Fig.3)
0-1
D1
D2
D3
D4
D5
3A 1.5A
Ｘ: could be 1 or 0
！
