Wireless N Dual Band Adapter N600PCE User Manual
7
Chapter 2 Installation Guide

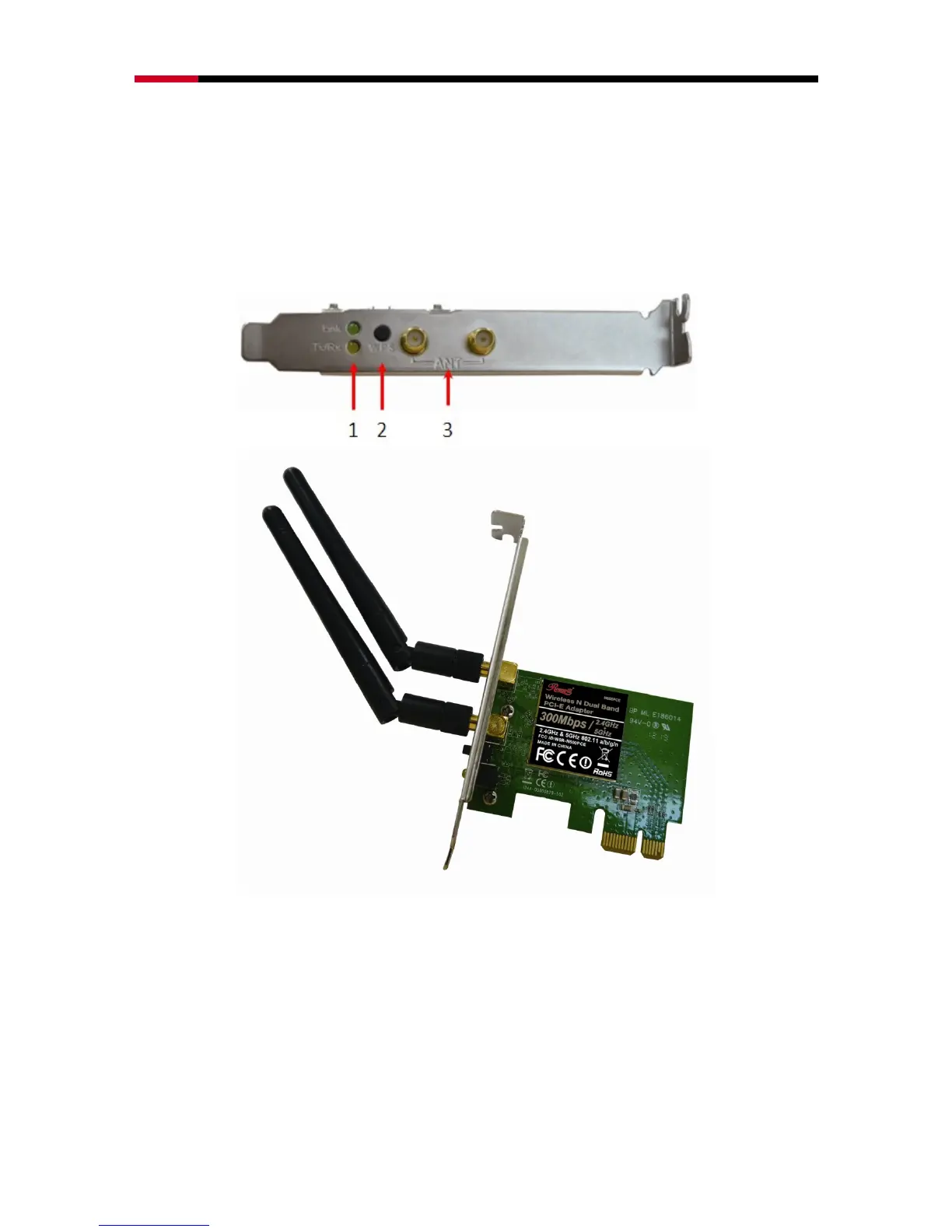

2.1 Hardware Diagram
1. Link and Tx/Rx LED
2. WPS Button
3. Antenna
2.2 PCI-Express Card Installation
1. Turn off your computer and unplug the power cord from the computer.
2. Open the case and locate an available PCI-E slot. Remove the metal slot cover on
the back of the PC. Keep the screws. Turn to your computer manufacturer for
instructions if needed.
3. Insert the PCI-E adapter into the PCI-E slot. Make sure that all of its pins have
