Wireless N Adapter RNX-N250PCe User Manual
Chapter 2 Installation Guide
2.1 Hardware Installation

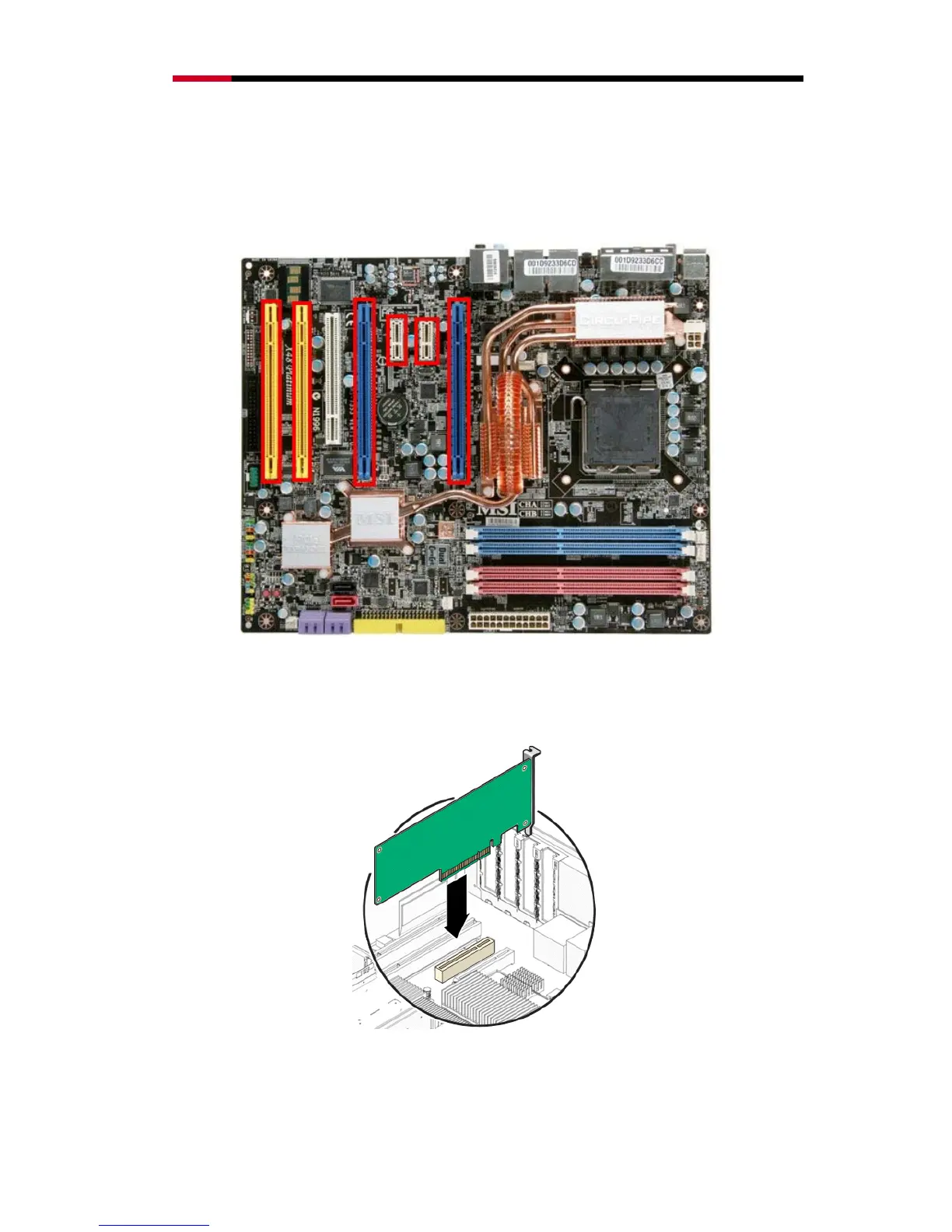

1 Make sure the computer is turned off. Remove the expansion slot cover from the
computer.
(The Highlighted slots are the PCIe slot available for RNX-N250PCe to install)
2 Carefully slide RNX-N250PCe into the PCI-E slot. Push evenly and slowly and
ensure it is properly seated. (The PCB board is only for reference)
3 Secure the screw, then the antennas on.
4 Turn on your computer. Windows detects the new hardware and prompts for Driver
installation.
8
