RÖSLE G3 - Gas Cylinder Positioning Outside the Lower Cabinet; Installation of Gas Cylinder in Lower Cabinet; Instructions for the Gas Connection; Maximum Size of Gas Cylinder

54
English
Instructionsforthegasconnection

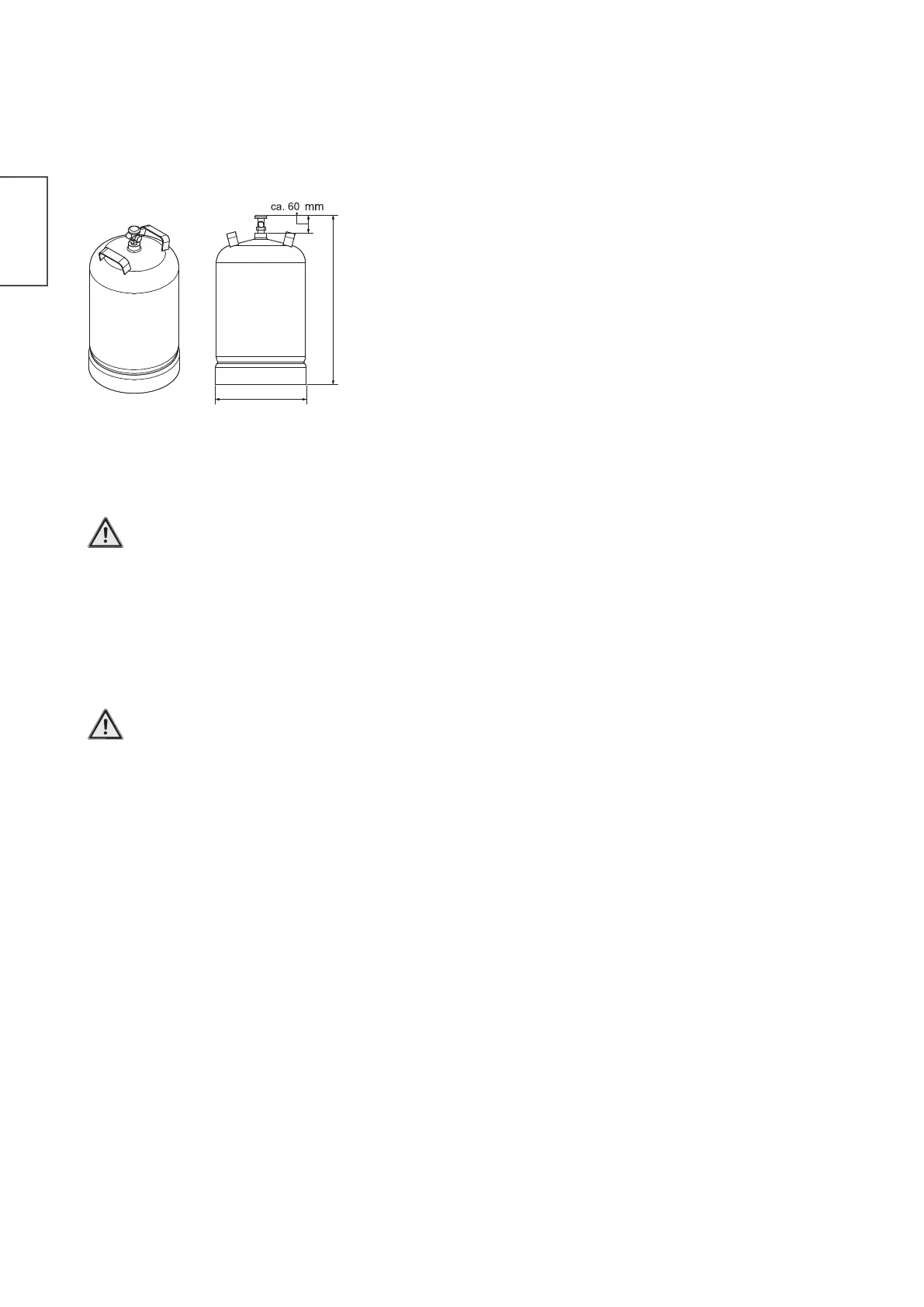

Maximumsizeofgascylinder
when placed in the cylinder holder
Installationofgascylinderinlowercabinet
The cylinder must always be installed and stored upright.
1. Open the lower cabinet.
2. Insert the gas cylinder into the cylinder holders of the base plate.
3. Turn the gas cylinder so that the valve is facing the front of the grill.
4. Place the cylinder strap around the gas cylinder.
Several gas cylinders may not be stored at the same time in the lower cabinet.
A gas cylinder that is larger than what has been approved may not be used.
Gascylinderpositioningoutsidethelowercabinet
1. Open the doors of the lower cabinet.
2. Guide the pressure regulator and the hose guide through the side opening of the lower cabinet.
3. Position the gas cylinder upright beside the grill.
4. Ensure that the gas hose is uncovered and not near hot areas.
5. Avoid twisting the gas hose unnecessarily.
6. Perform the step "Fitting the pressure regulator".
7. Once you have tted and checked the gas hose / pressure regulator connection to the gas grill, check
the connectors for leaks according to the section "Leak check".
max. 570 mm
max. 320 mm
