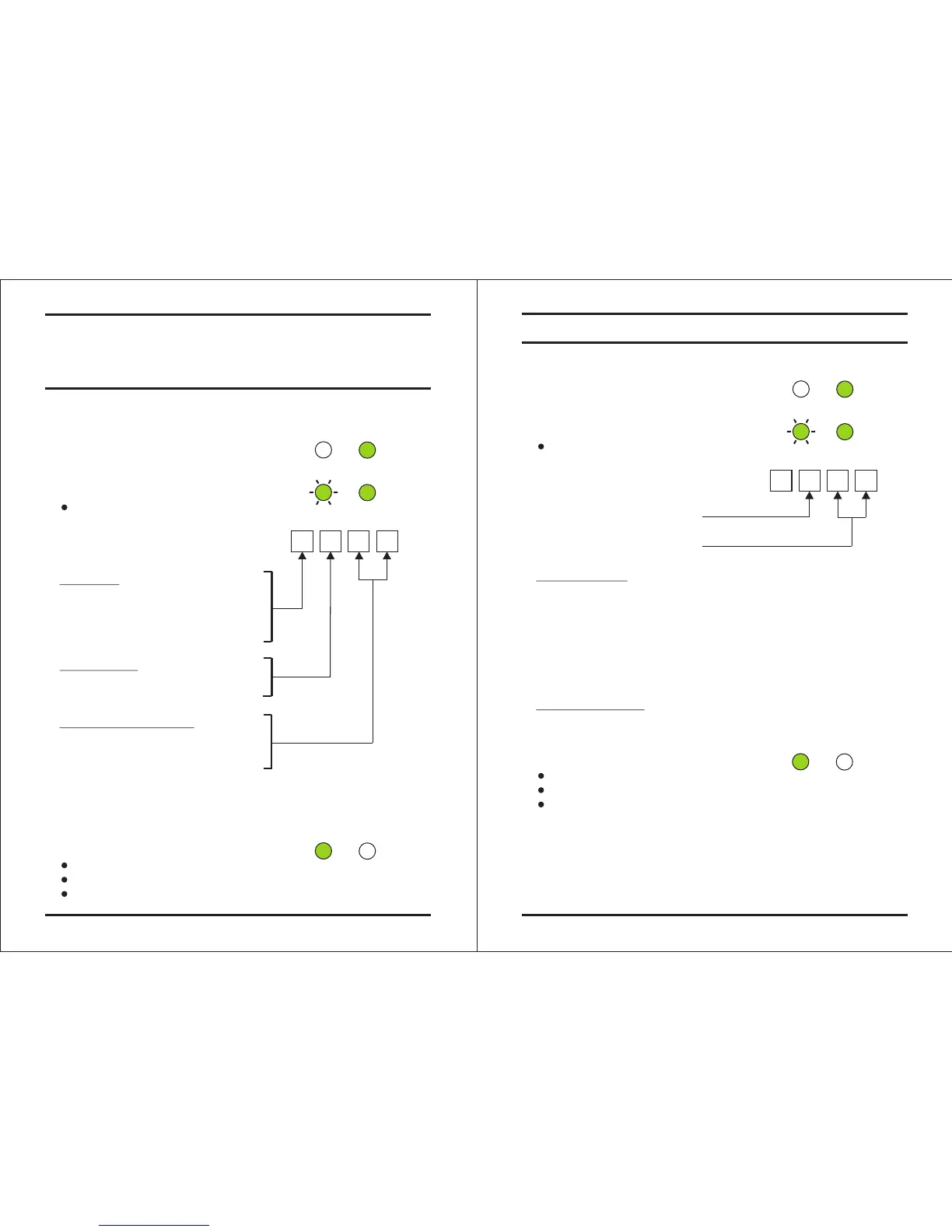

Rosslare AC-G4 Series User Manual

Page 27
07/04
Setting the Auxiliary Mode
The default auxiliary setting is 2004.
1) Enter Programming Mode
2) Press "6" to enter Menu 6
!
The Mode LED will flash green
3) Construct the 4-digit code
using the instructions below:
Auxiliary Mode
Auxiliary Setting
Auxiliary Mode
In addition to the Lock Strike Relay and Lock Strike REX, the
AC-G43 features an Auxiliary Output Relay and an Auxiliary
Input. The Auxiliary Mode defines the function of the Auxiliary
Input and Output.
The Auxiliary Mode also determines if the Auxiliary Output Relay
is set for Fail Safe or Fail Secure Operation.
Auxiliary Settings
Each of the Auxiliary Modes has a two digit setting that affects
how the Auxiliary Mode functions.
4) System returns to Normal Mode
!
You will hear three beeps
!
The Door LED will turn off.
!
The Mode LED will turn green
The Auxiliary Mode Quick Reference Table can be found on
the next page. For a more detailed explanation on each
auxiliary mode refer to the "Auxiliary Mode Reference
guide" on Page 29.
AC-G43
Mode Door
GREEN
Mode Door
GREENGREEN
2
?
?
?
Mode Door
GREEN
Setting Fail Safe/Secure Operation
Setting Tamper Siren Time
Setting the Lock Strike Release Time
The default factory setting is 0004.
The Tamper Siren feature requires the BL-D40 External Sounder.
1) Enter Programming Mode
2) Press "6" to enter Menu 6
!
The Mode LED will flash green
3) Construct the 4-digit code
using the instructions below:
First Digit
For Fail Secure Operation the first
digit should be "0"
For Fail Safe Operation the first
digit should be "1"
Second Digit
Tamper Siren Time, enter any
number from 0 to 9 minutes.
Third and Fourth Digit
Enter the number of seconds from
(1 to 99 seconds) that you want
the Lock Strike to be released.
For example 0 5 1 2 means Fail Secure Operation, with a 5
minute Tamper Siren Time, and a 12 second Lock Strike release
time.
4) System returns to Normal Mode
!
You will hear three beeps
!
The Door LED will turn off.
!
The Mode LED will turn green
Page 26
07/04
AC-G43
Mode Door
GREEN
Mode Door
GREEN
Mode Door
GREEN
GREEN
?
?
?
?
