Installation
16 AYC-Qx4 Family Installation and Programming Manual
5. To connect the unit to the desired power supply option, refer to
the relevant wiring diagrams that follow.
Figure 2 shows the wiring for the controller application using a dual
relay secured intelligent power supply.

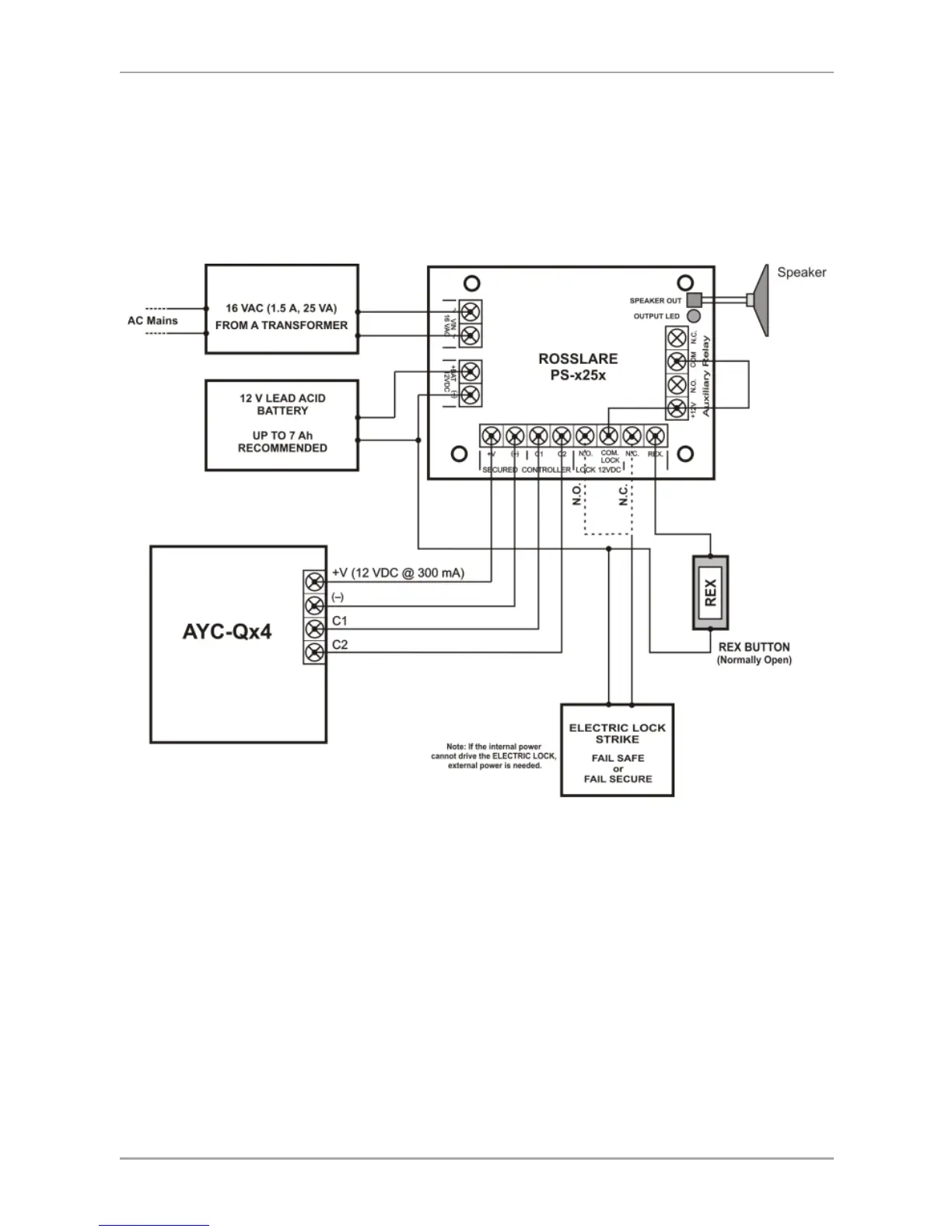

Figure 2: Controller Application Wiring Diagram
