8) Measure with an optical tachometer (Letter B in Figure 11.1-2) the RPM of the harmonic balancer,
focusing the optical beam on the reflective indicator (Letter A in Figure 11.1-2)
9) Compare the measured value with the specification in Section 2.3 (1700RPM)
10) Adjust RPM as described above to the value of idle speed indicated ± 2-3%
11) Tighten the 23 mm lock nut when the appropriate RPM is obtained (Letter A in Figure 11.1-1)
12) Close the hood

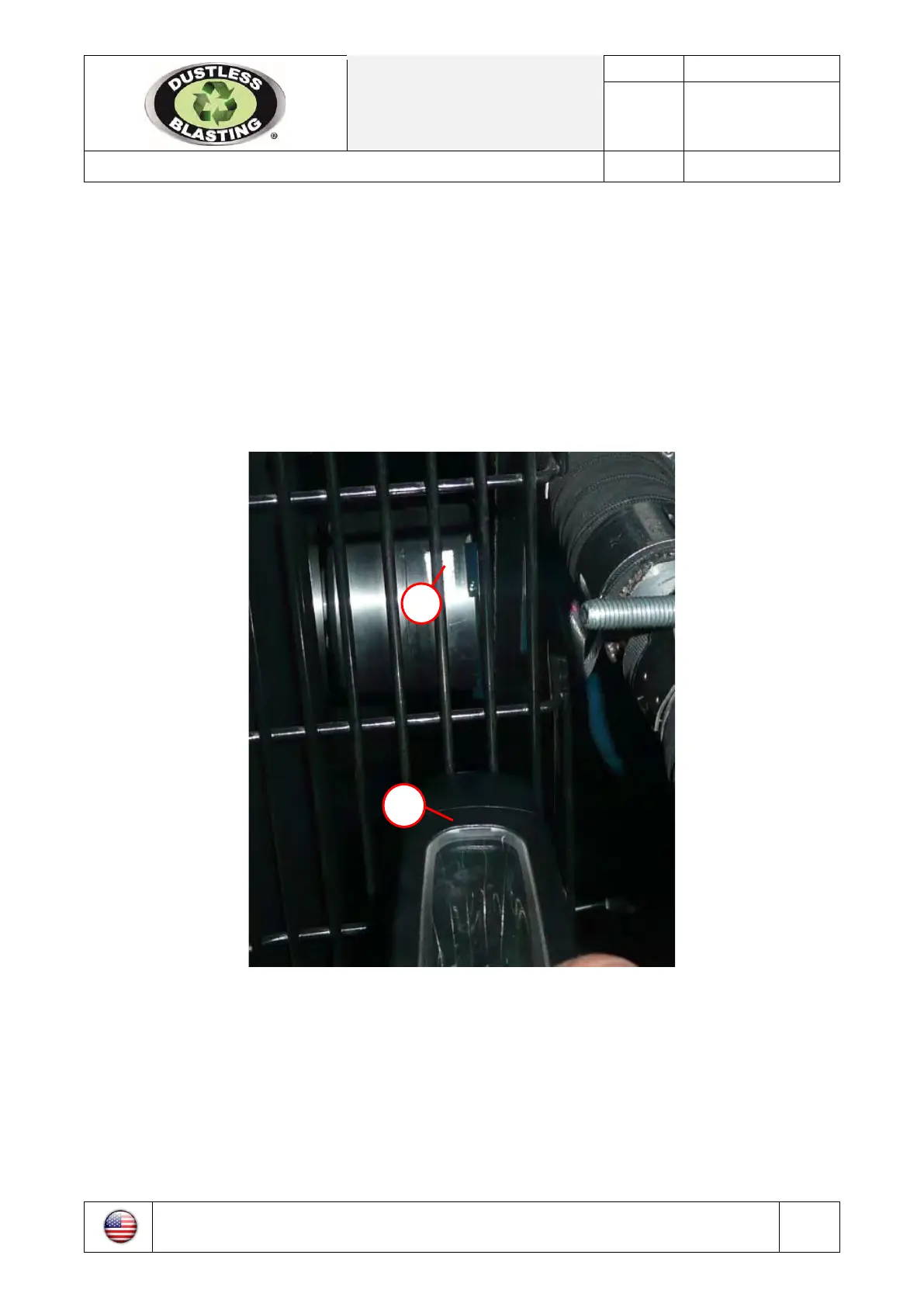

Figure 11.1-2 Reflective mark on the harmonic balancer
A
B
